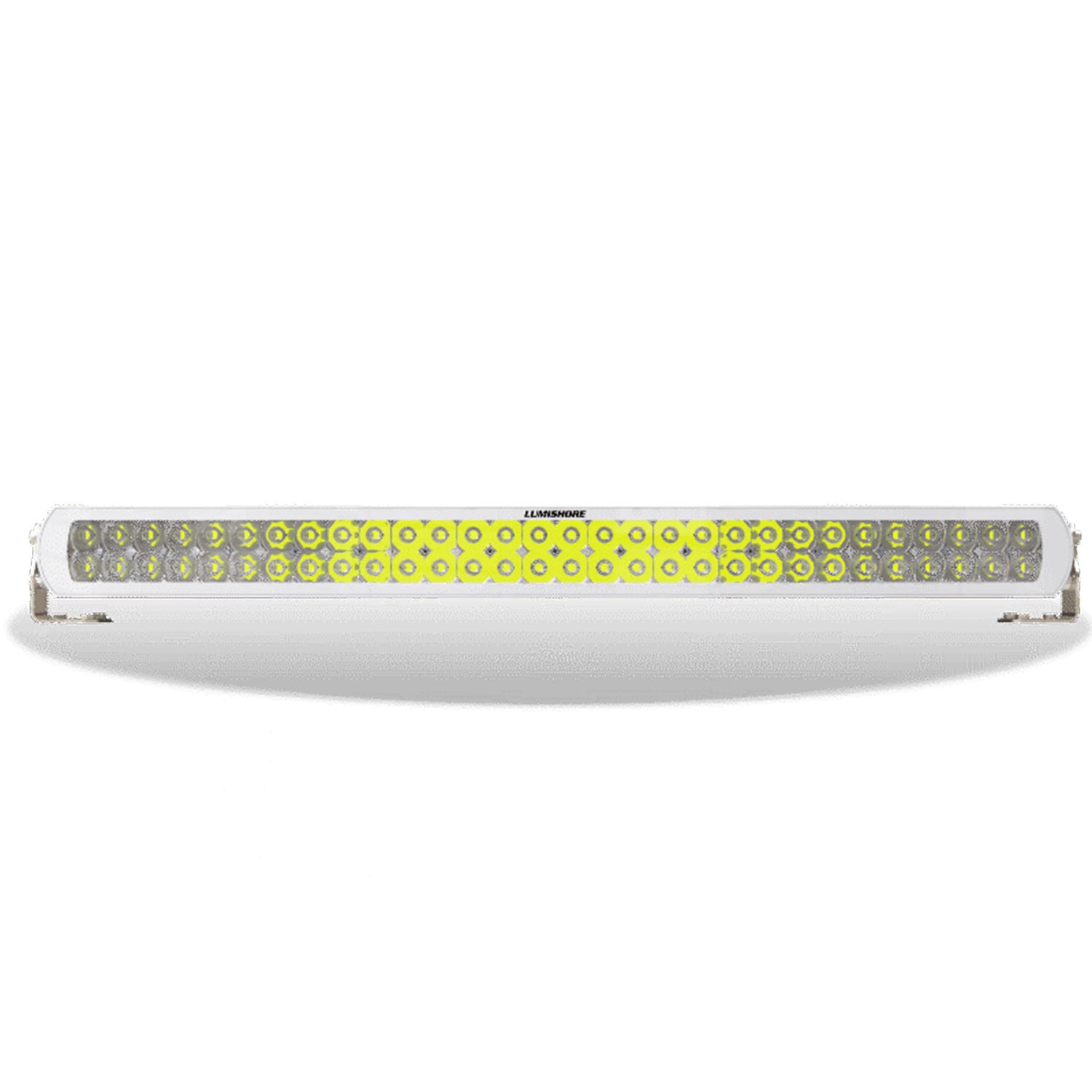

Lumishore 30 in Curved LED Light Bar, White Light, 10.5-31V DC, IP68, 23,760 Fixture Lumens, 9-32 Degree Beam

Overview

The Lumishore 010-04463-00 is a 30 inch curved above-water LED light bar that throws a wide, letterbox beam for lighting up decks, bow work areas, and dockside tie-ups. Output is rated at 23,760 fixture lumens, so you get usable white light with reach instead of a small pool right under the mount.

It runs on 10.5 to 31 V DC, which covers both 12 V and 24 V systems, and max current draw is 19.3 A at 12 V or 9.6 A at 24 V for circuit planning. The housing is IP68, with a powder-coated aluminum body and a Makrolon lens for wet, salt, and washdown conditions.

Face dimensions are 32.4 x 2.8 x 4.4 in, and the attached light cable is 50 cm (19.7 in). This size works well on a T-top, helm roof, fishing tower, or bow platform where you want forward and down-light coverage without a bulky fixture.

Key features

• 23,760 fixture lumens in white output
• 9° to 32° letterbox beam pattern (vertical to horizontal) for forward throw with deck wash
• 10.5 to 31 V DC input for 12 V and 24 V electrical systems
• Max current draw: 19.3 A at 12 V or 9.6 A at 24 V
• IP68 water ingress rating for heavy spray and washdowns
• Powder-coated aluminum body with Makrolon lens
• 2-wire power connection for basic switching; 3-wire when used with ECLIPSE or EOS-LUX Command Center control

Variants

This product is a single configuration with no listed variants.

What’s included

• One (1) curved 30 inch light bar
• Stainless steel bracket
• Fasteners

Installation and setup

Mounting is typically on hard surfaces like a T-top frame, hardtop, tower, or a bow platform where the beam can clear rails and hardware. Plan the mounting position so the light face can aim forward without shining into the helm, and use solid backing where the structure is thin to keep vibration down.

With a 50 cm (19.7 in) lead, most installs require a clean route into a chase or electronics box. Keep cable runs supported and protected from chafe, especially where they pass through aluminum or fiberglass.

Electrical and control

For a straightforward setup, wire it as a simple two-wire light to a properly rated switch and circuit protection sized for the system voltage and current draw. If you are tying it into an ECLIPSE or EOS-LUX Command Center, the wiring changes to a three-wire connection to support control functions.

The internal driver includes reverse polarity protection, in-rush current protection, soft start electronics protection, and surge protection rated at 3,000 V. Bonding is not required.

Compatibility and fit

Check available mounting width and clearance using the light face dimensions of 32.4 x 2.8 x 4.4 in, and confirm you have a cable path from the mounting location to the switch or controller. If your boat lives in saltwater or sees frequent washdowns, IP68 sealing and a powder-coated aluminum housing help keep the unit in service with less fuss.

Use cases on board

This light bar fits boats that need a strong white working light for docking, loading gear, and night fishing setups, especially when mounted high enough to spread light across the foredeck and cockpit edges. It is a good match for 12 V and 24 V systems where you want a single-color light with a beam pattern that reaches forward while still washing the deck.

Maintenance and care

Rinse with fresh water after salt exposure and wipe the lens clean to keep output consistent. Periodically check mounting fasteners and cable supports so vibration and chafe do not turn into electrical issues over time.
