Imtra - Pro Bar Light - 10-32VDC, Aluminum, Finish White, IP65 (ILLPXMW5025)
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.

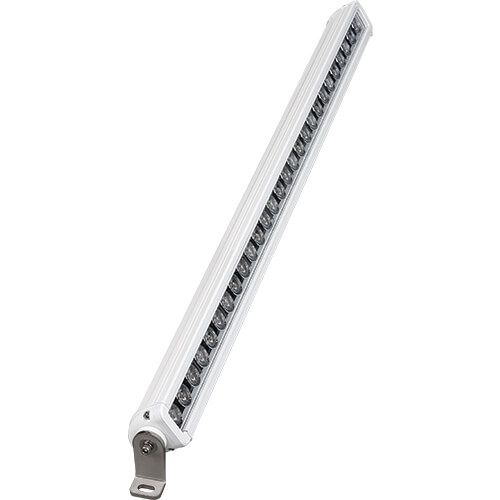

Introducing the Imtra LED Straight Bar Lights, a premium marine lighting solution that is specifically engineered to endure the harsh conditions encountered at sea. With the help of the Vision X engineering team, this product is designed to provide optimal performance and extra protection for your vessel.
The fixture is built to last with a 304 stainless-steel bracket, isolation washers, and copper circuit boards that shield it from corrosion and other harmful elements. Additionally, the tinned 18 gauge sheathed cables and marine-grade gloss coating make it even more durable. It is also equipped with CISPER25 EMC/EMI shielding, vibration/shock protection and transient voltage suppression, features that set it apart from the competition.
These fixtures are available in various beam angle configurations, from a narrow spot beam to an extra wide flood, providing ample coverage for all your needs.
We offer our exclusive engineered solutions featuring Deck Lighting Simulation & Design Services for architects and OEMs. Get in touch with our Lighting Product Manager to find out more about how we can help you design the most efficient lighting layout for your vessel.
This marine product has a low copper die-cast aluminum housing with electro deposition and an Interpon 810 Marine grade gloss powder coating for an extra layer of protection. The impact and UV resistant lens also ensures that this fixture lasts for a long time. The electronic thermal management system, 304 stainless steel brackets & hardware with isolation washers, and acrylic lens material all contribute to making it a top-of-the-line product.
This Imtra LED Straight Bar Light features a white finish, a 0-45° beam angle, and a luminous flux of ~13500 lms, making it a great choice for your vessel. It has a lifetime of 50,000 hours, an input voltage of 10-32VDC, and a maximum wattage of 195. It is also certified and compliant with CE, RoHS, IEC6247, Prop 65, SAE J-3098.
With an ingress protection rating of IP68/69K, this fixture is designed to withstand the most challenging marine environments. The approximate ship weight of this product is 15 lbs.
