Jabsco Engine Blower, 100 CFM, 115V AC, 3 in Ducting
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Jabsco AC 100 CFM 3" blower is a 115 Vac ventilation blower for moving air through 3" ducting in marine cabin spaces, lockers, heads, galleys, and diesel engine room ventilation layouts. It moves 100 ft3/min, equal to 2.8 m3/min, and uses a continuous-duty motor with thermal overload protection.
This range is for AC-powered boat ventilation where 115 Vac service is preferred over a DC blower. The reinforced plastic housing, corrosion-resistant materials, and slip-on duct connection make it practical for dry, protected onboard spaces where vibration, salt air, and restricted access matter during installation.
This blower is not ignition protected and must not be used to exhaust gasoline fumes or mounted where flammable vapors may be present.
Key features
- 100 CFM air flow for cabin odor extraction, locker ventilation, general air circulation, and diesel engine room ventilation.
- 115 Vac motor suits boats with AC service available for ventilation equipment.
- 3" ducting connection works with common marine ventilation hose and short duct runs.
- Continuous-duty motor includes thermal overload protection for longer ventilation cycles.
- Reinforced plastic housing and corrosion-resistant materials help the blower handle protected marine spaces.
- Low current draw with an optional 0.75 Amp AGC fuse noted for circuit protection.
- Slip-on inlet ducting connection keeps hose installation straightforward in tight compartments.
Variants
The product is offered in two mounting configurations for different bulkhead and duct routing layouts.
Both variants share the same 115 Vac rating, 100 CFM air flow, 3" ducting size, reinforced plastic housing, continuous-duty motor, thermal overload protection, and 5 lb weight. The main difference is how the blower mounts and how the outlet can be positioned.

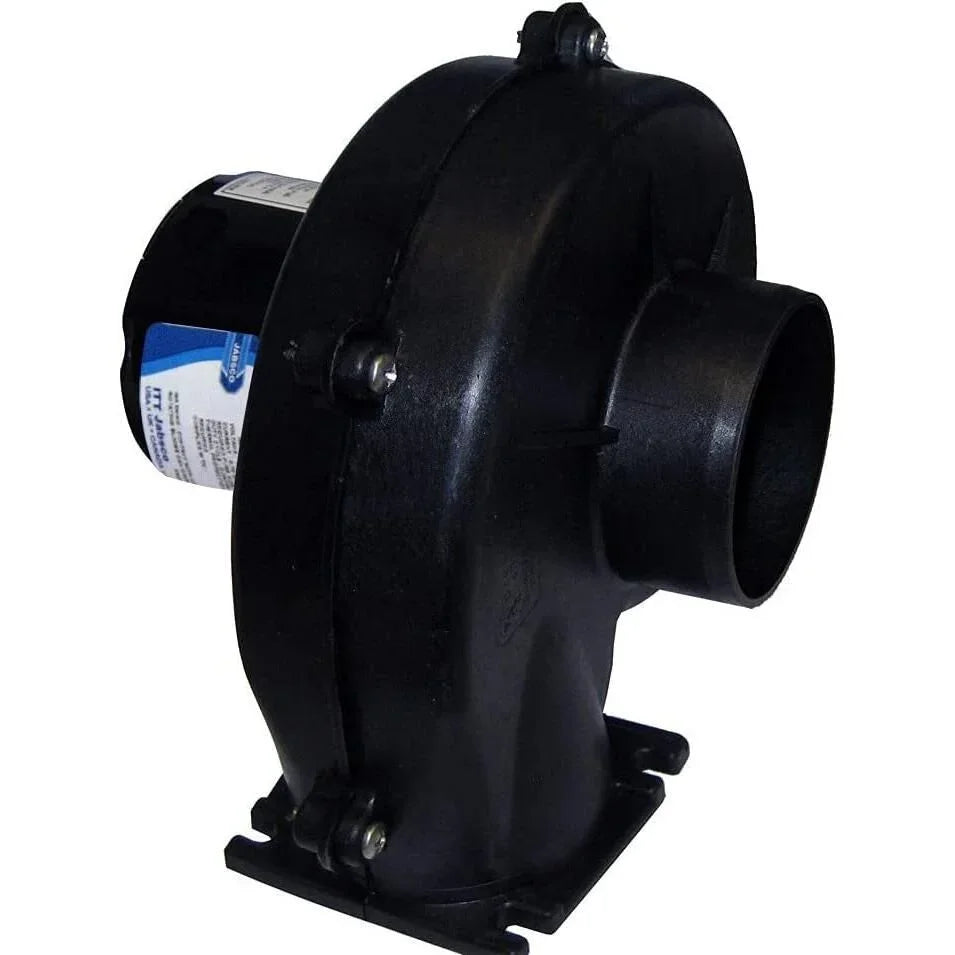

- 34744-0000, Flangemount. This version uses a flange-style mounting arrangement for installation on a flat bulkhead surface where the discharge port can pass through or align directly with the vent path.

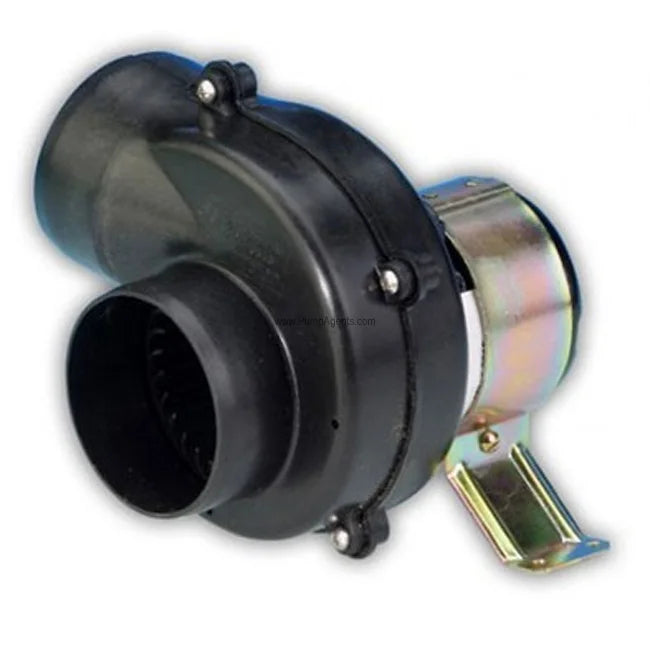

- 34754-0000, Flexmount. This version uses a universal flexmount bracket that lets the outlet face any direction, which helps when duct routing needs to work around bulkheads, equipment, or limited service space.
Installation and fit
Install the blower on a flat bulkhead surface in a dry, protected location. Keep it away from spray, deck wash, and heat above 130°F, since excess heat can distort the blower wheel or housing.
Use the shortest practical duct route and limit bends in the 3" ducting to reduce airflow loss. A suitable discharge fitting should be used so wind direction at the vent does not affect blower static pressure.
Electrical and safety notes
Wiring should be completed by a qualified electrician and should follow USCG requirements. A minimum 16 gauge THW wire is specified for runs up to 50 feet from the power source, with the optional 0.75 Amp AGC fuse placed near the power source.
A switch with a minimum 5 Amp rating may be used in the ungrounded conductor for blower control. The neutral conductor connects directly to the blower motor, and the ground wire should be tied into the vessel common ground.
Use cases on board
This blower fits boats that need AC-powered ventilation for odor removal in heads, galleys, lockers, and other enclosed cabin spaces. It can also support engine room ventilation on diesel-powered vessels where a non-ignition-protected AC blower is appropriate for the installation area.
