Imtra - Tide PowerLED Downlight - 10-40VDC, White Stainless Steel, Cool White, 3.2W IP40 (ILIM58100)
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Introducing the ILIM58100, a Tide PowerLED Downlight perfect for any marine vessel. With its 2-wire power and dimming, replacing existing legacy (halogen) spots has never been easier. No need to run extra wires, this downlight eliminates the need for remote driver installation with its integrated drive electronics.
Say goodbye to annoying artifacts or distracting hot spots with Tide's carefully designed optics. Its robust thermal management system ensures maximum life with minimal lumens depreciation over its expected working life of 50,000+ hrs. Its stylish base with built-in on/off switch is a good choice for general lighting on smaller boats or as undercabinet lighting for any size vessel.

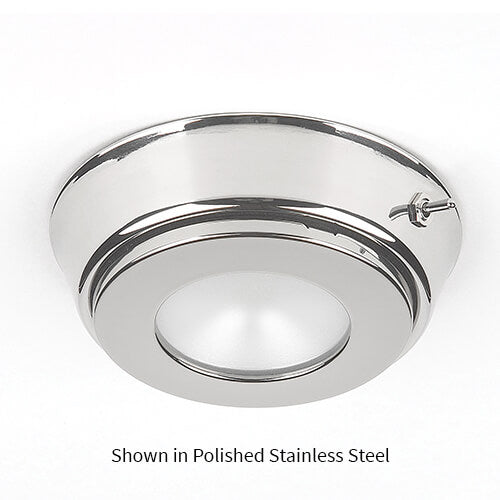

Crafted with a black electrophoretic aluminum housing finish and a twist-on round stainless steel bezel, this Tide PowerLED Downlight has a convenient 2-wire hook-up and is available in bi-color models. Its integrated current controlled drive circuitry makes it stand out from the rest.
This model has an output color of cool white with a lifetime of 50,000 hrs. It is Class III certified and compatible with the ILIM80130 and ILIM80140 dimmer. Its momentary push-button dimmer control interface makes it easy to use.

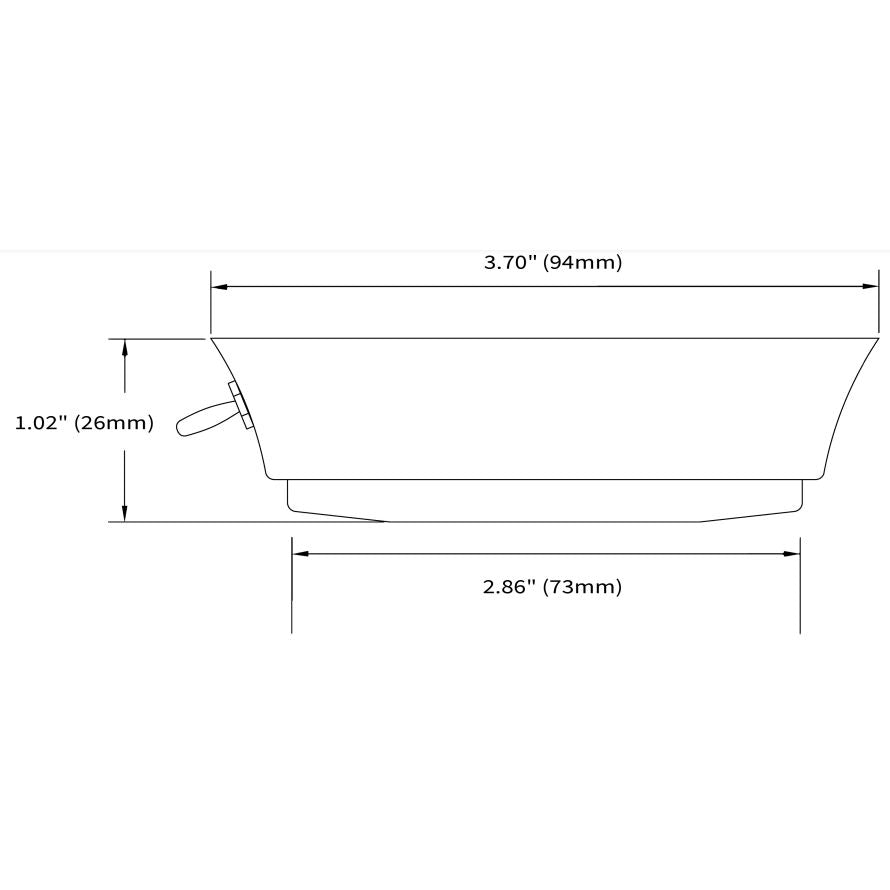

With a trim ring (bezel) dimension of 2.86" (73mm) diameter and a trim ring (bezel) finish of white, this downlight is equivalent to a 10W halogen bulb. Its input voltage range is 10-40VDC and it has a frosted glass lens material. Its power consumption is 3.2W with an ingress protection rating of IP40 (applies only to frontal water exposure, i.e. exposed surface).
This downlight has a dimming range of 5-100% and a beam angle of 90°+. Its luminous flux is 141 lms with an integrated driver. It is designed for interior surface-mount installation and has electrical protections for reverse polarity, transient & spike protection.
The Tide PowerLED Downlight has a correlated color temperature (CCT) of 6000K (White LED) and a color rendering index (CRI) of 85. Its ingress protection rating (IP) is between IP20-IP55, making it a reliable and durable choice for any marine vessel.
