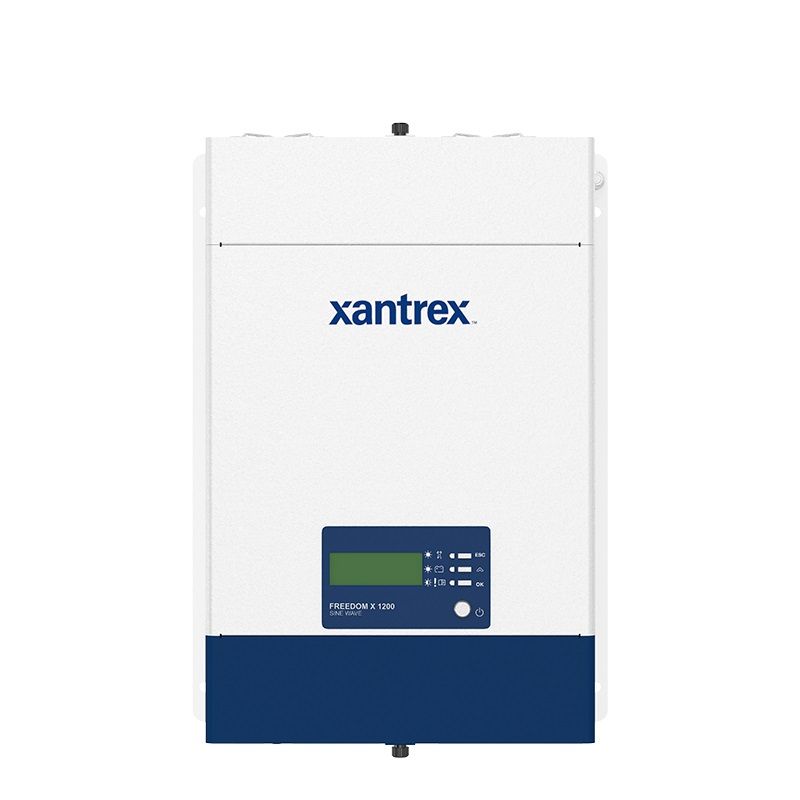

Xantrex - Freedom X Pro 1200 Inverter - 1000 Watt, 120AC Output, 12VDC Input
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Reliable Power for Marine Applications
The Xantrex Freedom X Pro 1200 is a high-performance 1000-watt inverter designed for marine and mobile applications. Built with a rugged, industrial-grade metal casing and conformal-coated circuit boards, this inverter ensures durability and resilience in demanding environments. It delivers true sine wave output, making it ideal for powering sensitive electronics on board. The built-in transfer switch allows seamless switching between shore power and battery power, while the low battery voltage shutdown helps protect your power system. With quick-connect AC terminals and pre-wired pigtail cables, installation is fast and straightforward.
Advanced Technical Features
The Xantrex Freedom X Pro 1200 is engineered for efficiency and reliability. It offers a peak surge rating of 2400 watts, ensuring stable operation of power-intensive devices. The inverter operates with a high peak efficiency of over 91%, maximizing battery life and energy savings. A built-in communication card enables seamless integration with third-party monitoring and control systems via RV-C connectivity.
Technical Specifications
- Continuous Output Power: 1200 W
- Surge Power Rating: 2400 W
- Output Voltage Range: 110–125 VAC
- Output Frequency Regulation (User Configurable): 50/60 Hz
- Output Waveform: True Sine Wave
- Efficiency (Full Load): > 86%
- Peak Efficiency: > 91%
- No-Load Input Power: < 10 W
- Off Mode Current Draw: < 4 mA
- AC Input Operating Voltage Range: 95–130 VAC
- AC Transfer Relay: 30 A
- DC Input Operating Voltage Range: 10.5–16.5 VDC
- Battery Voltage (Nominal): 12 VDC
- Low Battery Cut-Out: Adjustable from 10.5–12.1 VDC
- Transfer Time: 10–20 ms
Product Dimensions
- Size: 14.8 x 10.4 x 3.5 inches (376 x 263 x 91 mm)
- Weight: 10.4 lbs (4.7 kg)
Key Features & Benefits
- True Sine Wave Output – Provides clean and stable power, ideal for sensitive electronics.
- Industrial-Grade Durability – Heavy-duty metal casing and conformal-coated circuit boards for long-term reliability.
- High Surge Capability – 2x surge rating (2400 W) for running demanding appliances.
- Built-in Transfer Switch – Seamlessly switches between shore and battery power.
- RV-C Connectivity – Allows easy integration with third-party monitoring and control displays.
- Quick Installation – AC quick-connect terminals and pre-wired pigtail cables simplify the setup process.
- Low Battery Voltage Shutdown – Protects batteries from deep discharge.
Perfect for marine applications, the Xantrex Freedom X Pro 1200 is a reliable and efficient solution for onboard power needs.
