Imtra - Tide PowerLED Downlight - 10-40VDC, White Stainless Steel, Neutral White, 3.2W, IP40 (ILIM57200)
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Introducing the ILIM57200, a marine-grade Tide PowerLED Downlight that features advanced lighting technology and convenience in installation. The Tide PowerLED Downlight is designed with 2-wire power & dimming system that makes it easy to replace existing halogen spots without the need to run extra wires. Its integrated drive electronics eliminate the need for remote driver installation.
The Tide PowerLED Downlight provides fully blended illumination without distracting hot spots or annoying artifacts, thanks to its carefully designed optics. It also boasts a robust thermal management system that ensures maximum life with minimal lumens depreciation over its expected working life of 50,000+ hrs.

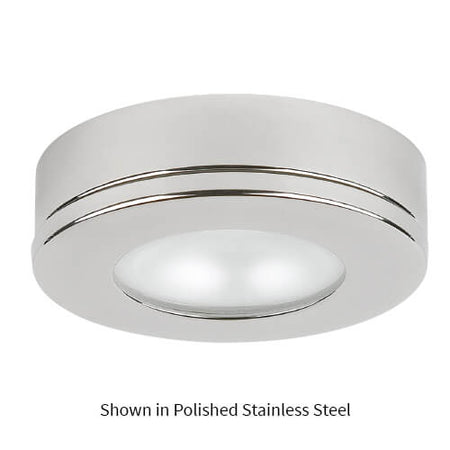

This model is perfect for general lighting on smaller boats or as undercabinet lighting for any size vessel. It features a "puck" style round base for convenient surface mounting, and it comes with a twist-on round stainless steel bezel for a sleek and polished look.
The Tide PowerLED Downlight also offers single or bi-color dimming when paired with Imtra's single or dual channel PWM dimmer module. Bi-color models can dim using a single momentary switch, providing added convenience to its users.
This downlight is made with black electrophoretic aluminum housing finish/material and is compliant with CE-EMC and ROHS certifications. It is a Class III product with an ingress protection rating of IP40, which applies only to frontal water exposure, i.e. exposed surface.
With a correlated color temperature (CCT) of 4000K (White LED) and a color rendering index (CRI) of 85, the Tide PowerLED Downlight produces a neutral white output color that is perfect for creating a warm and inviting atmosphere in your boat's interior.
The Tide PowerLED Downlight is equipped with an integrated current controlled drive circuitry and offers a dimming range of 5-100%. It has a beam angle of 90°+ and produces 130 lumens of luminous flux, with a power consumption of 3.2W.

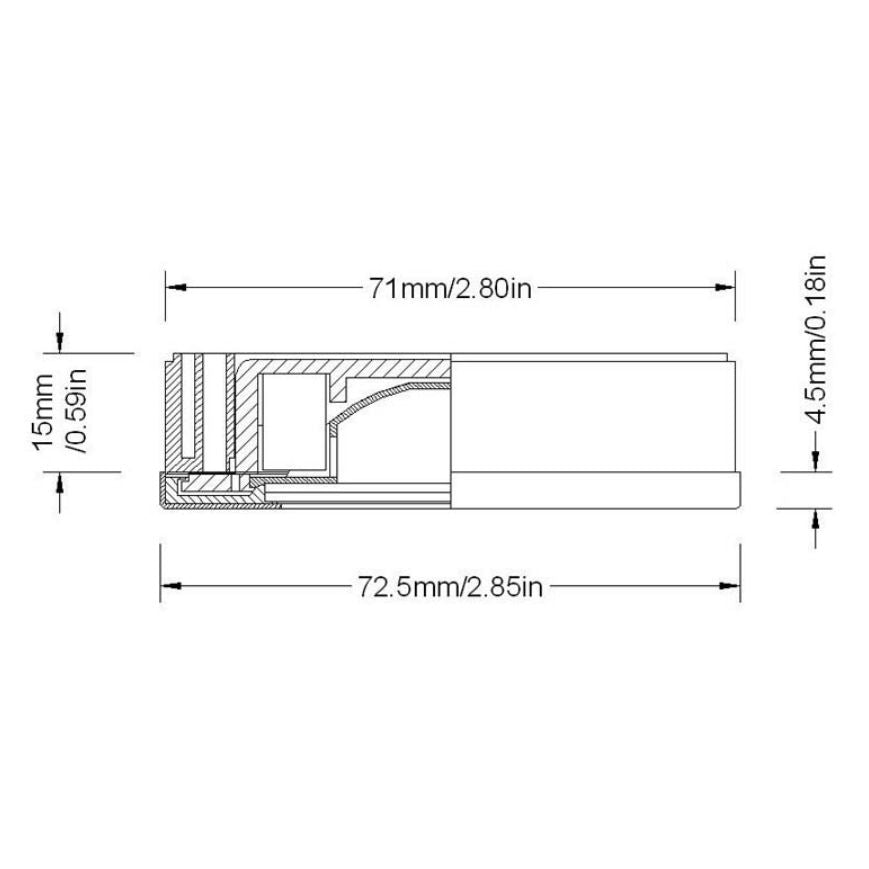

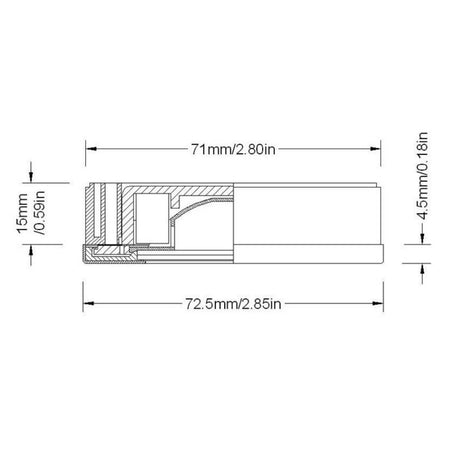

Its lens is made of frosted glass, and it has a trim ring (bezel) dimension of 2.86" (73mm) dia, with a white finish/material. The Tide PowerLED Downlight is compatible with ILIM80130 and ILIM80140 dimmers, which feature a momentary push-button control interface.
Finally, the Tide PowerLED Downlight comes with electrical protections, including reverse polarity, transient & spike protection. Its ingress protection rating ranges from IP20-IP55, making it a durable and reliable marine lighting solution.
