SI-TEX - T2060A 10.4" Color Radar - With 6Kw 6' Open Array
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
High-Performance Marine Radar for Enhanced Navigation
The Si-Tex T2060A-6 is a powerful 10.4-inch color radar designed to provide unmatched precision and reliability in marine navigation. Engineered with a 6kW open array system and a robust 6.5-foot antenna, this radar delivers superior target detection, even in challenging conditions. Its dual-speed antenna operates at 48 RPM, ensuring high-speed performance ideal for river and coastal navigation. The split-screen display allows simultaneous long- and short-range target tracking, offering an enhanced situational overview.
For increased safety and efficiency, the True-Trail function identifies moving targets, while interference rejection and target expansion features help maintain clarity in dense traffic areas. Additionally, an optional 50-target Automatic Tracking Aid (ATA) is available, further improving tracking accuracy.
Precision Technology and Key Features
- Dual-Speed Antenna: Operates at 24 or 48 RPM for flexible speed adjustments.
- Split-Screen Display: Simultaneously tracks long- and short-range targets.
- True-Trail Function: Clearly identifies moving targets to improve navigation awareness.
- Interference Rejection & Target Expansion: Enhances clarity by reducing noise and improving target definition.
- Standard AIS Interface: Tracks up to 200 targets for comprehensive monitoring.
- Multiple Display Modes: Choose from Heads Up, North Up, Course Up, and Waypoint Up for customized viewing.
Technical Specifications
Radar System:
- Antenna Type: 6.5' Open Array
- Peak Power Output: 6kW
- Output Frequency: 9410 ± 30MHz
- Beam Width: 1.2° Horizontal, 22° Vertical
- Rotation Speed: 24 or 48 RPM
- Pulse Width Options: 0.08, 0.15, 0.3, 0.5, 1 µsec
- IF Frequency: 60MHz
- Range Accuracy: Better than 8m or 1% of range scale selected
- Minimum Detecting Distance: 25m
Display Unit:
- Screen Size & Type: 10.4" TFT Color LCD
- Resolution: 480 x 640 pixels
- Power Requirements: 10.8 - 31.2V DC
- Power Consumption: 110 watts or less
- Display Modes: Heads Up, North Up*, Course Up*, Waypoint Up**
(*Requires external heading, speed, and/or GPS compass input. **Requires waypoint data input.)
Product Dimensions
- Display Unit: 12 19/32" x 12 19/32" x 5 39/64"
Included in the Box

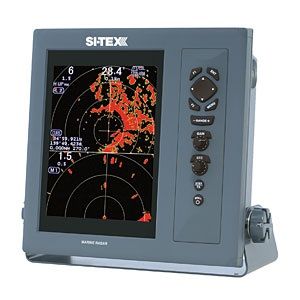

- MRD-104 Display

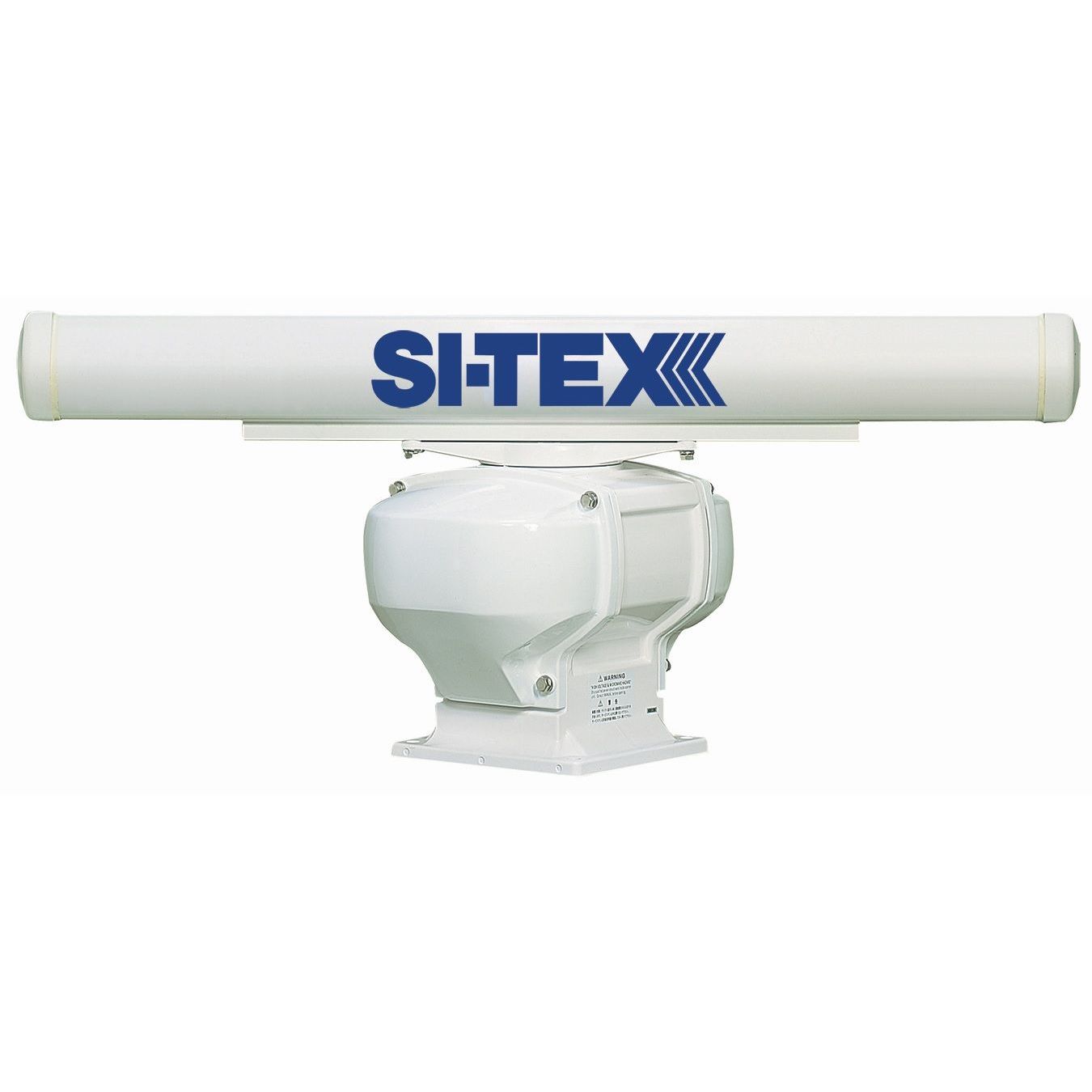

- RB717A - Pedestal 6kW
- RW701A-06 - 6.5' Antenna
- 242J159098A - 15M Cable
- DC Power Cable
- Quick Reference Guide
- Operation Manual
Ideal for both commercial and recreational marine applications, the Si-Tex T2060A-6 radar system delivers high-performance detection and tracking capabilities, ensuring a safer and more efficient navigation experience.
