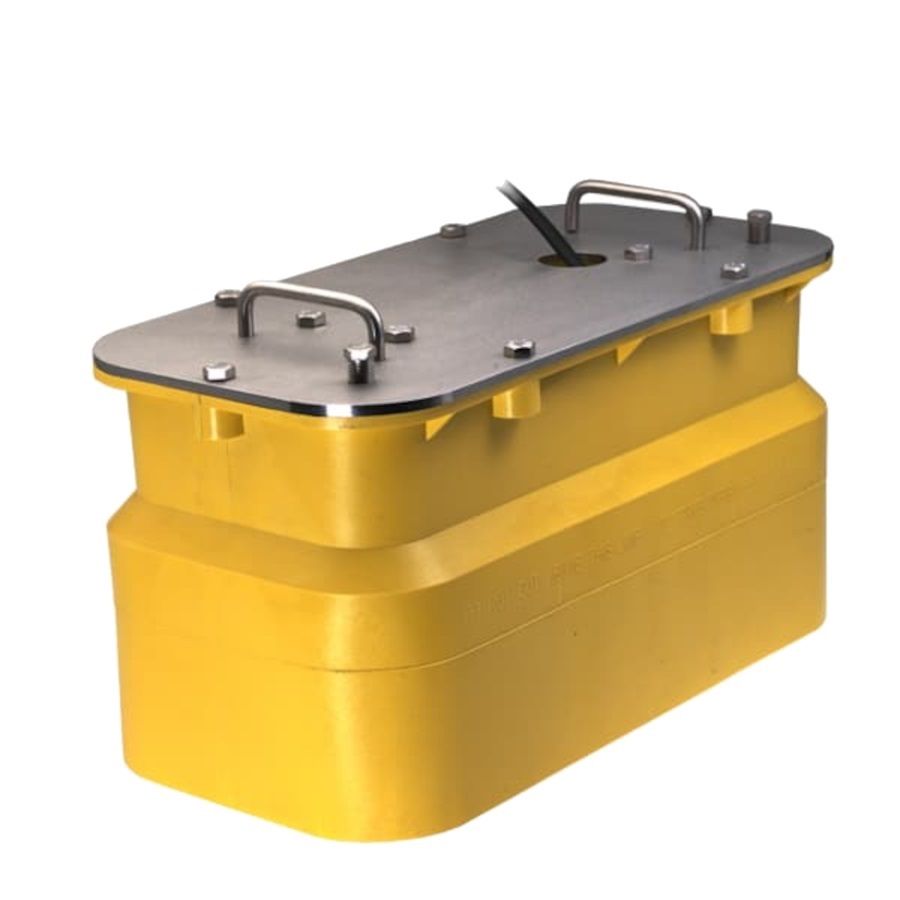

Airmar - R599C-LH In Hull 3kW Low/High CHIRP Transducer

Powerful Deep-Water Performance with CHIRP Technology

The Airmar R599C-LH is a high-performance in-hull transducer designed for captains who demand the best in deep-water target resolution and bottom discrimination. With an impressive power range of 2 to 3 kW, this transducer delivers exceptional depth capability while maintaining excellent target separation at all depths. Its CHIRP technology covers a broad frequency range, enhancing fish detection and increasing overall sonar performance.

The R599C-LH features a twenty-four element, low-frequency array operating between 28 and 60 kHz, providing superior deep-water penetration. Simultaneously, its high-frequency ceramic element, operating between 130 and 210 kHz, offers narrow beamwidths for outstanding target resolution and precise bottom detail. The transducer is housed in a durable urethane casing and comes with a plastic mounting tank for easy in-hull installation, making it an ideal solution for those who prefer not to drill into their hull.

Technical Specifications

• Power Rating: 2-3 kW
• Frequency Band: Low-High CHIRP
• Low Frequency: 28-60 kHz
• Low Frequency Beamwidth: 23° to 9° (port-starboard), 11° to 5° (fore-aft)
• High Frequency: 130-210 kHz
• High Frequency Beamwidth: 8° to 4°
• Maximum Depth:
• Low Frequency: 3,048 m (10,000')
• High Frequency: 457 m (1,500')
• Mounting Style: In-Hull
• Housing Material: Urethane
• Hull Compatibility: Solid fiberglass only
• Deadrise Range: 0° to 22°
• Cable Length: 15 m (49')
• Connector: Bare Wire
• Maximum Vessel LOA: 12 m (40') and above

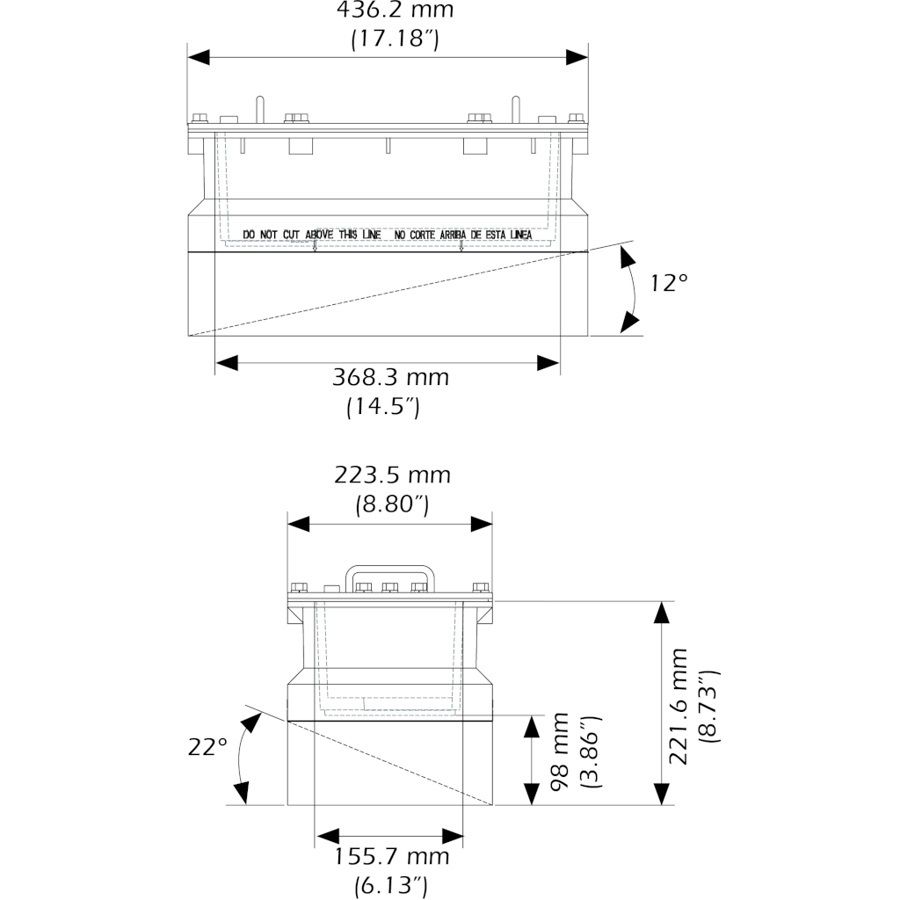

Product Dimensions

• Cable Length: 15 m (49')
• Maximum Deadrise: Up to 22° (short side), up to 12° (long side)

Highlights

• Advanced CHIRP technology for superior fish detection and bottom detail
• Broad frequency coverage including 50 and 200 kHz for versatile performance
• No need to drill holes in the hull with in-hull mounting style
• Ideal for deep-water applications with a maximum depth of 10,000 feet
• Durable urethane housing and plastic mounting tank for reliable performance
• Exclusive Xducer ID® technology for optimal transducer performance

What’s in the Box

• R599C-LH Transducer with 15m cable
• Mounting Tank
• Gasket
• Plate
• Hardware
