Lumishore LUX 4in Flush-Mount LED Flood Light, Requires LUX Control Module, CRGBW Color Change, 10.5-31V, IP68, 1050 Fixture Lumens, 70-90 Deg Oval Beam, White Finish
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

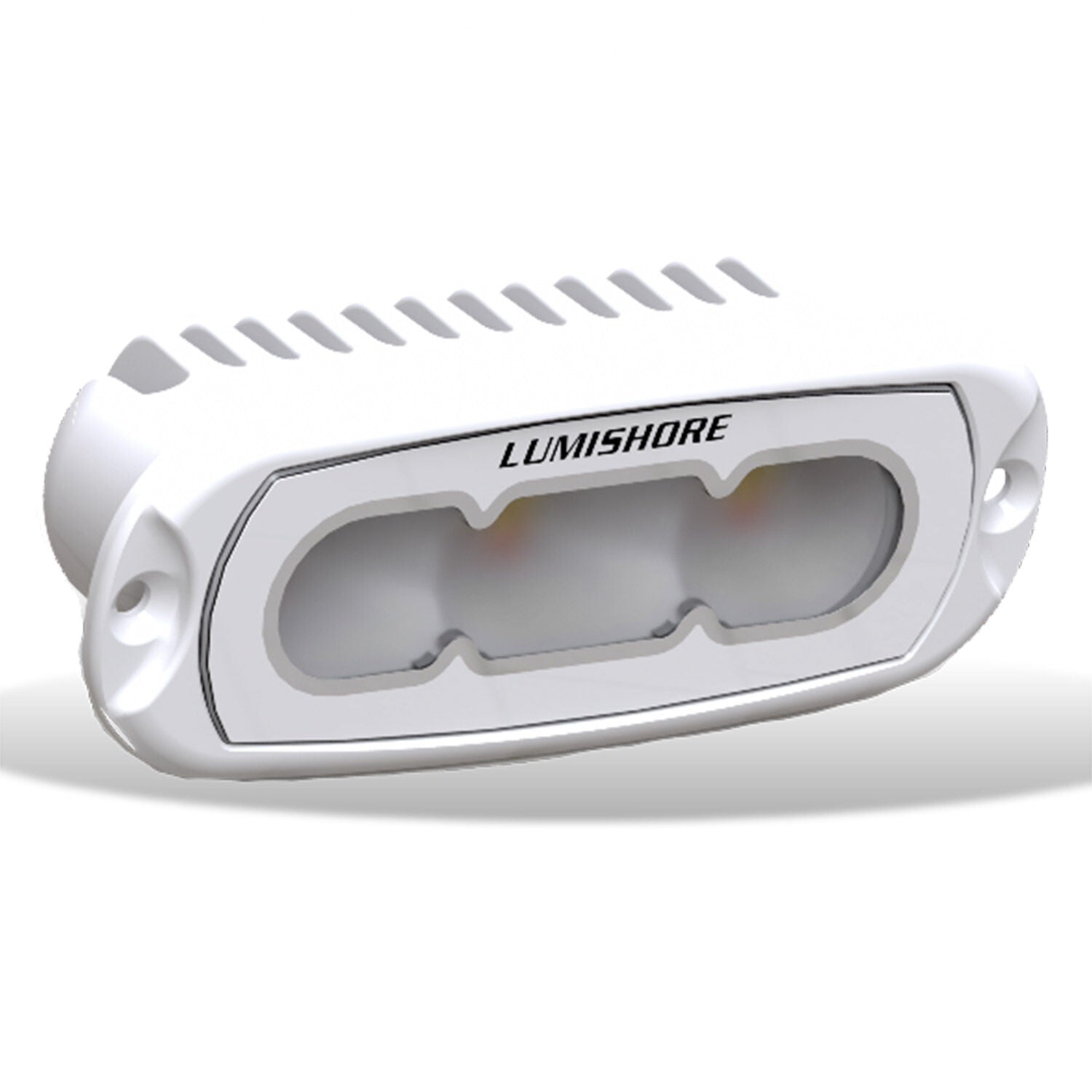

The Lumishore 010-04500-00 is a 4 inch flush-fit LED flood light for boats that runs on 10.5 to 31 V DC and gives full CRGBW control, including tunable white from 2700K to 6500K plus red, green, and blue.
The beam is a wide oval (about 70 to 90 degrees), which spreads light across a cockpit, deck, or swim platform without needing multiple narrow spots. The housing is rated IP68 for wet mounting locations and routine washdowns.
This light is a strong fit for owners who want one fixture that can handle warm task light, cooler cleanup light, and color accents, as long as the control method matches the rest of the onboard lighting system.
Key features
- CRGBW output with tunable white from 2700K to 6500K plus RGB color channels
- Wide oval beam, about 70 to 90 degrees, for area lighting on deck and in the cockpit
- 10.5 to 31 V DC input for 12 V and 24 V electrical systems
- Max current draw: 1.7 A at 12 V and 0.9 A at 24 V
- IP68 water ingress protection for wet mounting locations
- Powder-coated aluminum body with a frosted lens that helps blend colors and soften glare
- Simple 3-wire connection with a multi-channel internal driver
- Output listed at 2,360 lumens (1,050 fixture lumens)
- Typical LED life listed at 50,000+ hours
Installation and wiring
Flush-fit mounting means cutting a hole and fastening the flange to a solid surface. Dry-fit first to confirm clearance behind the panel for the body and cable bend, then bed the flange with marine sealant so water does not migrate into the core.
Power it from a properly fused DC circuit that stays within the 10.5 to 31 V input range. Use tinned marine wire and heat-shrink sealed connections, and route the cable away from sharp edges, hinge points, and high-heat areas.
Control and lighting behavior
White output can be tuned from warm (2700K) to cool (6500K), and the RGB channels let you set steady colors when you want a different look on deck or less glare at night. Control is supported through an EOS-LUX Command Center or a customer-supplied momentary switch, depending on how the boat is wired.
Materials and care
The body is powder-coated aluminum with a frosted lens, which holds up well in exposed mounting spots when you keep up with basic care. Rinse with fresh water after heavy salt spray, and avoid aggressive solvents or abrasives on the lens.
If the fixture is mounted where it will see frequent spray, leaving a small service loop in the wiring helps later inspection and resealing without having to cut and re-terminate cables.
