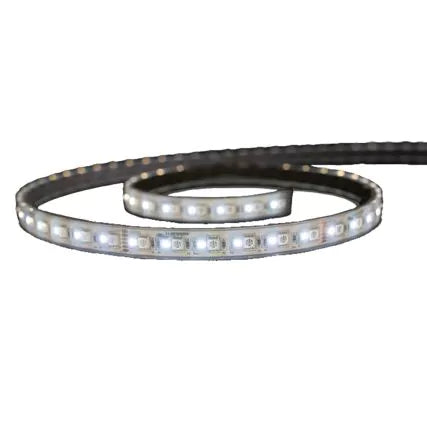

Lumishore ECLIPSE SL100 LED Strip Light, 5m, Blue/White, 12V, IP68

Overview

The Lumishore 010-04485-00 is a 5 m dual-color strip light that lets you switch between blue and white light (5000 K white).

It runs on 12V DC systems only (10 to 15V DC). The strip is IP68-rated, fully encapsulated and potted, and measures 10.8 mm wide by 4.0 mm thick, so it fits into tight reveals under gunwales, coamings, and cabinetry.

For circuit planning, allow up to 0.5 A per meter (6 W/m). On the dual-color version, only one color channel should be powered at a time.

Key features

• 5 m strip length
• Switchable blue and white output, with white at 5000 K
• 12V DC only supply range (10 to 15V DC)
• Up to 0.5 A per meter (6 W/m) for load calculations
• IP68 ingress protection with fully encapsulated, potted construction
• Low-profile 10.8 mm x 4.0 mm cross section for narrow mounting spaces
• Cut to length in 50 mm steps, then seal the cut end before installation
• Simple 2-wire installation with control via an on/off/on switch or an Eclipse Command Center

Installation and setup

Lay the strip out straight before mounting and avoid twisting or bending it in the horizontal axis. Keep the bend radius to at least 50 mm and bend only in the vertical axis. For runs over 1 m, it helps to have a second person hold and uncoil the reel so the strip does not kink while you place it.

If trimming to fit, cut only at the marked cut points, then seal the cut end and allow the sealant to cure fully before handling. When using the adhesive backing, clean the mounting surface thoroughly and press along the edges of the strip rather than over the LEDs.

This strip can be installed indoors or in wet areas, but it is not intended for locations where it will be permanently submerged.

Electrical and control notes

Use a properly fused 12V feed and keep supply voltage within 10 to 15V DC. With dual-color wiring, do not connect both the blue and white channels so they can be on at the same time.

Basic switching supports on/off control and color selection. When used with an Eclipse Command Center, the same strip can also be dimmed and managed in zones where that system is installed.

Compatibility and fit

The 10.8 mm x 4.0 mm profile suits trim channels, toe-kicks, and other shallow recesses where you want light without a bulky housing. Plan your run around the full 5 m length and the 50 mm cut increments so your endpoints land cleanly at a cut point.

Use cases on board

Blue and white switching works well for cockpit and helm accent lighting, under-gunwale glow on fishing boats, and cabin courtesy lighting where you want a softer night option alongside neutral white. It is a good match for boats wired on 12V DC that need low-profile accent lighting in areas that see spray and routine washdowns.

Maintenance and care

Rinse salt residue when practical and avoid harsh chemical cleaners on the strip or freshly sealed ends. If the strip has been cut and sealed, check the sealed end during routine inspections, especially in high-splash locations.
