SI-TEX - T2041A 10.4" Color Radar - With 4Kw 25" Dome
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
High-Performance Dual-Speed Radar with 10.4" Color Display
The Si-Tex T2041A 10.4" Color Radar is designed for precision marine navigation, offering a powerful 4kW output and a 24" radome scanner. With advanced dual-speed rotation at 24 or 48 RPM, this radar system ensures exceptional performance in high-speed and river operations. The split-screen capability allows users to monitor both long-range and short-range targets simultaneously, enhancing situational awareness in dynamic marine environments.
Key features include True-Trail Function, which accurately identifies moving targets, and an integrated AIS interface module capable of tracking up to 200 targets. Additional functionalities such as Interference Rejection, Target Expansion, and True/Relative Bearing provide enhanced navigation and collision avoidance capabilities.
Technical Specifications
Radar Scanner
- Type: 24" Radome
- Peak Power Output: 4kW
- Output Frequency: 9410 ± 30MHz
- Beam Width: 3.9° Horizontal, 25° Vertical
- Rotation Speed: 24 or 48 RPM
- Pulse Width Options: 0.08, 0.15, 0.3, 0.5, 1 µsec
- IF Frequency: 60MHz
- Range Accuracy: Better than 8m or 1% of the selected range scale
- Minimum Detecting Distance: 25m
Display Unit
- Screen Size & Type: 10.4" TFT Color LCD
- Resolution: 480 x 640 pixels
- Display Modes: Heads Up, North Up*, Course Up*, WPT Up**
- Power Requirement: 10.8 - 31.2V DC
- Power Consumption: 80 watts or less
* North Up and Course Up modes require heading, speed, and position signals from external equipment such as a GPS compass.
** WPT Up mode requires waypoint data input.
Product Dimensions
- Display Unit Dimensions: 12 19/32" x 12 19/32" x 5 39/64"
Highlights
- Dual-speed 48 RPM capability for high-speed and river operations
- Split-screen display for simultaneous long- and short-range tracking
- True-Trail Function to distinguish moving targets
- Integrated AIS interface module for tracking up to 200 targets
- Optional 50-target Automatic Tracking Aid (ATA)
- Advanced navigation features including Interference Rejection, Target Expansion, and Parallel Index
What's in the Box

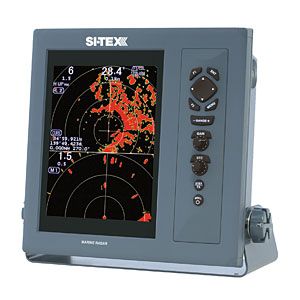

- MRD-104 Display

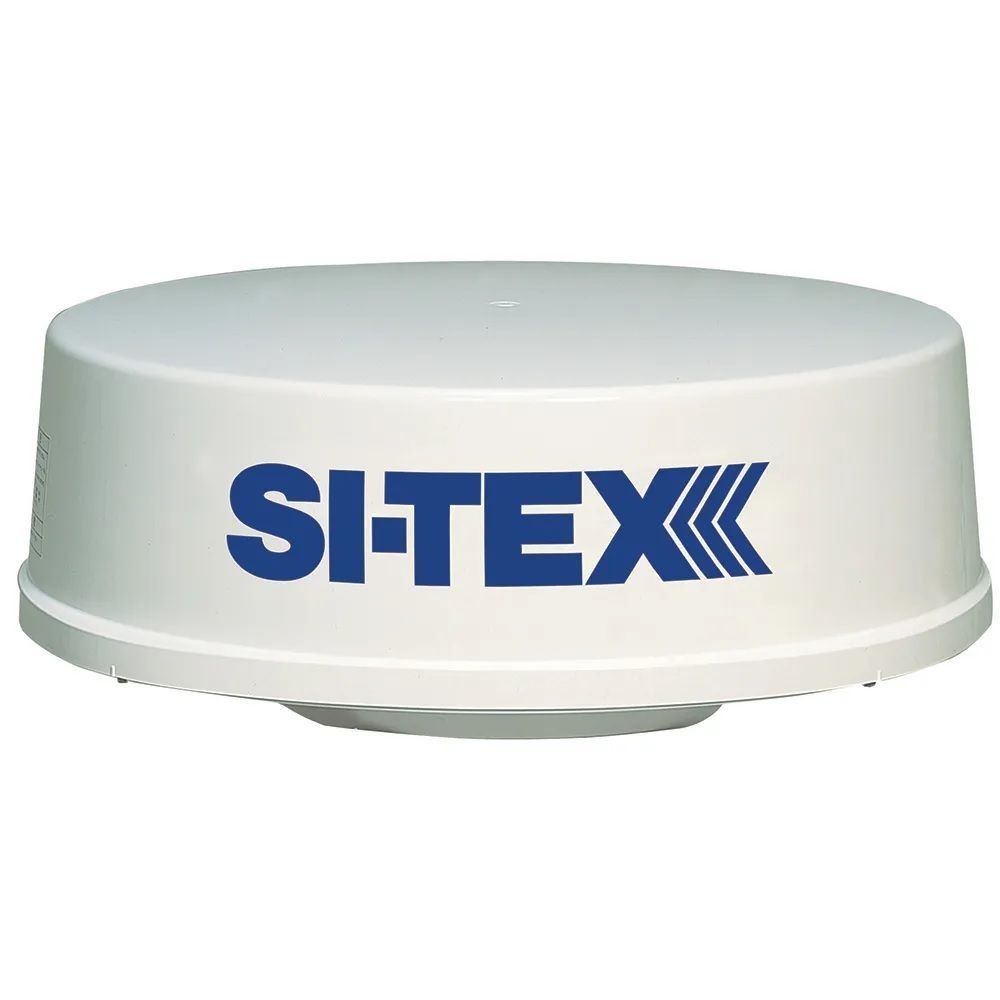

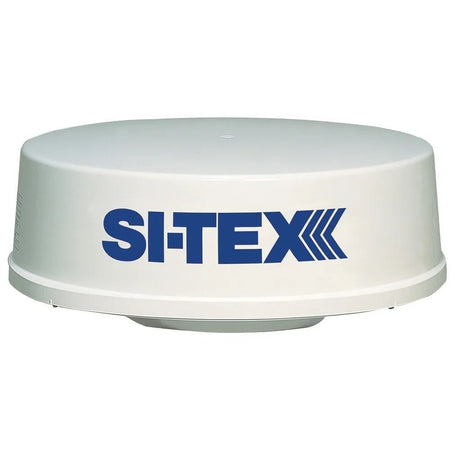

- RB715A- 24" Radome
- 10M Cable (242J159098A)
- DC Power Cable
- Quick Reference Guide
- Operation Manual
This radar system is built for serious mariners who require reliable, high-precision tracking and navigation capabilities in all marine conditions.
