Lumitec Nevis LED Engine Room Light, 10-30V, IP67, Ignition Protected, Intrinsically Safe
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

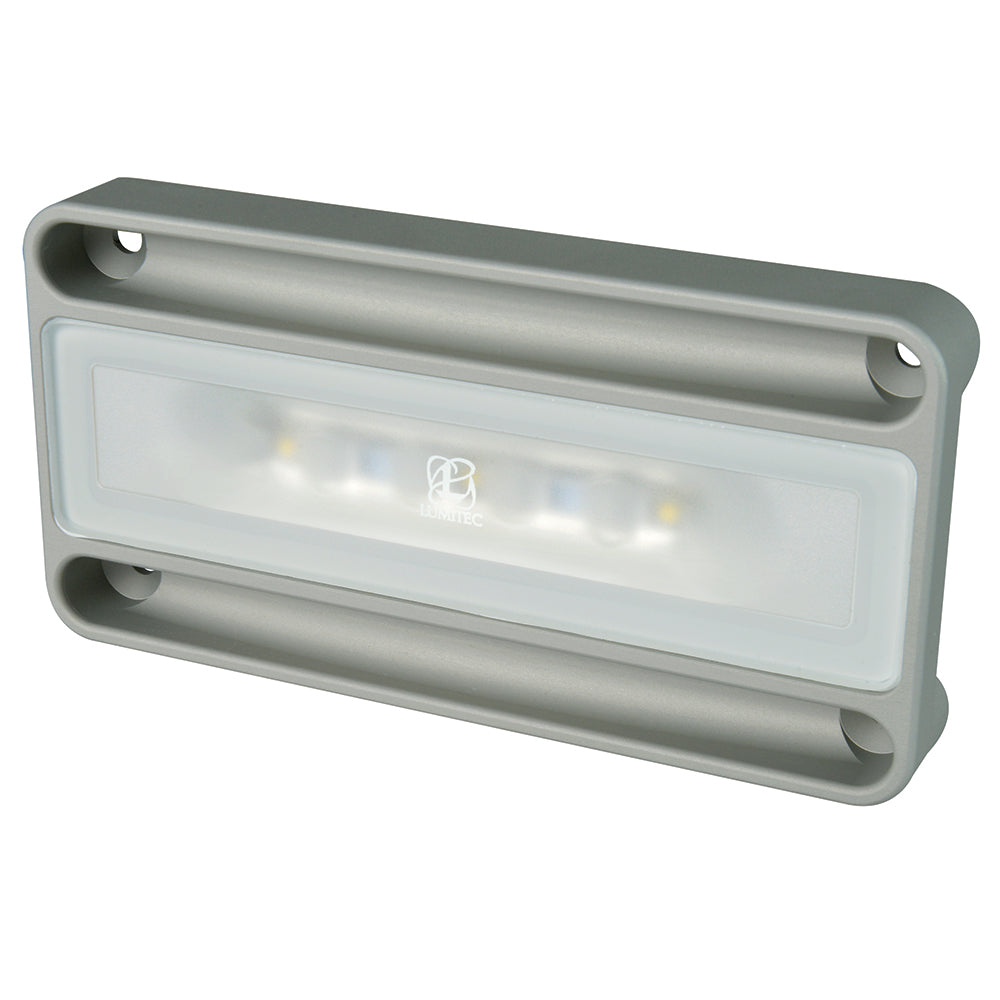

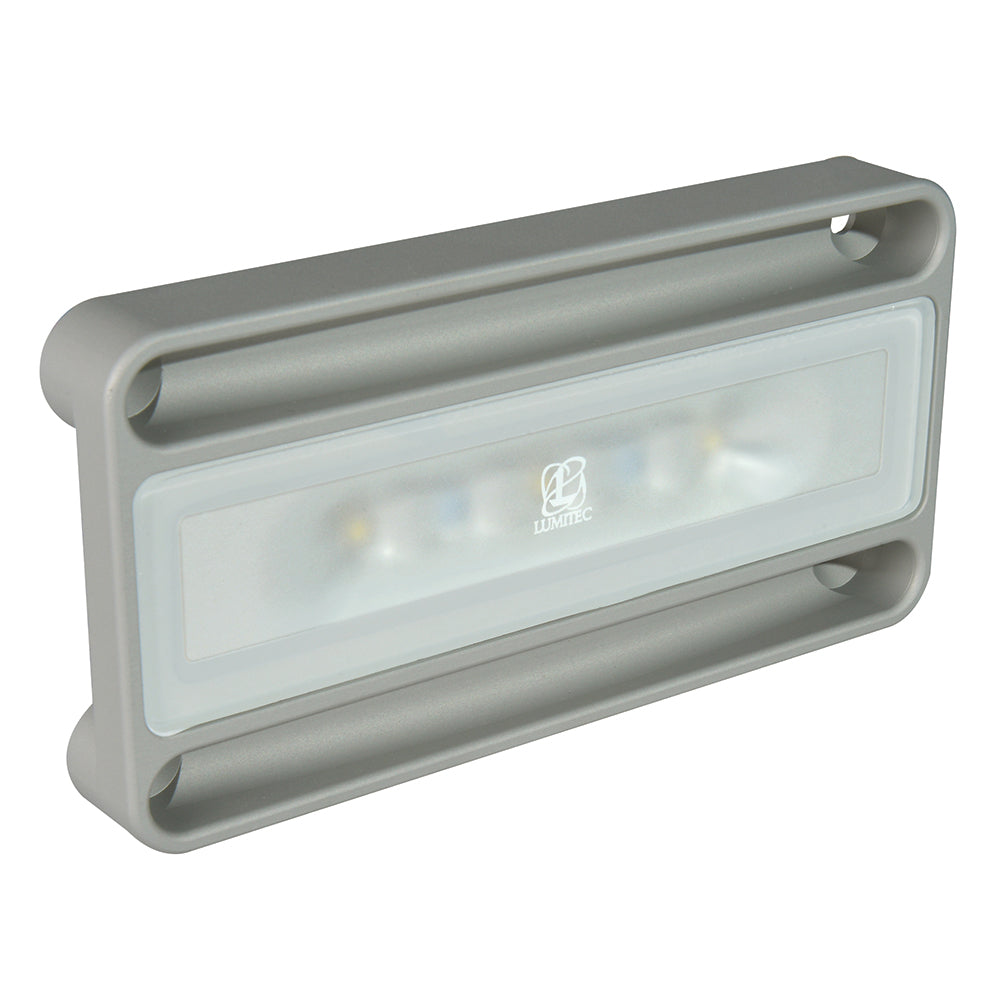

The Lumitec 101070 is a low-profile LED engine room and utility light that runs on 10-30V DC and produces 530 lumens of cool white output at 6500K.
It is sealed to an IP67 rating and is ignition protected and intrinsically safe, which suits it for engine rooms, mechanical compartments, and other onboard spaces that see moisture, spray, and vibration. The beam spread approaches 180 degrees, helping light reach into corners and under equipment where narrow beams leave shadows.

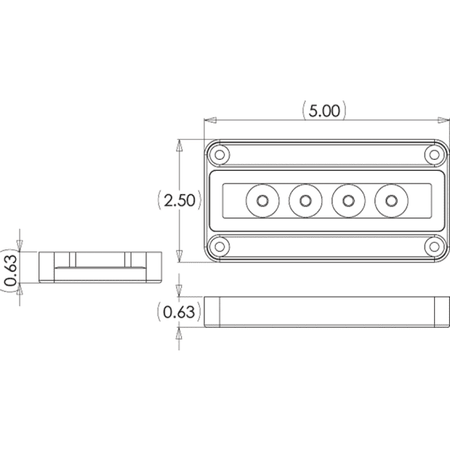

Overall size is 5.00 in wide, 2.5 in tall, and 0.63 in deep, so it fits well where mounting depth is limited.
Key features
- 10-30V DC input range, 11W draw (about 900 mA at 12V and 450 mA at 24V)
- Cool white 6500K output with CRI 70+ and 530 lumens
- IP67 sealed against dust and temporary immersion
- Ignition protected and intrinsically safe for use in mechanical spaces
- Wide flood beam that approaches 180 degrees for even compartment coverage
- Low-profile housing: 5.00 in (W) x 2.5 in (H) x 0.63 in (D)
- Built-in dimming behavior using a brief power off/on during startup to set light level
- Polarity sensitive DC wiring
- Operating temperature range: -35 to +55 C (-31 to +131 F)
- Brushed finish
What’s included
- Nevis high intensity engine room light
- Mounting hardware (#6 self-tapping screws)
Installation and setup
This is a surface-mount fixture. Pick a location that gives the light a clear path across the space, then route the power leads either through the wire exit behind the light or along the mounting surface, depending on how you want to dress the wiring.
The housing can get warm during normal use. Avoid enclosed pockets that restrict airflow around the fixture, and leave space for air circulation if it will be run at higher output for extended periods.
Electrical and system integration
Connect to a 10-30V DC circuit and follow ABYC-style practices for wire sizing and overcurrent protection. Because the unit is polarity sensitive, confirm positive and negative before finalizing the connection.
In engine rooms and wet lockers, sealed wire-to-wire connections such as adhesive-lined butt connectors help keep moisture and oil vapor out of the splice.
Use cases on board
This light works well as a service light for engine rooms, generator compartments, and mechanical lockers where you need an even spread over filters, belts, and valves. The IP67 seal also suits it for wet storage areas that get washdowns.
It is a strong fit for boats with either 12V or 24V systems where you want wide-beam white light and a fixture that stays low profile against the mounting surface.
