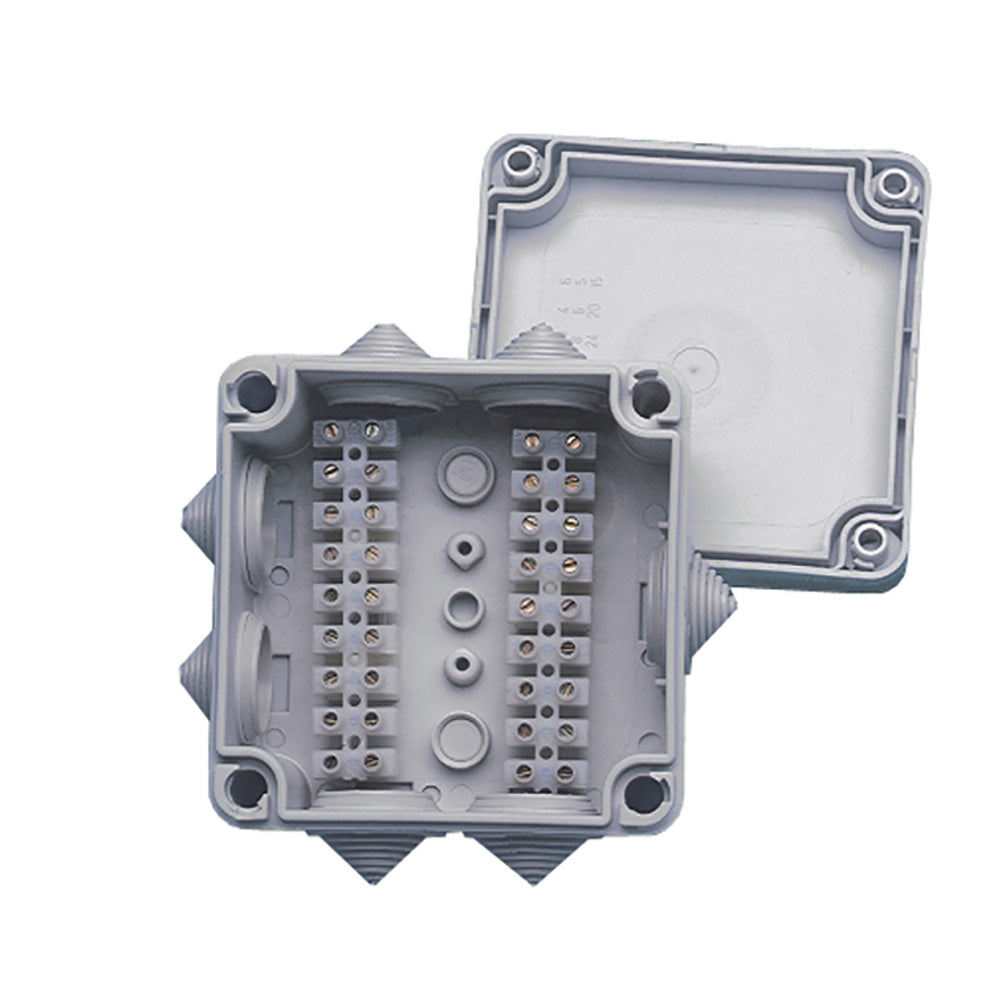

Newmar Power - PX-3 Junction Box

Reliable Waterproof Protection for Your Marine Wiring Needs

The Newmar PX-3 Junction Box offers superior waterproof protection for wiring connections, making it ideal for use above or below decks in marine environments. This robust junction box ensures secure and reliable electrical connections, even in areas exposed to occasional spray.

General Description

Designed for the challenging conditions of marine environments, the Newmar PX-3 Junction Box provides a watertight and durable solution for wiring connections. Crafted from high-impact polypropylene, this junction box features a snap-on cover that ensures a watertight seal. It is perfect for electronic installations due to its high-quality construction and easy-to-use design.

Key Features

• Waterproof Protection: IEC Waterproof Rating of IP55 ensures protection against water jets from any direction.
• Rugged Construction: Made from non-corrosive, high-impact polypropylene for enhanced durability.
• Secure Connections: Equipped with molded nylon connector strips that use screw compression to secure wires without lugs, preventing damage to copper strands.
• Versatile Installation: Features universal cut-to-fit cable entries that accommodate a wide range of cable sizes, with multiple knockouts for conduit access.
• Compliance: Meets ABYC standards, ensuring safe and reliable marine installations.

Technical Specifications

• Number of Connector Strips: 2
• Positions per Strip: 9
• Maximum Wire Gauge: 16
• Number of Cable Entry Ports: 7
• Number of Cable Entries Installed: 7
• Spare Cable Entries Provided: 0
• Cable Diameter Range:
• Inches: .14 – .99
• Millimeters: 3.5 – 25.5
• Box Size:
• Inches: 4.45 x 4.45 x 2.29
• Centimeters: 11.3 x 11.3 x 5.8

Product Dimensions

The PX-3 Junction Box is compact yet spacious enough to accommodate various wiring needs. Its dimensions (4.45 x 4.45 x 2.29 inches) make it suitable for installation in tight spaces while providing ample room for secure wiring connections.

Highlights

• Watertight Seal: Snap-on cover ensures a watertight seal, protecting connections from moisture and spray.
• High-Quality Materials: Constructed from rugged, non-corrosive polypropylene for long-lasting performance.
• Flexible Installation: Multiple knockouts and universal cable entries allow for easy and flexible installation.
• Safe and Secure: Captive screw compression terminals ensure secure connections without damaging the wires.
• IP55 Rated: Provides reliable protection against water jets, making it suitable for demanding marine environments.

Applications

The Newmar PX-3 Junction Box is ideal for use in wheelhouses, below decks, and engine rooms, providing a reliable and waterproof solution for marine wiring connections. Its durable and user-friendly design makes it a trusted choice for maintaining the integrity of electrical systems in harsh marine conditions.
