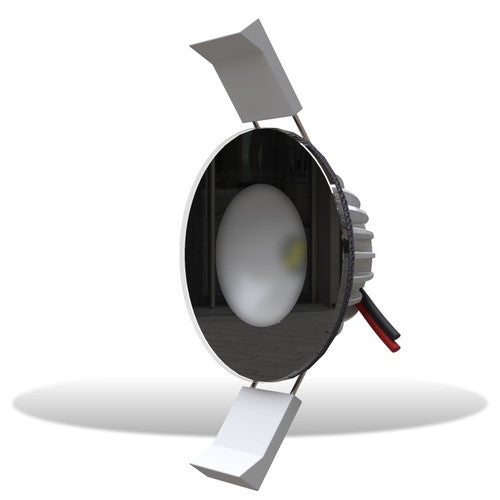

Lumishore ECLIPSE DL55 LED Downlight, Dual-Color Blue/White, 5000K White, 12V DC (10-15V), IP67, 64mm Bezel, 2in Cutout, Black Finish

Overview

The Lumishore 010-04476-00 is a recessed, dual color LED downlight that switches between white (5000 K) and blue for overhead lighting on a 12V DC boat.

It operates on 10 to 15V DC with a simple 2-wire hookup, and the front of the light is IP67 rated for wet areas and washdowns. The housing uses an aluminum body with a glass front and comes in a black finish, but it is not intended for permanent submersion.

For fit, it installs through a 50.8 mm (2.0 inch) cutout with a 64.0 mm (2.519 inch) bezel, a 3.5 mm low profile, and about 21.2 mm (0.834 inch) of depth behind the mounting surface.

Key features

• Dual color output: white (5000 K) and blue in one fixture for task lighting or low-glare night lighting
• 12V DC system only, operating range 10 to 15V DC
• IP67 rated front for damp locations and washdowns (not for permanent submersion)
• Aluminum body with a glass front and a black finish to blend into darker headliners and hardtops
• 2-wire electrical connection; typical power about 4 W with typical current draw around 0.33 A at 12V (0.4 A max)
• Fits a 50.8 mm (2.0 inch) hole with a 64.0 mm (2.519 inch) bezel and a 21.2 mm (0.834 inch) shallow body depth
• Stainless steel spring clips for interior installs; exterior wet-area installs can be bedded with marine sealant
• Runs from a basic on/off switch or integrates with an ECLIPSE Command Center for zone control

Installation and setup

Choose a flat mounting surface and confirm you have clearance behind the headliner or panel for the body and wiring. For interior overheads, the spring clips hold the light in the cutout. In exterior locations or areas that see regular spray, bedding the bezel with a suitable marine sealant helps keep the install tight and water resistant.

Electrical and control notes

This light is intended for a fused 12V DC circuit, and longer runs should be wired with a cable size that keeps voltage drop low across the chain. When wired to a simple on/off switch, toggling the switch cycles between white and blue, and a brief power-off resets the light back to white. If you are integrating into an ECLIPSE Command Center system, keep dual-color lights on their own zone output.

Where it fits on board

This style of downlight works well in cabin headliners, heads, helm overheads, companionways, and hardtops where you want normal white light for cleanup and checks, plus blue light for night passages and keeping night vision intact. It also suits refits where you want dual-color flexibility without adding a second fixture or extra wiring runs.
