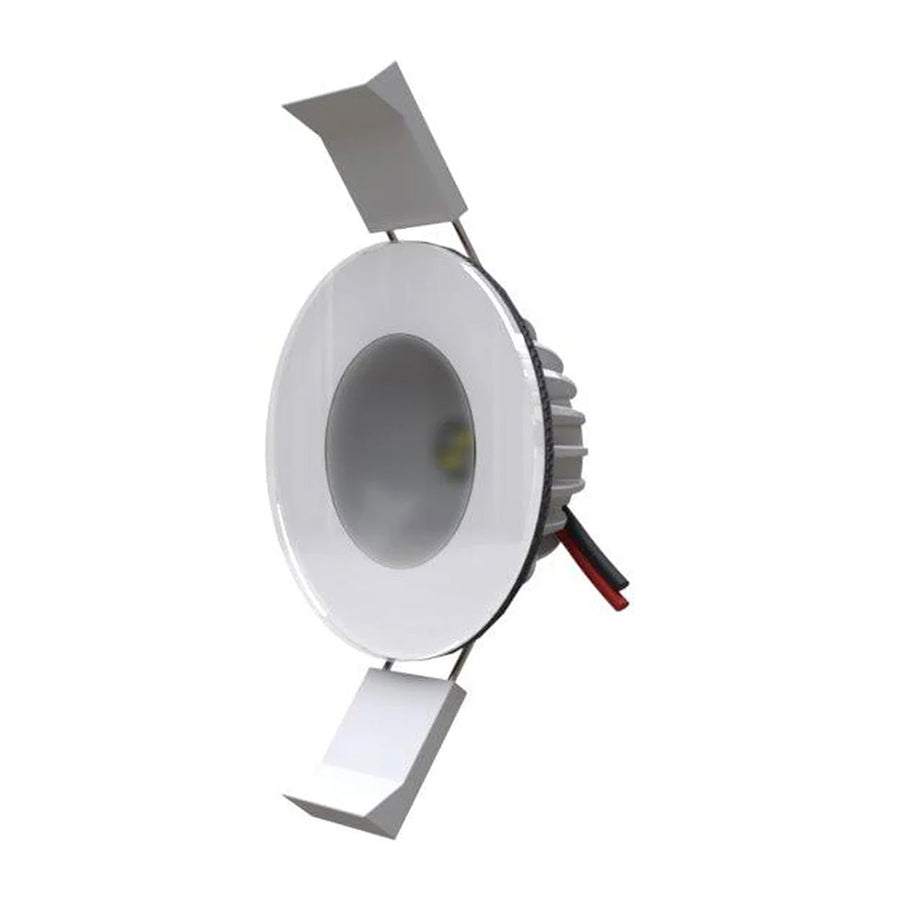

Lumishore ECLIPSE DL55 LED Downlight, Blue/White Light, 12V, IP67, White Finish
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Lumishore 010-04475-00 is a recessed LED downlight that switches between blue and white (5000 K) for overhead lighting on board. It runs on 12V DC systems only (10 to 15 V) and carries an IP67 rating for wet areas and washdowns.
The face uses a 64.0 mm bezel with a 3.5 mm profile, and it fits a 50.8 mm (2.0 in) cutout. A 21 mm installation depth helps when you are working under a hardtop, in a cabin headliner, or anywhere space is tight behind the panel. The body is aluminum with a glass front, and stainless steel spring clips secure it from behind the mounting surface.
Key features
- Dual-color output: blue and white, with white at 5000 K
- 12V DC only (10 to 15 V) with up to 0.4 A current draw
- IP67-rated sealing for damp locations and routine washdowns
- 2-wire electrical hookup for a straightforward install
- Control options include a standard on/off switch or an ECLIPSE Command Center
- 64.0 mm bezel, 50.8 mm cutout, 21 mm depth, and stainless steel spring-clip mounting
Installation and fit
Plan the install around the 50.8 mm cutout and confirm you have at least 21 mm of clearance behind the mounting surface for the light body and wiring bend radius. The spring clips hold the unit in place without fasteners, so a clean, flat mounting surface helps the bezel sit evenly.
In areas that see spray or condensation, route wiring so it does not drip directly into the cutout and keep connections in a dry location whenever possible. A quick dry-fit before final wiring can save time if you are working through a headliner or overhead panel.
Electrical and control
This downlight is for 12V DC systems only within a 10 to 15 V range. Power it from a protected lighting circuit and use marine-grade tinned copper conductors sized for the run length and load. For color control beyond basic switching, use the ECLIPSE Command Center option noted above.
On-board use
Blue light works well for moving around at night without blasting the cockpit or cabin with white light, while the 5000 K white setting suits cleanup and task lighting. Common mounting spots include cockpit overhangs, hardtops, cabin overheads, companionways, galleys, and heads where moisture is part of normal life on a boat.
This is a good match for boaters running 12V DC and looking for a small downlight that fits in shallow overhead spaces while still tolerating wet environments.
Maintenance and care
Rinse the face with fresh water after salt exposure and wipe with a soft cloth. Avoid abrasive pads on the glass front and check the spring clips during routine maintenance so the light stays seated and secure over time.
