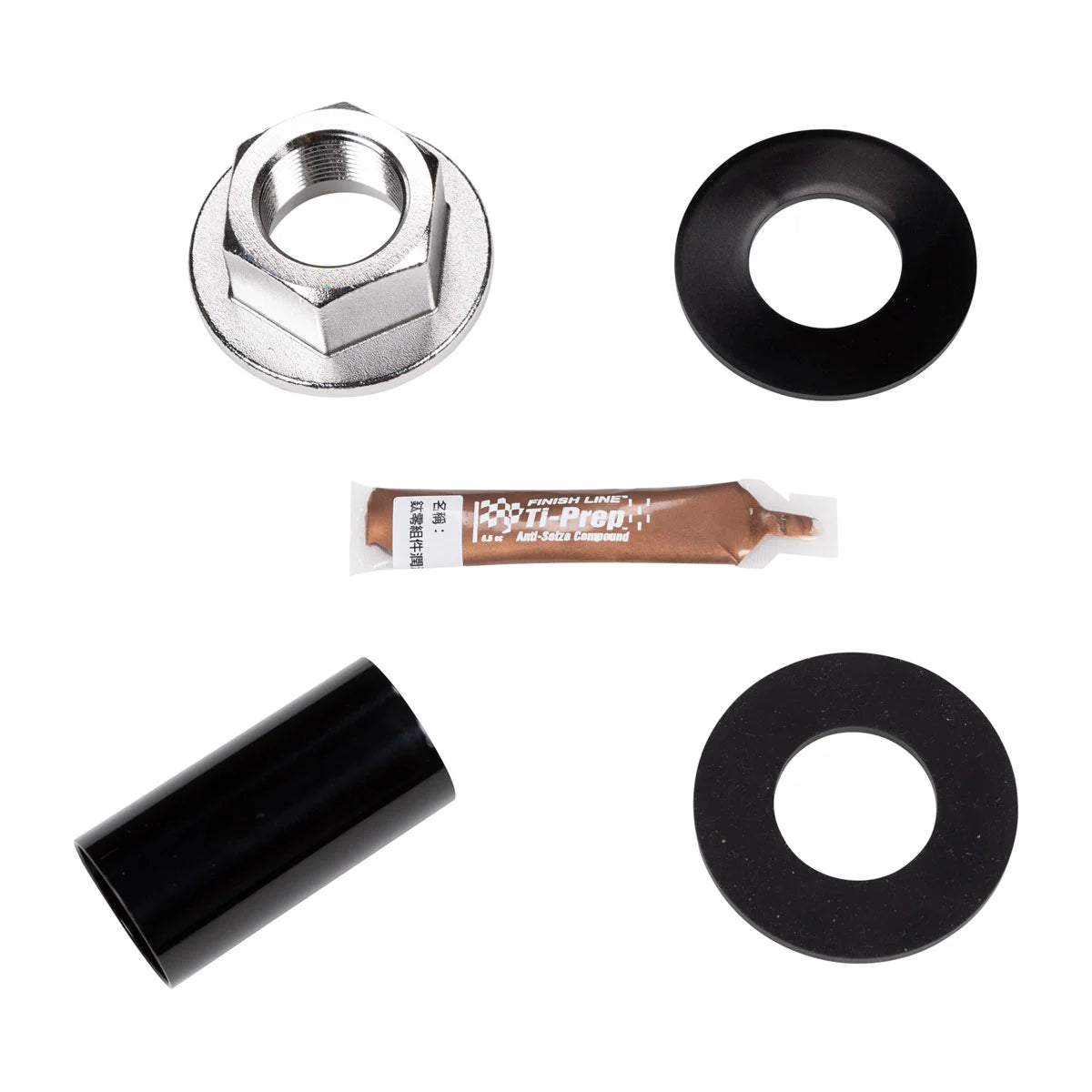

Garmin Panoptix PS70 Thru-Hull Down Transducer Mounting Hardware

Overview

The Garmin 010-13230-01 is mounting hardware for installing a Panoptix PS70 thru-hull down transducer. It supports a secure fit at the hull and helps keep the transducer aligned so the face can sit parallel to the waterline, which matters for consistent down-looking sonar.

It is a practical add-on for a fresh install, a re-bedding job after haul-out, or replacing hardware that has been removed during service. Because this hardware lives at the hull, a tight install helps prevent small shifts that can show up as noisy readings when you are running in chop or at speed.

Key features

• Fits Garmin Panoptix PS70 thru-hull down transducer installations
• Supports stable mounting at the hull to reduce movement that can affect sonar clarity
• Works with fairing block style installs to help keep the transducer face parallel to the waterline
• Useful for new installs or as replacement hardware during maintenance and re-sealing

Compatibility and fit

This hardware is intended for the Panoptix PS70 thru-hull down transducer. It is not a universal transducer mount, so it should be matched to a PS70 installation rather than another Garmin model or a different brand of thru-hull transducer.

Installation and setup

Thru-hull work is typically done with the boat out of the water. Dry-fit the parts, confirm the transducer orientation, and use an appropriate marine sealant for below-waterline fittings. After launch, check for leaks and verify the assembly stays tight after the first few hours of running.

On hulls that need a fairing block, the goal is simple: shape and position the fairing so the transducer face ends up parallel to the waterline. That alignment helps the PS70 keep a clean view straight down instead of fighting turbulence.

Use on board

This is a solid match for owners who already have a PS70 and want a clean, stable install for fishing, cruising, or offshore runs where hull vibration and long hours underway can loosen marginal hardware over time.

Maintenance and care

During routine bottom checks, look for any sign of movement, weeping sealant, or growth around the install that can disturb water flow. If the transducer has shifted or you see leaks, plan on removing and re-bedding the hardware rather than trying to tighten your way out of it.
