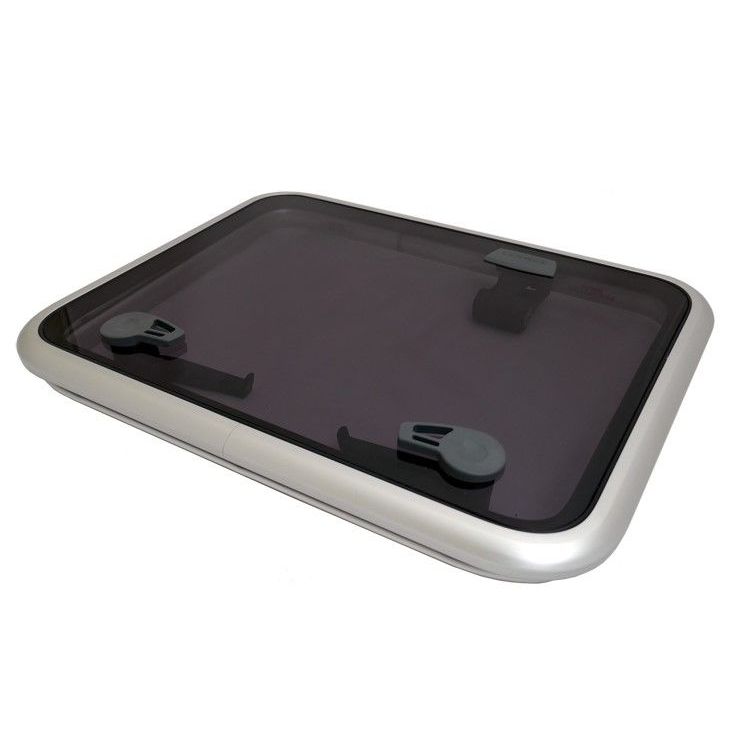

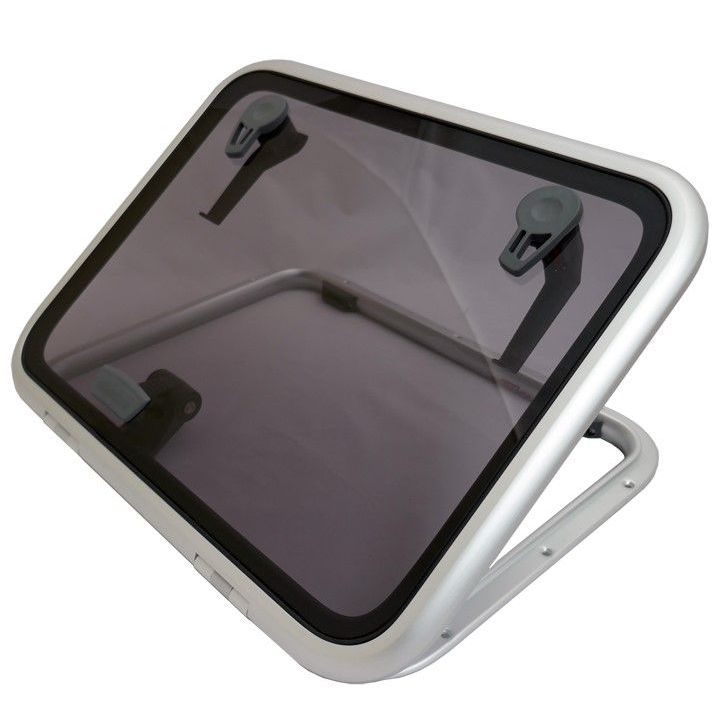

Lewmar - Size 54 Low Profile Hatch Flange Base

Reliable and Stylish Marine Hatch for Optimal Ventilation

The Lewmar Size 54 Low Profile Hatch Flange Base is designed to provide superior ventilation and natural light while maintaining a sleek and durable structure. Crafted for marine applications, this self-supporting hatch combines robust construction with a modern aesthetic, making it an excellent choice for boats and yachts. Its smoke grey acrylic window ensures a balance between privacy and light diffusion, while the low-profile design reduces wind resistance, enhancing aerodynamics.

Built for easy installation on flat surfaces, this hatch offers a flange base that ensures a secure and watertight fit. The self-supporting system allows smooth and effortless operation, making it an ideal addition to any marine vessel requiring reliable, high-quality hatches.

Durable and Precise Construction

Engineered with precision, this hatch is constructed to withstand marine environments. The 5/16-inch thick acrylic window enhances durability while providing clarity and resilience against harsh sea conditions. The lower frame thickness of 9/16 inches ensures structural integrity and long-term performance. With a total hatch weight of 10.8 lbs, it remains lightweight without compromising strength.

Optimized Dimensions for a Secure Fit

• Overall Length (X): 18 3/16 inches
• Overall Width (Y): 22 11/16 inches
• Overall Height (Z): 1 inch
• Corner Radii (R): 2 7/8 inches
• Cut-Out Length (X1): 15 7/16 inches
• Cut-Out Width (Y1): 19 15/16 inches
• Cut-Out Radii (R1): 1 11/16 inches

These precise dimensions ensure a tight, secure fit, making it compatible with various marine installations.

Highlights

• Self-supporting design for easy operation and stability
• Smoke grey acrylic window for privacy and light diffusion
• 5/16-inch acrylic thickness for added strength and durability
• Lightweight construction at just 10.8 lbs

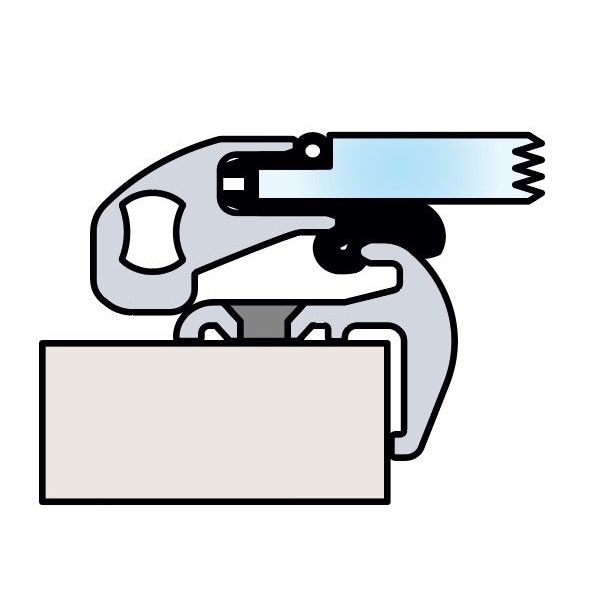

• Flange base for a secure and watertight installation
• Low-profile structure to minimize wind resistance

Easy Installation and Secure Mounting

This hatch is designed to be installed on a flat surface with a maximum tolerance of ±1mm. For proper installation, the following fastening sizes are recommended:

• Hinge section: M6 (1/4-inch) fasteners
• Lower frame: 5mm CSK screw No.10 UNC 2 BA

These specifications ensure a secure and reliable fit, providing long-term stability for marine applications.

This Lewmar Size 54 Low Profile Hatch Flange Base is an excellent choice for boat owners seeking a durable, stylish, and functional hatch that enhances both ventilation and aesthetics while withstanding harsh marine conditions.
