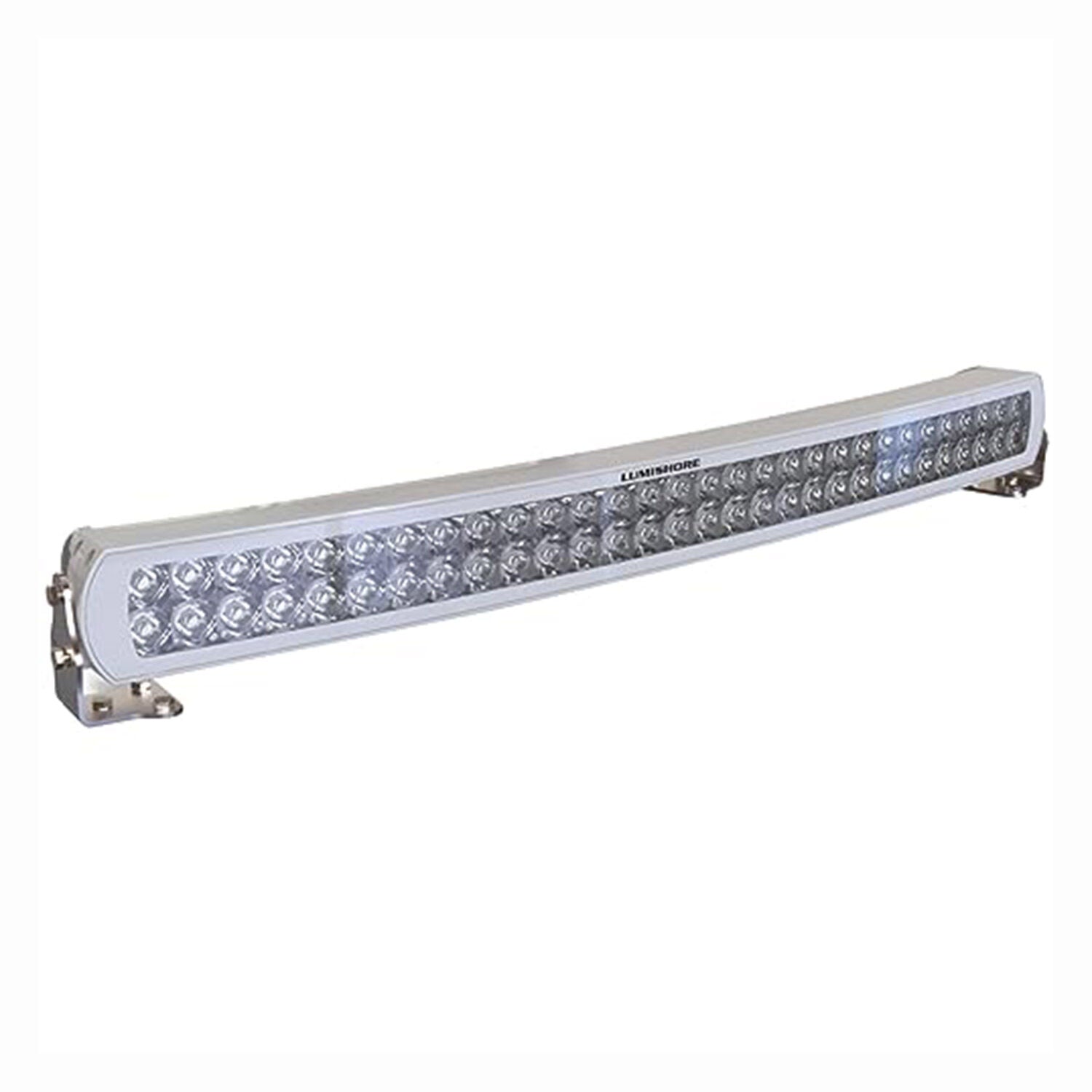

Lumishore 20in Curved LED Light Bar, 12/24V, IP68, 15,000 Fixture Lumens, 5000K White Light

Overview

The Lumishore 010-04462-00 is a curved, above-water LED light bar that throws a wide spread of white light for deck and topside work areas. It runs on 10.5 to 31 V DC for 12V or 24V boats, produces 15,000 fixture lumens at 5000 K, and the housing is rated IP68 against water ingress.

This is the kind of light you mount high and forward facing on a T-top, hardtop, tower, or bow platform when you want coverage that stays useful at the dock and underway. The beam pattern is a letterbox style (9 to 20 degrees, vertical to horizontal), which helps keep the light concentrated where you need it instead of wasting output straight up into the night.

It makes sense for anglers who need strong work light at the helm and on deck, and for cruisers who want confident lighting for docking, line handling, and checking the foredeck after dark without changing anything else in the boat’s electrical system.

Key features

• White 5000 K output with 15,000 fixture lumens for above-deck lighting
• 10.5 to 31 V DC input for 12V and 24V systems
• IP68 water ingress protection for rain, spray, and washdowns
• Letterbox beam (9 to 20 degrees, vertical to horizontal) for a wide, usable spread
• Powder-coated aluminium body with a Makrolon lens
• Simple 2-wire hookup, with 3-wire connection when used with ECLIPSE Command Center or EOS-LUX Command Center
• Stainless steel fixing brackets for mounting in high-vibration areas
• 50 cm (19.7 in) light cable length at the fixture for clean routing into a top or console

Installation and setup

Plan the mounting location the same way you would for a spreader or forward work light: high enough to clear rails and hardware, but aimed so the beam lands on deck surfaces instead of reflecting back into the helm. The curved bar format suits top edges and overhead mounting points that follow the lines of a hardtop or T-top.

For a clean install, route the light cable into a dry space, use a proper cable gland or sealed pass-through, and keep splices and connections out of the bilge. Even with an IP68-rated fixture, the system is only as dependable as the connections and strain relief you provide around it.

Electrical and control integration

The light uses an internal driver and is intended for straightforward DC wiring. Maximum current draw is 12.8 A on a 12V system and 6.4 A on a 24V system, so size wiring and circuit protection for the run length and mounting height, not just the fixture location.

Control can be as simple as a standard on-off switch, or it can be tied into ECLIPSE Command Center or EOS-LUX Command Center setups. When using a command center, the wiring changes to a 3-wire connection, so it is worth confirming your control method before you start pulling cable.

Compatibility and fit

Light face dimensions are 57.3 x 7.2 x 9.6 cm (22.6 x 2.8 x 3.8 in), and the unit weighs 3.0 kg (6.6 lb). Those numbers matter on tops, towers, and light brackets where leverage and vibration can loosen fasteners over time. Make sure the mounting surface is reinforced and that the aiming angle can be set without interference from antennas, outriggers, grab rails, or canvas.

Maintenance and care

Rinse the fixture after saltwater runs and washdowns, especially around brackets and fasteners. Keep the lens clean with mild soap and water so the light stays even and glare stays down, and give the mounting hardware a quick check periodically if the boat sees heavy chop or frequent trailering.
