Discover the Power of DRS6ANXT Doppler Radar

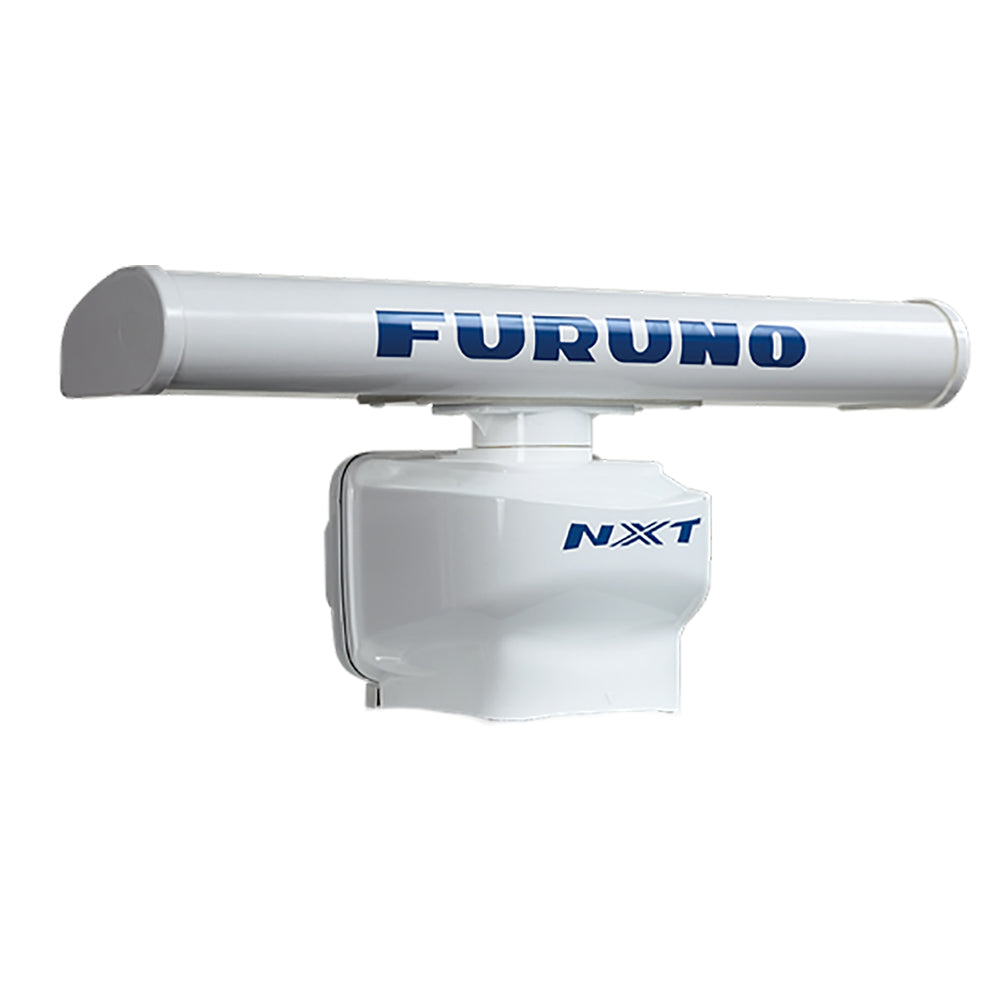

DRS6ANXT Solid State Doppler Radar with Pedestal, 10M Cable & 3.5' Open Array
The DRS6ANXT brings to you the very essence of maritime safety and intelligence, combining the same pulse compression and Doppler frequency shift sensing as the DRS4DNXT. Experience the simplicity of connection with TZtouch and TZtouch2. Furthermore, relish the direct connection to 12VDC power for cable runs up to 10 meters (standard supply), sans the external power supply. From the 24" Radome (DRS4DNXT) to the 6-foot Open Array (DRS6ANXT), Furuno delivers Solid State Radar solutions fit for every vessel.
Revolutionary Target Analysis
Target Analyzer
Experience the innovation in Target Analyzer, which changes the color of approaching targets, offering a vivid representation of potential hazards. Green signifies stationary targets or those moving at less than 3 knots. When the speed exceeds 3 knots, the echo turns red, even when following another vessel. This dynamic analyzer operates independently of your ship's velocity.
Advanced Target Monitoring
Target Tracking
Deciphering threats becomes a breeze with NXT Radars. Benefit from Furuno's sophisticated Doppler technology, capturing and monitoring targets in almost every sweep. In a flash, witness the target's speed and trajectory. Dangerous targets glow red, making hazard prediction straightforward. With the ability to track up to 100 targets, NXT Radar showcases a whole new world. Further enhance the visual with target trails and Furuno's unique True Trail feature.
Uncover Nature's Secrets: Bird Mode
Want to locate birds effortlessly? Turn on the Bird Mode. This dedicated mode adjusts radar settings to accentuate bird echoes, a crucial tool for fishermen to find the best fishing spots.
Crystal Clear Resolution with RezBoost
While the resolution of NXT Radars is already unmatched, RezBoost takes it to the next level. With beam sharpening technology, NXT Radars deliver impeccable target separation and long-range detection.
Key Technical Details
- Antenna Size: 3.5 ft
- Cable: 15M
- Antenna Type: Open Array
- Band: X-Band
- Beam Width: 2.2 degrees
- Power Usage: 12-24 VDC
- Power Output: 25 W
- Range: 72 nm
Product Highlights & Features
- Pulse compression and Doppler frequency shift sensing
- Direct 12VDC connection for 10-meter cable runs
- Dynamic Target Analyzer
- Advanced target tracking with up to 100 targets
- Unique Bird Mode for fishermen
- Enhanced resolution with RezBoost technology
