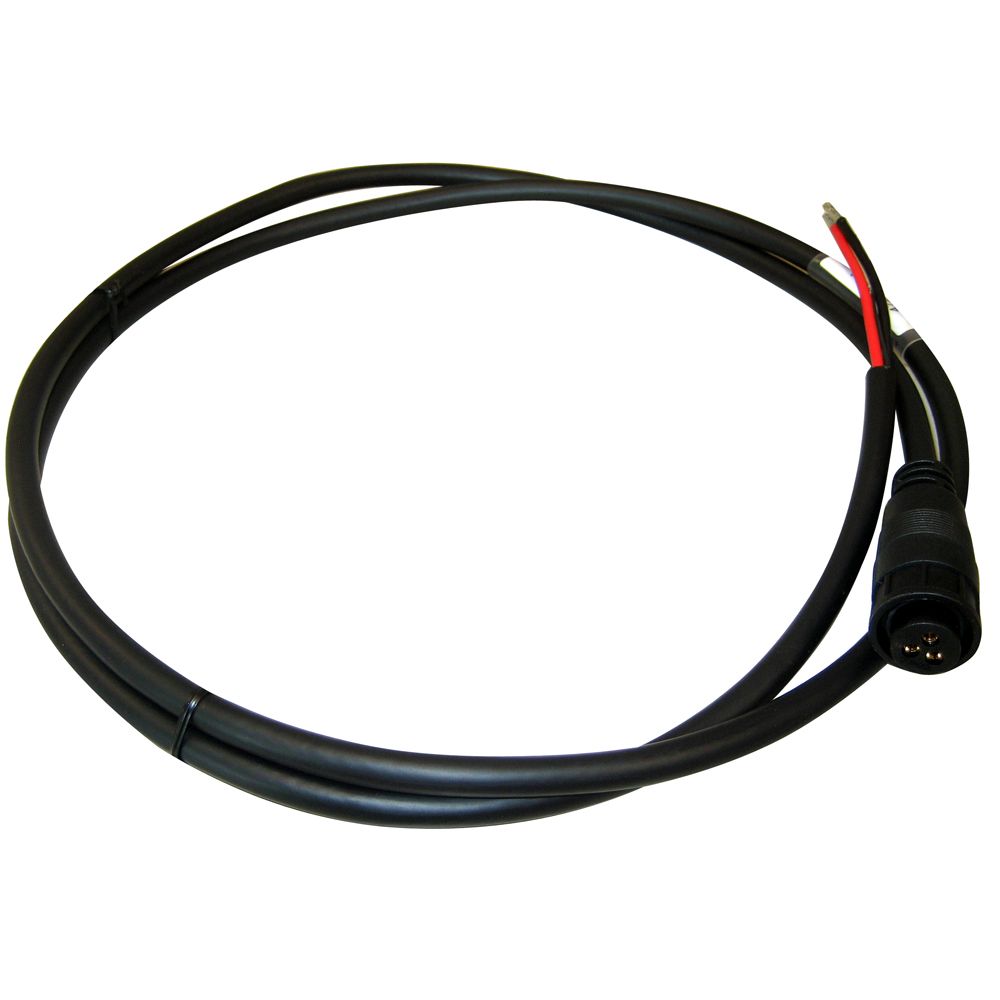

Raymarine 3-Pin Power Cable, For DSM30/300 & CP Modules, 12/24V, 1.5m
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Raymarine A80346 is a 1.5 m 3-pin power cable for compatible Raymarine DSM and CP sonar modules that use a 12V or 24V DC power connection. It is a direct replacement or installation cable for bringing clean power to supported sounder and sonar hardware without adding unnecessary cable length behind the helm, in an electronics box, or near a module mounting location.
The 1.5 m cable length suits compact marine electronics installations where the power source, breaker panel, or distribution point is close to the sonar module. Its 3-pin format matches the supported Raymarine units, helping preserve the correct connection style for systems such as DSM30, DSM300, CP300, CP370, CP450, CP470 and CP570.
Key features
- 1.5 m power cable length for short cable runs inside a helm station, console, electronics locker, or equipment bay.
- 3-pin connection format for supported Raymarine sounder and sonar modules.
- Supports 12V and 24V DC marine electrical systems.
- Useful for replacing a damaged power lead, completing a module installation, or cleaning up a refit where the original cable is missing.
- Compatible with Raymarine DSM30, DSM300, CP300, CP370, CP450, CP470, CP570, CP200 and E120 equipment when the correct 3-pin power connection is required.
Installation and fit
Before installation, confirm that the connected Raymarine unit uses the 3-pin 12/24V power input and that the 1.5 m cable length reaches the planned power source without tension. On boats, short power leads are often used to keep wiring neat around sonar processors, especially when the module is mounted close to a DC panel or protected junction point.
Route the cable away from sharp edges, hot engine-room surfaces, and areas where gear may pull or crush the wiring. Leave enough service loop to remove the connected module for inspection without stressing the connector.
Electrical and system integration
This cable is intended for DC power delivery to compatible Raymarine marine electronics, not for data networking or transducer signal extension. Match the vessel supply voltage, breaker protection, and wiring practices to the requirements of the connected device, and keep power wiring tidy to reduce troubleshooting time later.
Use cases on board
This power cable is a practical match for boat owners, installers, and refit technicians working with Raymarine DSM or CP sonar hardware. It is especially useful during electronics upgrades, repairs after connector or cable damage, or installations where a clean short run is preferred over excess cable bundled behind the dash.
