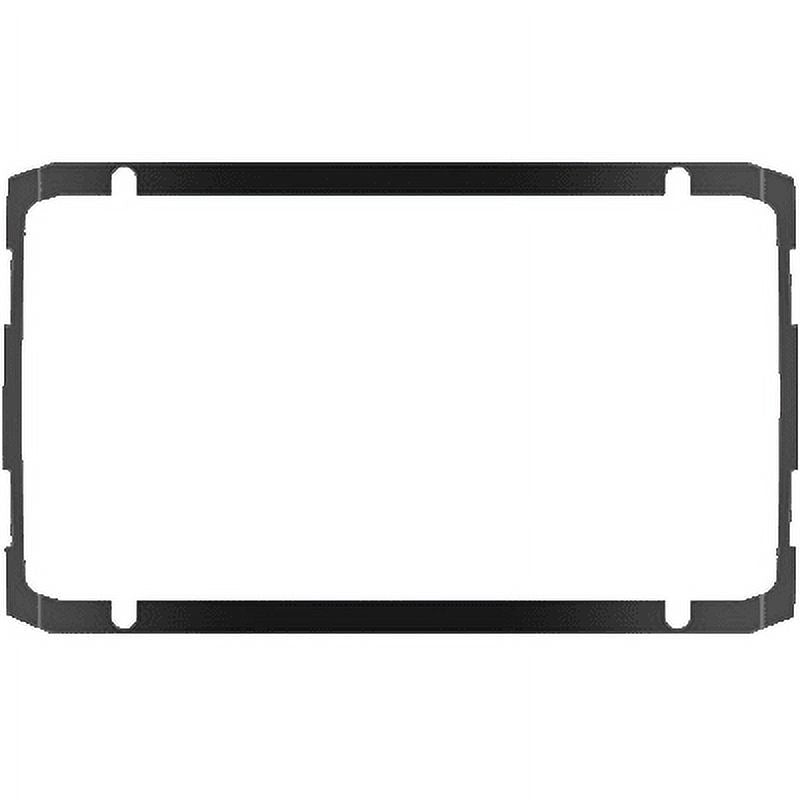

Garmin Flush Mount Kit, For echoMAP Plus 6Xcv, Hardware, Template
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Garmin 010-12671-01 is a flush mount kit for installing a compatible echoMAP Plus 6Xcv display into a flat helm panel for a clean, built-in look.
It uses a cutout template to lay out the opening before you cut the dash, then the unit is secured with the supplied hardware. Flush mounting keeps the screen close to the panel, which helps when space is tight around the wheel, throttle controls, and grab rails.
This kit is used with Garmin echoMAP Plus and echoMAP UHD 6-inch units, including 62cv, 63cv, 64cv, and 65cv models. Confirm the exact display family and size before cutting, since flush mount kits are model-specific.
Key features
- Flush-mount installation for compatible Garmin echoMAP Plus 6Xcv and echoMAP UHD 6-inch chartplotter units
- Mounts the display against most flat surfaces such as helm dashboards and consoles
- Supplied cutout template helps keep the opening aligned before fastening
- Includes mounting hardware and installation instructions for the flush-mount setup
- Reduces how far the unit protrudes compared with a bail or swivel mount, which can help on smaller helms
Installation and setup
Test the location with the template first and check for clearance behind the panel for connectors, cable routing, and cable bend radius. After cutting the opening, dry-fit the unit, then fasten it per the instructions so the display sits square to the dash.
Compatibility and fit
Made for Garmin echoMAP Plus and echoMAP UHD 6-inch displays (62cv, 63cv, 64cv, 65cv). This is not a universal bracket, so the kit should match your exact display series and screen size.
Use on board
This style of mounting suits boats where the chartplotter stays at the helm full-time and you want a console layout with fewer snag points. It is also a practical choice on fishing boats where rods and nets move across the dash area.
What's included
- Flush mount kit hardware
- Installation instructions
- Flush-mount cutout template
