Lumishore LUX Speaker Light Driver, For RGB/CRGBW LED Marine Speakers, 10.5-31V, IP68, Up to 16 Speakers, ISO 8846

Overview

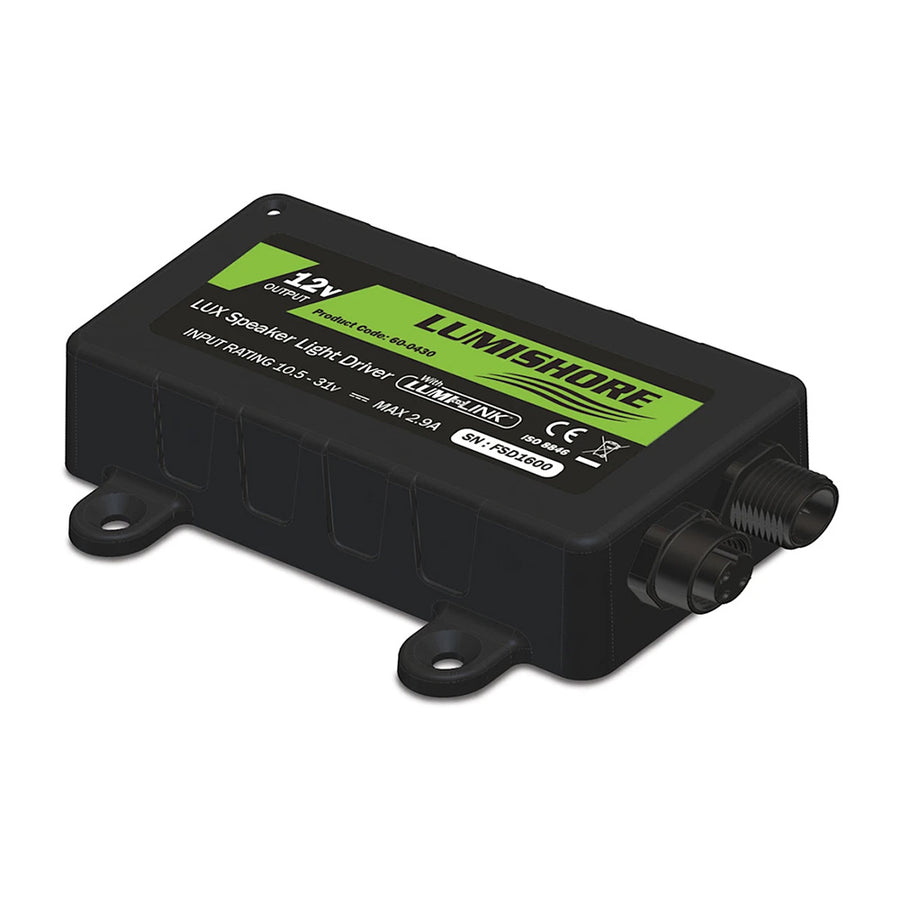

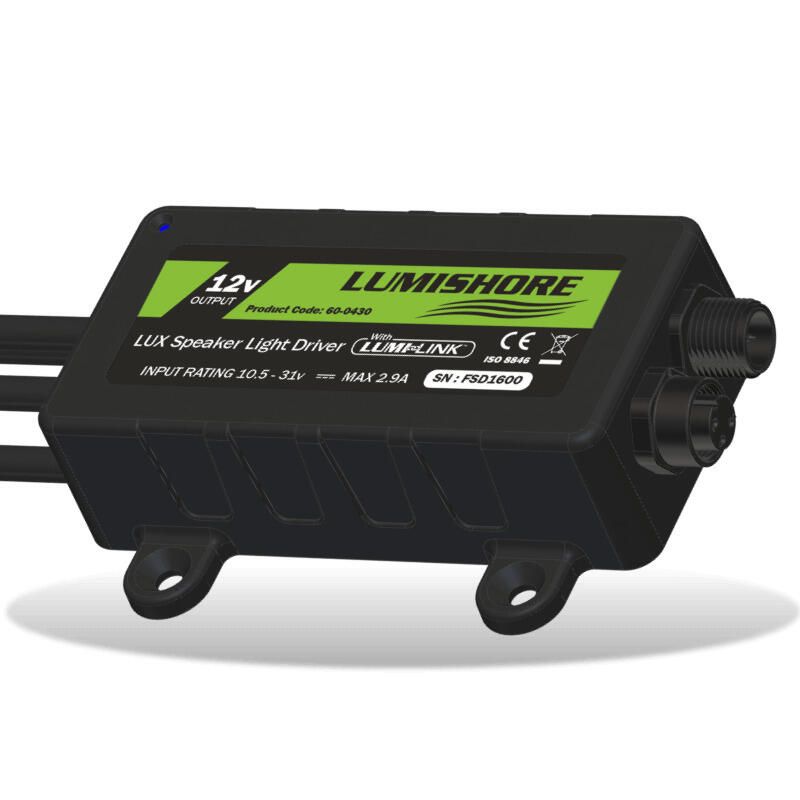

The Lumishore 010-04448-00 is a LUX speaker light driver that links compatible RGB and CRGBW LED marine speakers into the Lumishore LUX lighting system so speaker lighting can follow scenes and music-reactive modes. It runs on 10.5-31 V DC for 12V/24V boats and draws up to 5.6A at 12V or 2.8A at 24V. One driver controls up to 16 speakers, with up to 5 m (16.8 ft) from the driver to the first speaker.

Audio connects through an EOS-LUX Command Center mini-jack so the driver can analyze the music signal in three frequency bands and trigger different colors per band. Control can be handled by a momentary switch, or expanded into a Lumi-Link setup with an optional display and compatible MFD integration. The enclosure is IP68-rated and built from powder-coated aluminum in a compact 113 x 79 x 27 mm body (not including cable glands or cables).

Key features

• 10.5-31 V DC input range for 12V/24V systems; up to 5.6A at 12V or 2.8A at 24V maximum draw
• Controls up to 16 LED marine speakers from a single driver
• For use with CRGBW (cold white, red, green, blue, warm white) and RGB (red, green, blue) LED marine speakers
• Music-reactive lighting via EOS-LUX Command Center audio input with 3-band frequency analysis
• IP68-rated enclosure with powder-coated aluminum case; 113 x 79 x 27 mm housing size (not including cable glands or cables)
• Built-in electrical protection features including surge protection, reverse polarity protection, soft start, inrush protection, low-voltage protection, and automatic thermal roll-back
• Ignition protected to ISO 8846
• Maximum cable length to the first speaker: 5 m (16.8 ft)

Compatibility and system integration

This unit is a lighting driver for the LEDs built into CRGBW or RGB marine speakers. It does not amplify audio, so your head unit and amplifiers still handle sound output and tuning.

When installed as part of a LUX system, speaker lighting can be coordinated with other LUX and EOS lights for consistent color scenes across the cockpit, transom, and cabin areas.

Installation and setup

Mount the driver where you can reach the wiring and keep it above areas that can hold standing water. Plan the power feed from the DC distribution so conductor sizing and circuit protection account for the maximum current draw on your system voltage.

Keep the first speaker within 5 m (16.8 ft) of the driver, then route harnesses to the remaining speakers as your layout allows. Tighten cable glands and use drip loops so water does not track along wiring into the enclosure.

Use on board

This setup suits boats that want speaker lighting to match cockpit and accent lighting during dockside evenings, raft-ups, and night cruising, while still keeping control simple at the switch. It also makes sense when you want one control point to manage multiple speaker locations, up to 16 speakers on a single driver.

Maintenance and care

Re-check wiring strain relief and cable gland tightness after the first few outings and any time you service the audio system. If lighting output changes under heavy use, inspect airflow around the driver, supply voltage at the unit, and connection quality before chasing settings.

What's included

• One (1) LUX Speaker Light Driver
