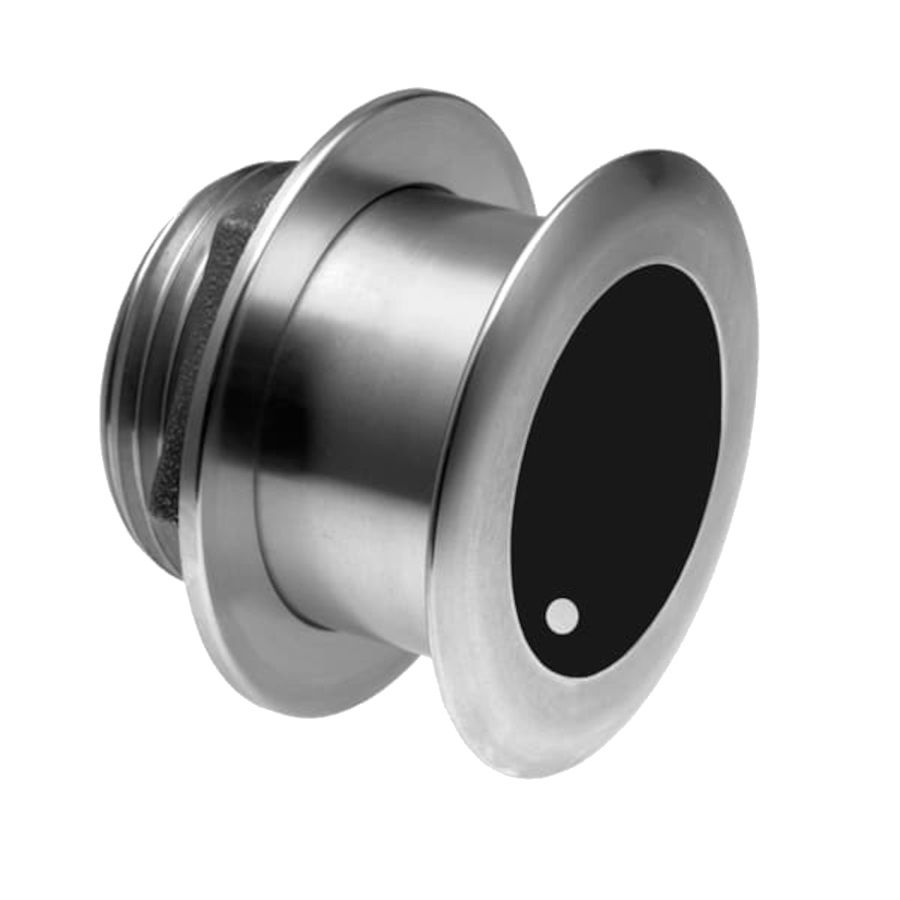

Airmar SS264-20-W2-10F 20d Tilt 200kHz Wide Beam 1kW Transducer - With Furuno 10-Pin

Precision Depth and Temperature Sensing

The Airmar SS264 Wide Beam Transducer is designed for high-performance marine applications, delivering unparalleled depth readings and fast-response water temperature sensing. Engineered for serious sport-fishing boats, this transducer set provides outstanding sonar clarity without the need for a high-performance fairing. Its stainless steel housing ensures compatibility with all hull materials, making it a versatile choice for both center-console and custom sport-fishing vessels.

Powerful Dual-Frequency Capability

This transducer system consists of two independent units operating at distinct frequencies. The 50 kHz transducer features a wide 25° beam, ideal for deep-water detection up to 914 meters (3000 feet). Meanwhile, the 200 kHz transducer, with its narrow-beam broadband technology, delivers high-resolution imaging and crisp target separation—perfect for bottom fishing and identifying structures. The combination of these frequencies provides a comprehensive underwater view, making it easier to locate fish holding near the seabed.

Optimized Design for Performance

The Airmar SS264 transducer is tailored for high-speed vessels, featuring a low-profile design that minimizes drag and protrusion below the hull. With a fixed 20° tilt, this transducer is optimized for hull deadrise angles ranging from 16° to 24°, ensuring accurate sonar readings even in dynamic marine conditions. Additionally, its patented Xducer ID® technology enables seamless integration with compatible marine electronics.

Technical Specifications

• Frequency: 50 kHz (wide beam) and 200 kHz (narrow beam)
• Power: 1 kW for exceptional sonar performance
• Beam Width: 50 kHz at 25°; 200 kHz optimized for precise target separation
• Depth Range: Up to 914 meters (3000 feet)
• Tilt Angle: Fixed 20° to match hull deadrise
• Housing: Durable stainless steel for maximum longevity

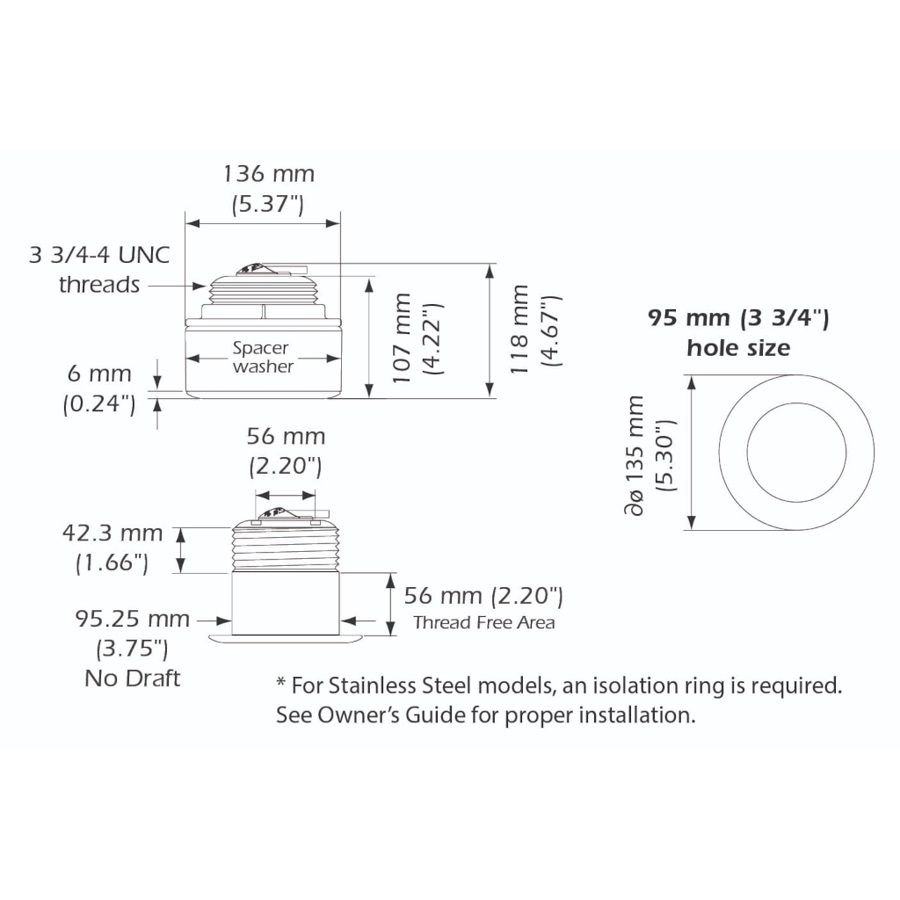

Product Dimensions

• Low-profile design with minimal hull protrusion

Highlights

• Dual-frequency operation for superior depth penetration and target resolution
• Fast-response water temperature sensing for real-time environmental awareness
• Low-ringing 200 kHz transducer for crisp bottom detail
• Stainless steel construction for enhanced durability in all hull types
• Optimized for high-speed boats with a 20° tilted element
