Raymarine Axiom 7 DV MFD, CPT-100DVS Transducer, LightHouse North America Chart

Overview

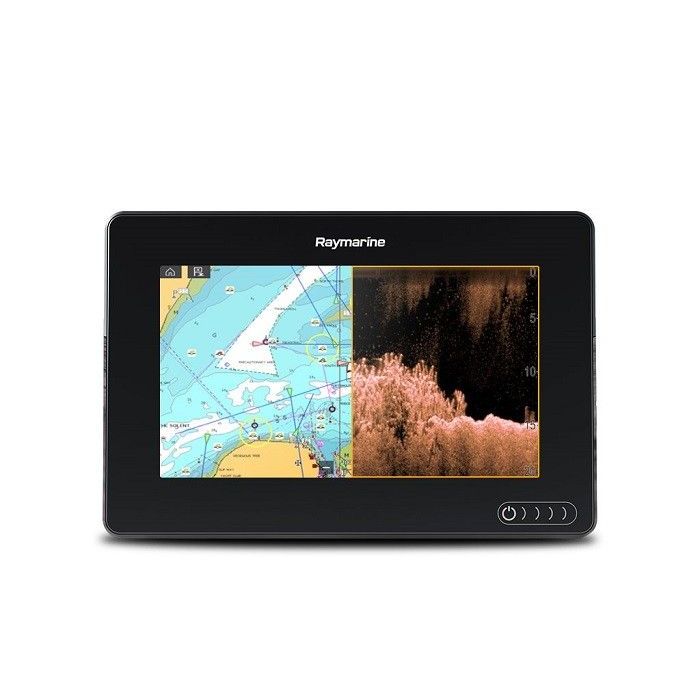

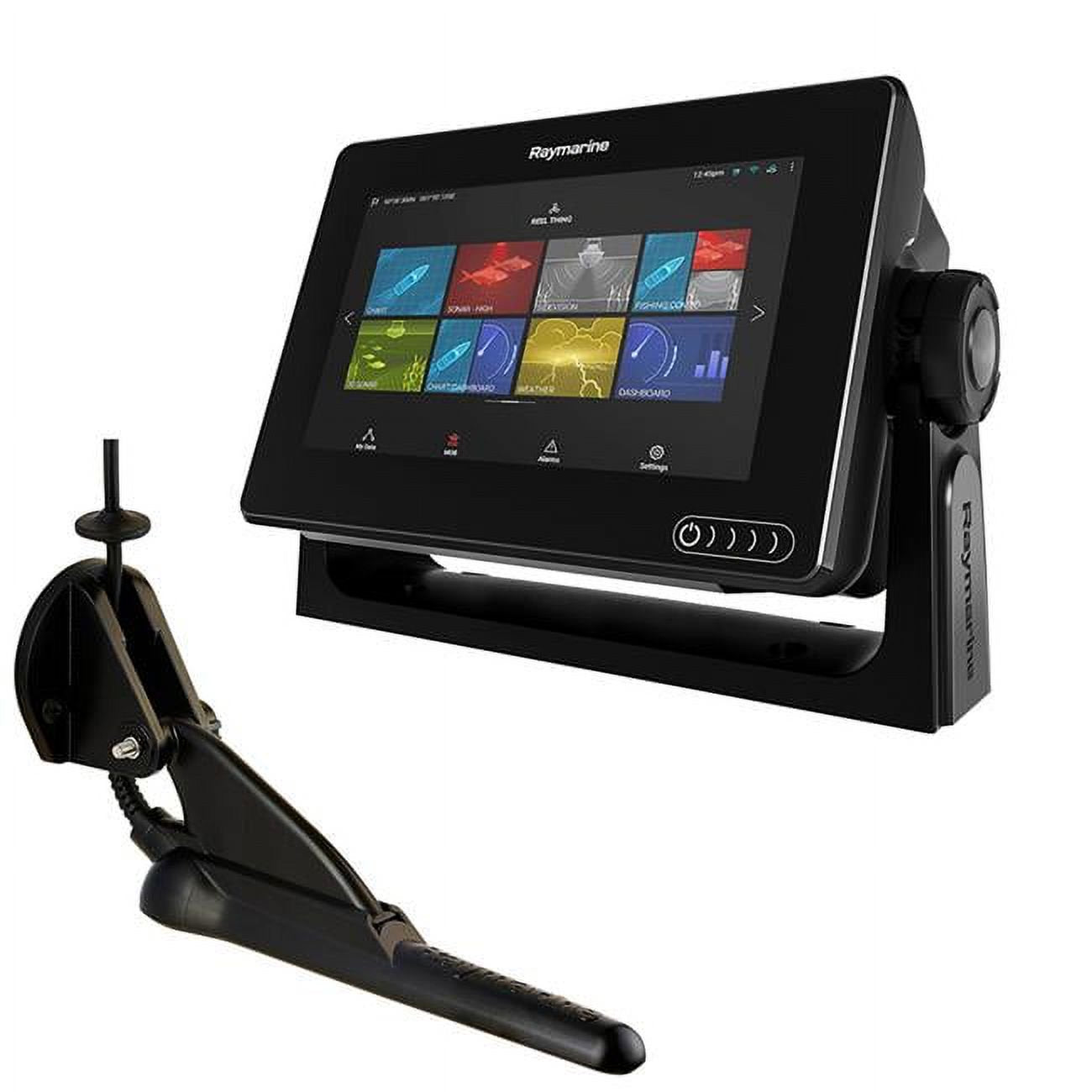

The Raymarine E70364-02-102 is a 7-inch multifunction display and fishfinder/chartplotter package with built-in DownVision sonar, an included CPT-100DVS transom-mount transducer, and a LightHouse North America chart card. It uses an 800 x 480 touchscreen, an internal GNSS receiver, and a 10.8 to 31.2 V DC power range, so it fits both 12 V and 24 V boat systems without extra power conversion.

This is the Axiom 7 DV version, which means chartplotting and sonar are handled in one display instead of relying on a separate sonar module for basic fishfinding. The built-in sonar works with the included CPT-100DVS transducer and supports DownVision views plus wide-spectrum CHIRP fishfinding, with depth performance up to 600 feet depending on water conditions.

For day boats, fishing skiffs, center consoles, and cruisers where dash space matters, this package covers the core jobs at the helm: charts, GPS position, sonar, and network expansion for the rest of the electronics onboard.

Key features

• 7-inch optically bonded touchscreen display with 800 x 480 resolution and swipe-to-power control
• Built-in DownVision sonar with 600 W CHIRP support and included CPT-100DVS transom-mount transducer
• Internal GNSS receiver with GPS, GLONASS, and BeiDou support for stable position updates at the helm
• Works on 12 V and 24 V DC systems with a 10.8 to 31.2 V input range
• IPX6 and IPX7 water resistance for mounting in exposed helm areas above or below deck
• RayNet Ethernet and NMEA 2000 networking for adding radar, autopilot, instruments, audio, and more
• Built-in Wi-Fi and Bluetooth for app connection and wireless device integration
• One microSD card slot, with a LightHouse North America chart card included in the package

Installation and setup

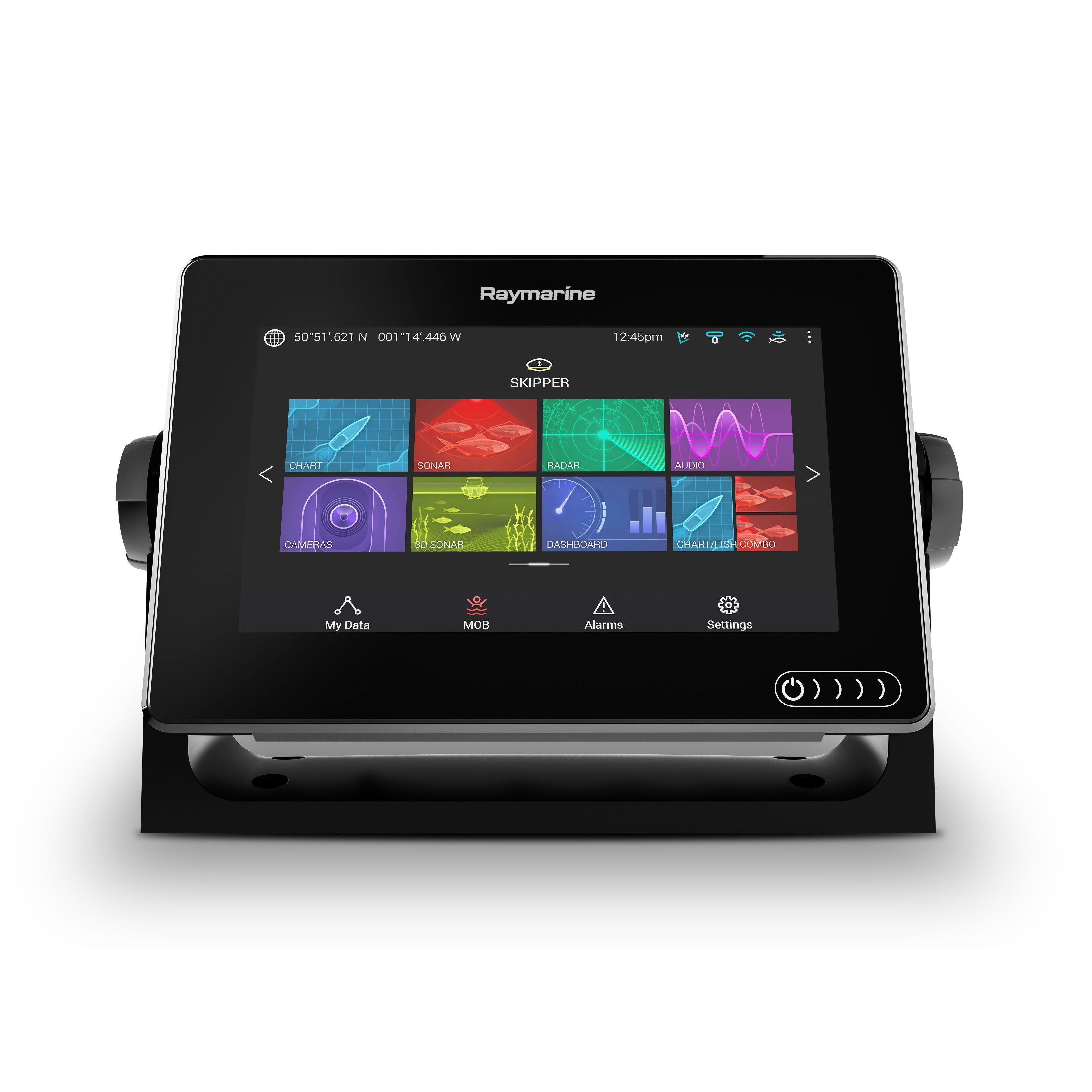

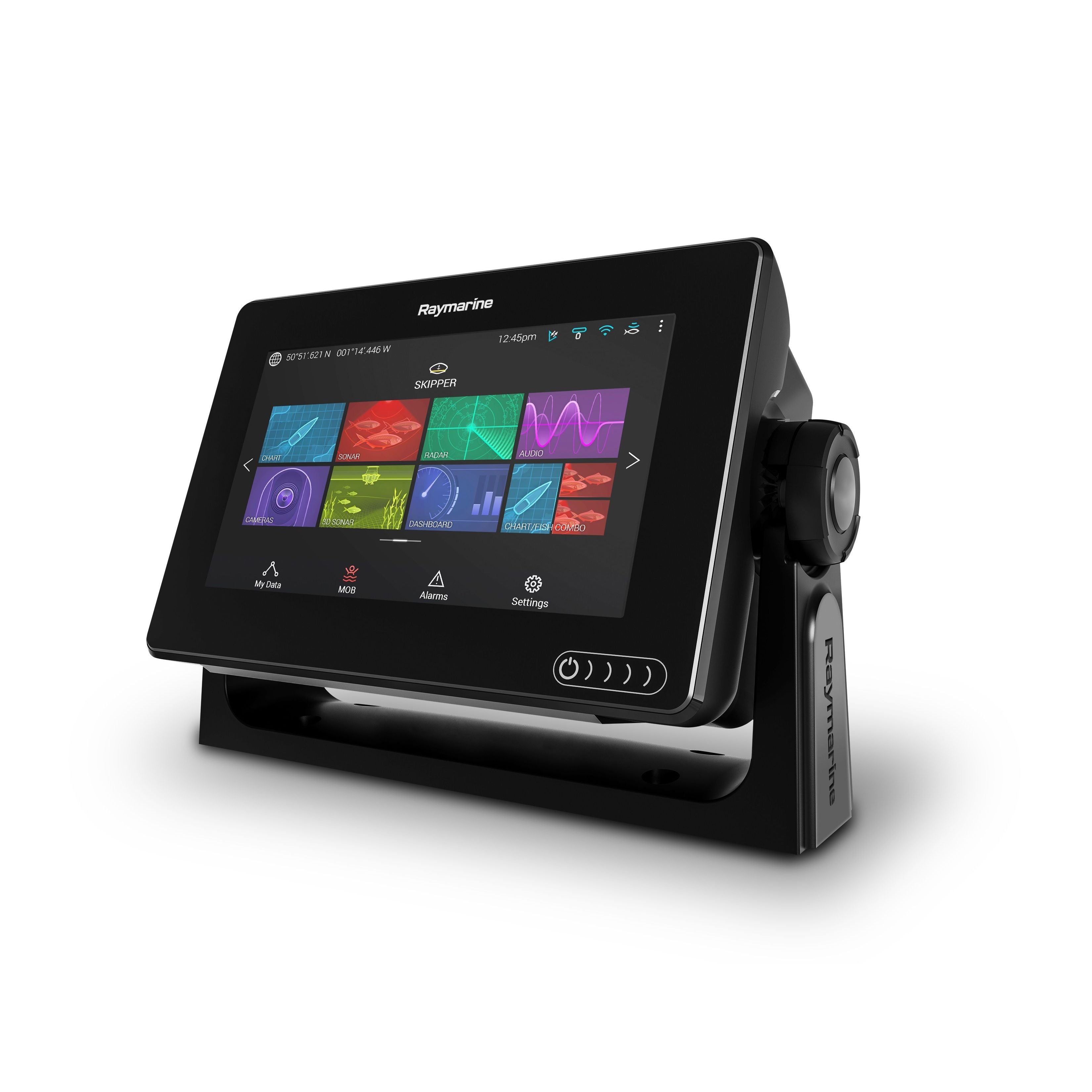

The display can be top mounted, flush mounted, bracket mounted, or rear mounted, which helps when you are working around a crowded console or refitting an older dash. In this package, the unit comes with the trunnion bracket, mounting hardware, panel gasket, and a suncover, so you can choose a bracket installation or a cleaner panel finish based on the helm layout.

The CPT-100DVS is a transom-mount transducer, so installation is usually straightforward on boats where the transom gives it clean water flow. Before drilling, it is worth checking hull steps, strakes, bunks, and trailer clearance so the transducer sits where it can read cleanly and stay protected during launch and haul-out.

Compatibility and fit

This Axiom 7 DV can read LightHouse charts, Navionics, and C-MAP cartography, and the included North America LightHouse microSD card gets the display ready for coastal and inland navigation right out of the box. The built-in GPS receiver makes it a practical main screen for smaller helms or a dedicated sonar and chart screen in a larger setup.

On boats already using NMEA 2000 or Raymarine network gear, it can share data with compatible instruments, Evolution autopilot components, radar, cameras, marine audio, and additional sonar sources. It is a strong fit for owners who want one compact display to handle navigation and fishfinding now, with room to expand later as the rest of the electronics package grows.

What’s included

• Raymarine Axiom 7 MFD with trunnion adaptor pre-installed
• Trunnion mounting bracket
• Trunnion knobs x 2
• Suncover for trunnion mount
• Panel mount gasket for surface or flush mounting
• M5 x 58 threaded studs x 4
• M5 thumb nuts x 4
• Documentation pack
• Power and NMEA 2000 cable with 1.5 m power lead and 0.5 m NMEA 2000 lead
• LightHouse NC3 North America lakes and coastal tides stations microSD card
• CPT-100DVS transom-mount transducer
