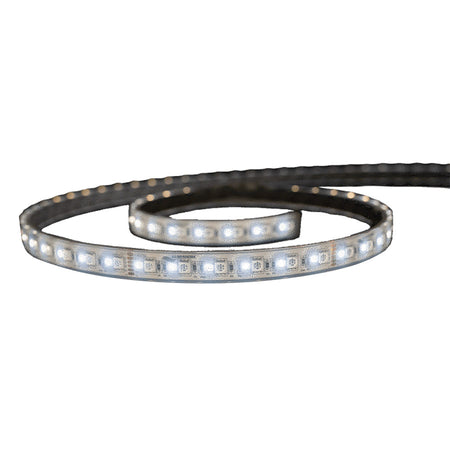

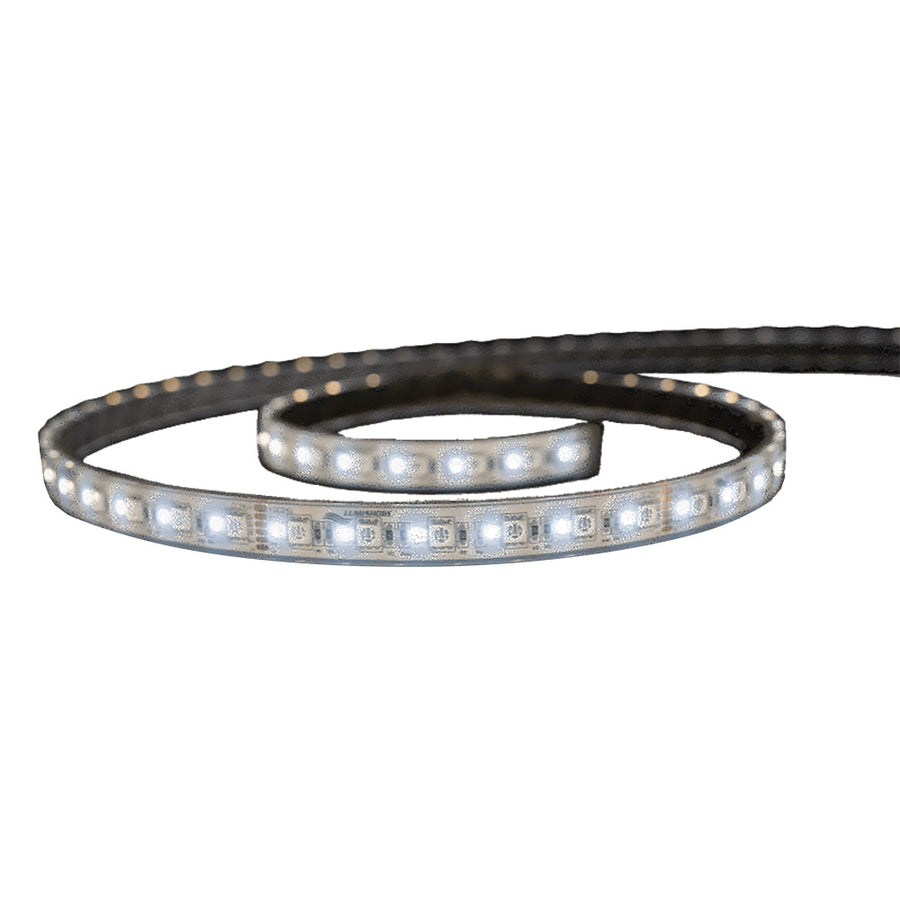

Lumishore LUX SL180 LED Strip Light, CRGBW, White 2700-6500K, IP68, 1000mm
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Lumishore 010-04371-00 is a 1 m (39.4 in) LUX SL180 LED strip light with IP68 sealing, 180 LEDs per meter, and a 5-channel CRGBW output that shifts from full color to tunable white light from 2700K to 6500K.
The strip is fully encapsulated and potted for wet locations, with a low-profile 14.5 mm x 5 mm cross section that tucks into toe-kicks, under-gunwale lips, locker edges, and other tight runs. It is UV resistant, salt-spray tested, and intended for above-water installations in indoor or partially covered outdoor areas.
Power and control run through a LUX Strip Light Driver, with plug-and-play electrical connections. A voltage-stabilized driver accepts 10.5 to 31 V DC, which covers typical 12 V and 24 V onboard systems.
Key features
- 1 m (39.4 in) strip length with a 14.5 mm x 5 mm cross section for clean, hidden installs
- IP68-rated, fully encapsulated and potted construction for wet areas above the waterline
- 180 LEDs per meter for smooth light output along the full length
- CRGBW 5-channel lighting: red, green, blue, warm white, and cool white in one strip
- Tunable white range from 2700K to 6500K for warm cabin light through crisp task lighting
- Mounts with adhesive backing and a screw-clip installation option when you want a mechanical hold
- UV resistant and salt-spray tested for real cockpit, cabin, and locker environments
- Runs on a LUX Strip Light Driver; a single driver supports multiple strips up to 10 m (32.8 ft) total
- Control options include a customer-supplied momentary switch or an EOS-LUX Command Center
Installation and setup
Plan the run first so the strip can sit flat and stay supported along its length. Clean and dry the mounting surface before applying the adhesive backing, and use the screw-clip method where heat, vibration, or surface texture makes adhesive-only mounting a compromise.
Keep the driver in a dry, serviceable spot, then route the strip cable away from sharp edges and moving gear. This strip is meant for above-water applications only, so avoid locations that can become submerged.
Electrical and control
This strip is part of a driver-based system, so confirm you have the correct LUX Strip Light Driver and the control method you plan to use before final mounting. A voltage-stabilized driver input range of 10.5 to 31 V DC supports common 12 V and 24 V DC boats, which helps when battery voltage varies under load.
If you are lighting multiple zones, account for the total strip length on the driver. A single driver supports multiple SL180 strips up to 10 m (32.8 ft) combined, which helps keep long runs tidy while staying within the system limits.
Use cases on board
This strip is a good match when you want one run of lighting that can do soft warm-white cabin ambience and color accents for steps, toe-kicks, under-gunwale lighting, or locker illumination. It also suits installs where you need IP68 sealing and a slim profile, but you still want the control flexibility that comes with a driver-based system.
