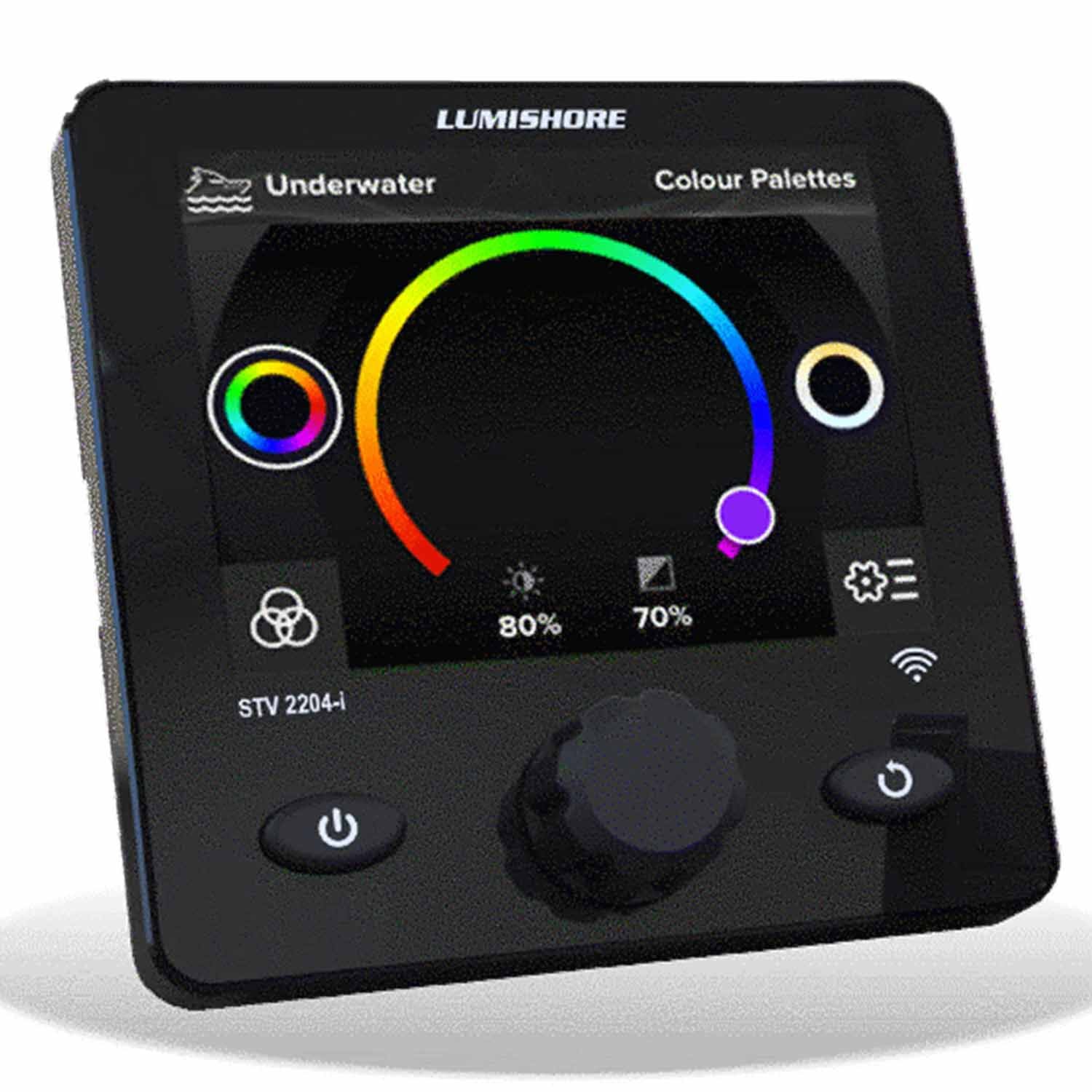

Lumishore EOS-LUX-SUPRA STV 2204i Lighting Control Display, For Lumi-Link Command Center, 3.5in LCD Touchscreen, Rotary Dial, IP68, 10.5-31V
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Lumishore 010-04362-00 is a dash-mount touch display with a rotary dial for controlling compatible Lumishore LUX above-water lights and EOS and SUPRA underwater lights. It runs on 10.5 to 31 V DC (12/24 V systems) and uses a 3.5 in full-color LCD touchscreen for day-to-day lighting control from the helm or cockpit.
It can be used as an extra control point alongside an MFD, or as the main lighting controller in installations where you want a dedicated panel. The interface covers color selection, dimming, zone control, presets, and effect modes, with the dial giving steadier control when the boat is moving.
The housing is IP68-rated and the Ethernet connection can be sealed with the supplied IP68 RJ45 cover, which matters when the unit is mounted where spray and washdowns happen. Built-in Wi-Fi also allows lighting control from a phone, tablet, or any device with a web browser once the system is set up on board.
Key features
- 3.5 in full-color LCD touchscreen with rotary dial control for quick changes and steady adjustments underway
- 10.5 to 31 V DC input for 12 V and 24 V systems; up to 0.3 A at 12 V (0.15 A at 24 V)
- IP68 water-ingress rating, plus a supplied IP68 RJ45 cover to seal the Ethernet connection
- Panel-mount install with an 83 mm x 83 mm cutout; fits panel thickness from 2 mm to 25 mm
- Ethernet connection using shielded Cat5e (or better) cable to an EOS-LUX Command Center or vessel network port
- Built-in Wi-Fi for control from smart devices and web browsers on the same network
- ISO 8846 ignition protected; bonding is not required
- Supports adding multiple displays so lighting can be controlled from more than one station
What’s included
- EOS-LUX SUPRA Display 2204-i unit
- Panel-mount bracket
- Mounting screws and bolts
- Protective sun cover
- RJ45 IP68 cover
Compatibility and fit
This display is part of an EOS-LUX-SUPRA lighting control setup and connects by Ethernet (RJ45) into the system. It works with an EOS-LUX Command Center, and SUPRA installations use a SUPRA Bridge module in the same networked control path.
Plan the mounting location with enough behind-panel clearance for the cable entry and bracket. The 83 mm x 83 mm cutout is the critical measurement for fit, and the bracket system supports panels from 2 mm to 25 mm thick.
Installation and setup
Mounting is a straightforward panel install using the included bracket. For exterior installs or anywhere water can reach the back of the unit, seal between the back of the controller and the mounting surface with an appropriate marine sealant.
When securing the bracket, keep fastener torque reasonable (up to 1 Nm per screw) to avoid distorting the panel or stressing the housing. Use the sun cover when the display is not in use to help protect the screen from UV and weathering.
Electrical and system integration
Power is 10.5 to 31 V DC using the red (V+) and black (ground) leads, so it fits typical 12 V and 24 V DC boats. Protect the circuit with a suitable fuse or breaker, and do not connect the unit to mains AC.
The display ties into the lighting system over Ethernet. Use shielded Cat5e (or better) cable and keep the RJ45 connection protected with the supplied IP68 cover in exposed locations. The power cable is 2000 mm long, which helps when routing from a distribution panel to the dash.
On-board use
This display makes the most sense on boats with multiple lighting zones or color-change lighting where you want quick control at the helm, cockpit, or flybridge without digging through other screens. The touchscreen is fast for color and mode changes, while the dial is handy when your hands are wet or the boat is bouncing.
It is a good match for cruisers and anglers who run lighting at the dock and at anchor, as well as boats that want a dedicated control point for underwater and accent lighting without relying on a single station.
