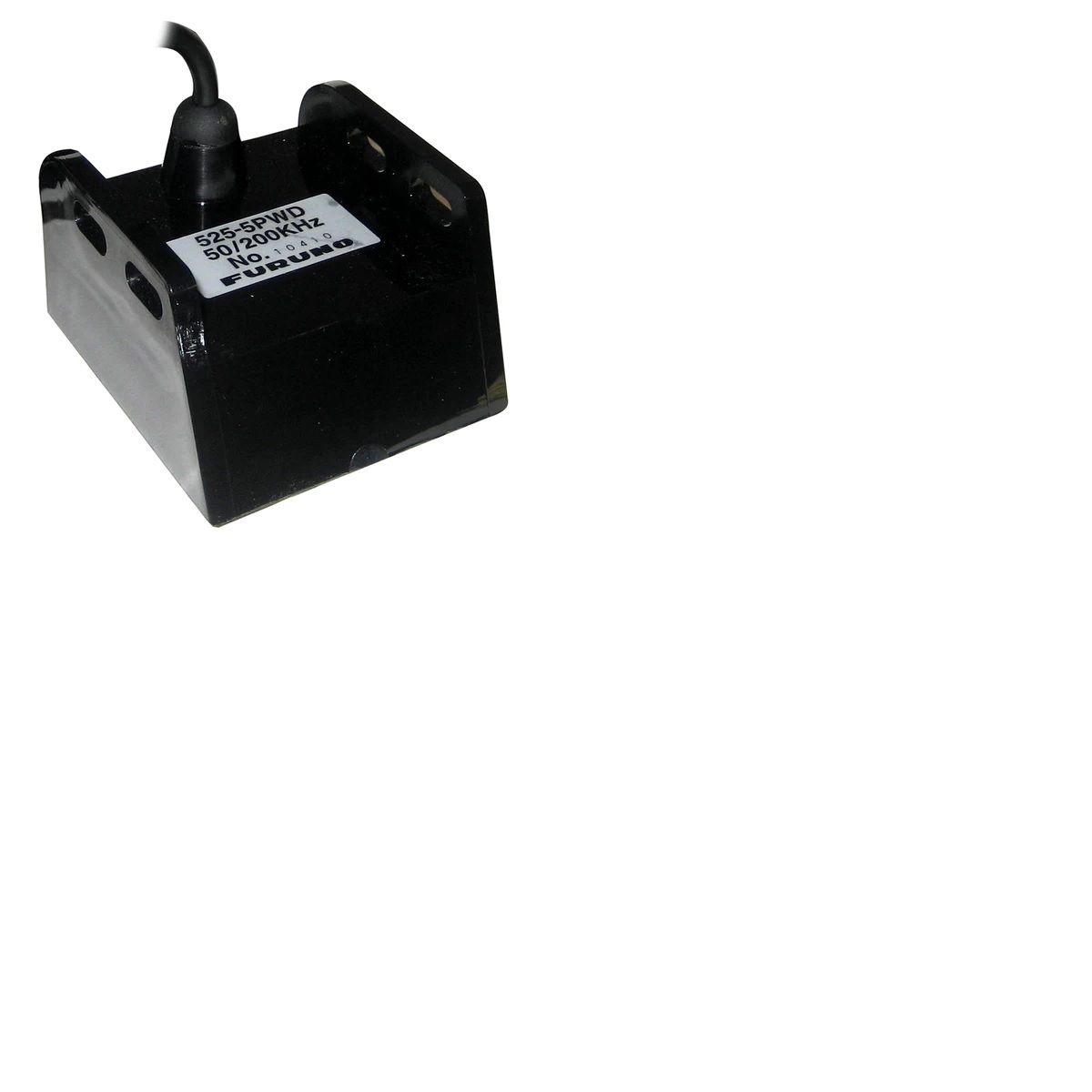

Furuno - 525-5PWD Transom Mount Depth Only 10-Pin Transducer

Reliable and Efficient Transom Mount Depth Transducer

The Furuno 525-5PWD Transom Mount Depth Transducer is designed for accurate depth readings, making it an excellent choice for marine navigation and fishing applications. Built with high-performance sonar technology, this transducer ensures reliable depth detection for various water conditions. Its robust plastic construction and transom mount design allow for easy installation on a variety of boat types, ensuring a secure fit and long-lasting durability.

Advanced Sonar Capabilities

This transducer operates at dual frequencies of 50 kHz and 200 kHz, allowing for versatile performance in both deep and shallow waters. The wide 46-degree beam angle at 50 kHz provides extensive coverage for deeper readings, while the narrow 10-degree beam angle at 200 kHz enhances precision for detailed bottom imaging.

Technical Specifications

• Power Output: 600 Watts
• Frequency: 50/200 kHz
• Beam Angles: 46° at 50 kHz, 10° at 200 kHz
• Mounting Type: Plastic transom mount with bracket
• Cable Length: 8 meters
• Connector Type: 10-pin

Highlights

• Dual-frequency operation for optimized depth readings
• Wide beam angle for deep-water coverage and narrow beam for precision scanning
• Durable plastic transom mount for secure and easy installation
• Comes with a long 8-meter cable for flexible mounting options
• Reliable performance for marine and fishing applications

This transducer is an excellent addition to any marine electronics setup, providing the accuracy and durability needed for confident navigation and depth tracking.
