JL Audio MediaMaster 105 MM105 Marine Stereo, NMEA 2000, IP67, 4-Zone, 3.5in Full-Color LCD

Overview

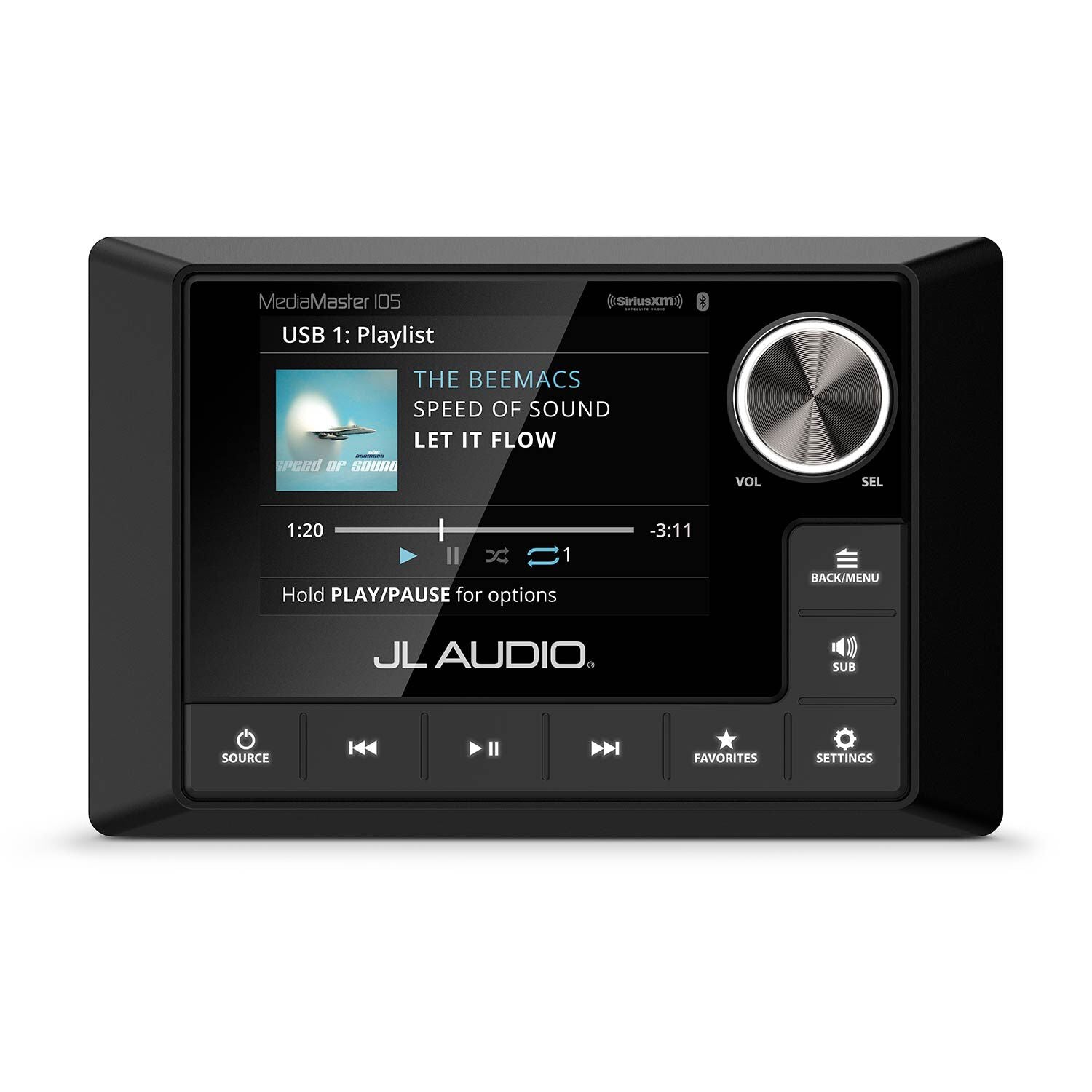

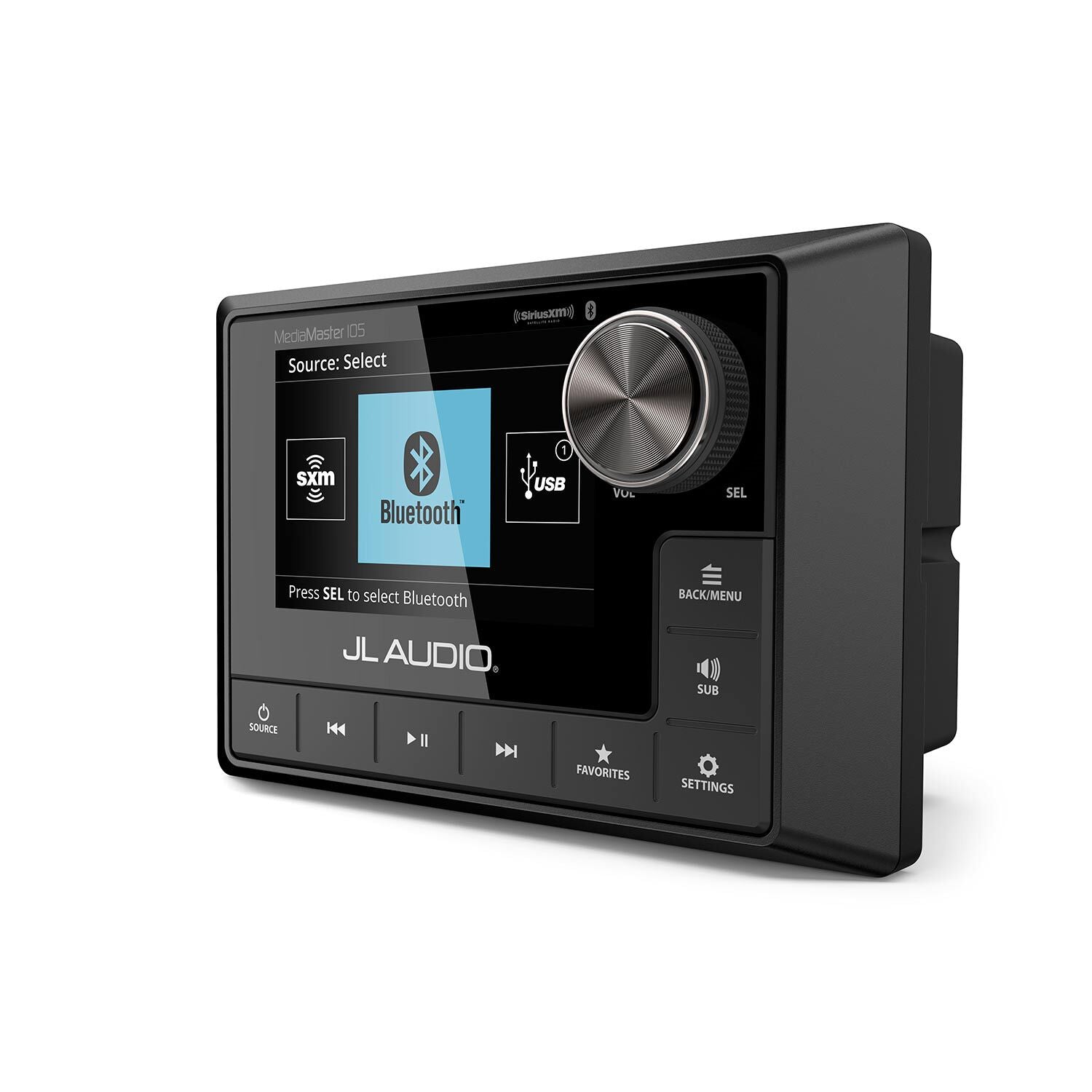

The JL Audio 010-03132-00 is a MediaMaster 105 marine source unit with a 3.5-inch TFT color display (320 x 480) and four independent audio zones for boats that run separate amps and speaker groups.

It operates on 12V negative-ground systems with an allowable input of 10 to 15.9 VDC and uses a 5A fuse. Each zone provides low-voltage RCA outputs, with a stereo pair plus a mono subwoofer output per zone, so it feeds external marine amplifiers instead of driving speakers directly.

For planning fit behind the dash, the chassis measures 5.94 in x 3.90 in x 3.94 in (151 mm x 99 mm x 100 mm) with a mounting hole of 4.72 in x 3.25 in (120 mm x 83 mm). The front is rated IP67 for wet helm installs, but it should not be submerged or subjected to high-pressure spray.

Key features

• 12V-only power requirement (10 to 15.9 VDC allowable) for negative-ground systems, with a 5A fuse and 1.5A maximum current draw
• Four-zone, 12-channel preamp output layout: a stereo pair plus mono subwoofer RCA outputs for each zone

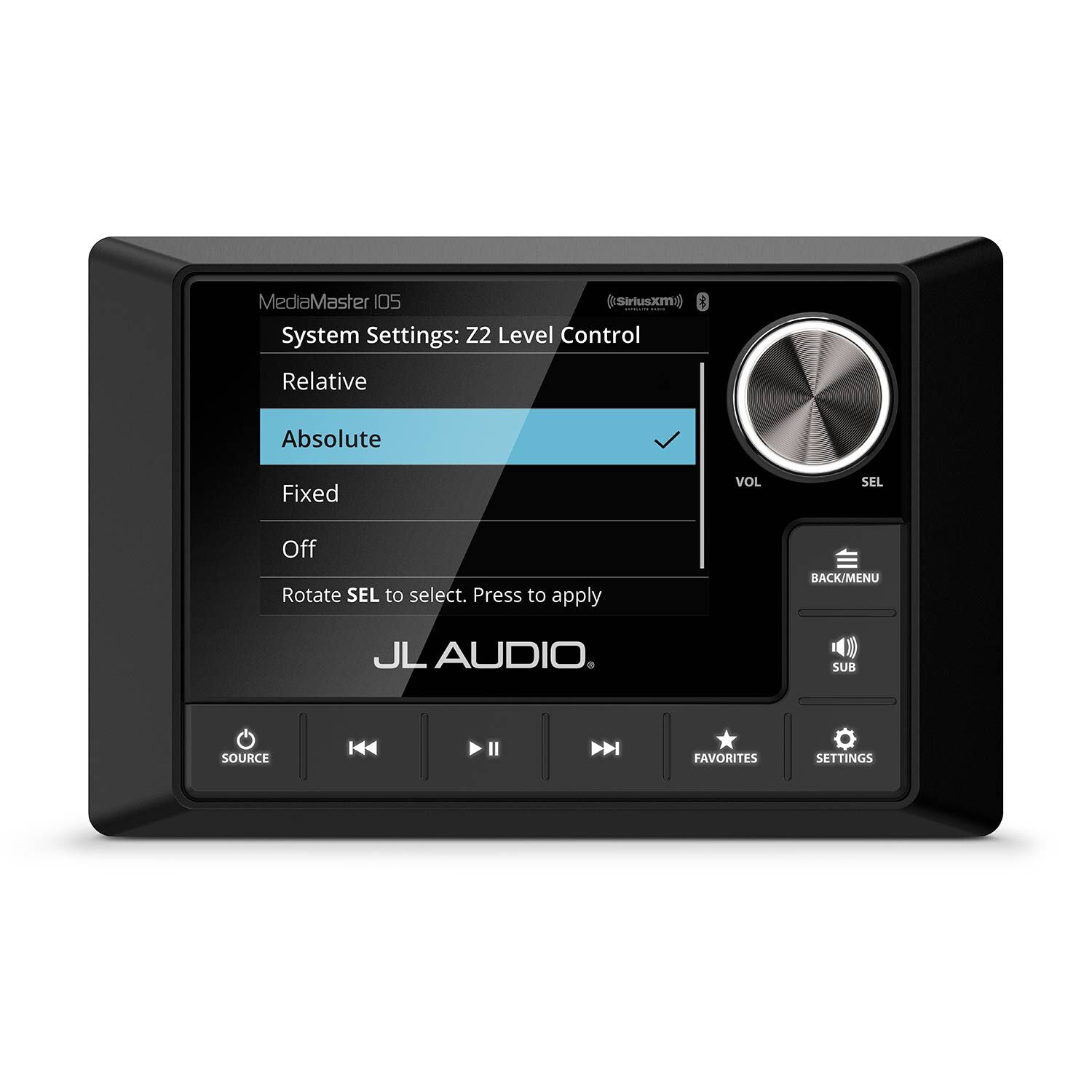

• Output modes per zone include Relative, Absolute, Fixed, or Off, with Fixed level options of 4V, 2V, or 1V RMS
• NMEA 2000 connection with LEN 1 using a Micro-C connector for network integration with compatible controllers and displays

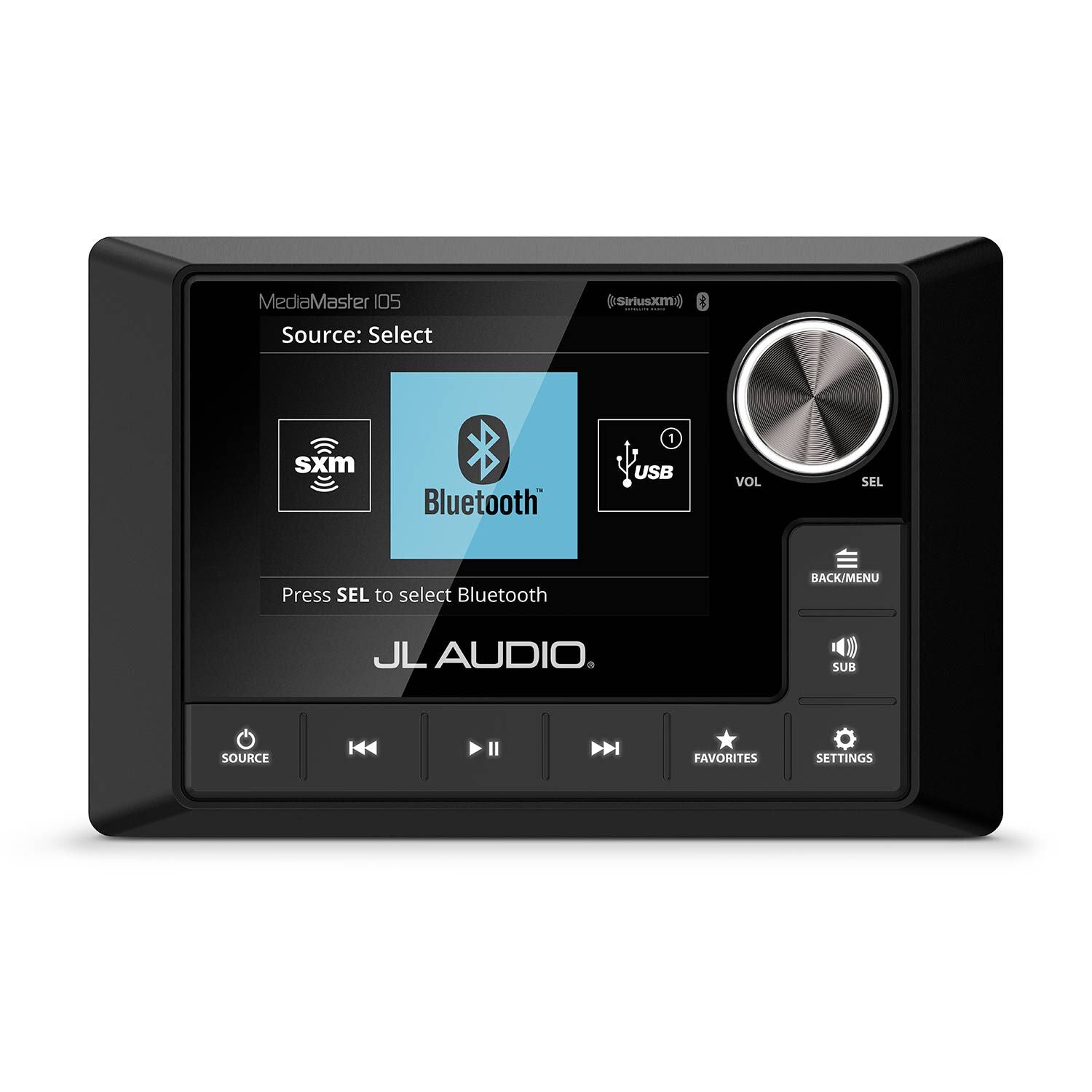

• Bluetooth audio streaming with Qualcomm aptX support, up to 35 ft (11 m) range, and pairing for up to 8 devices

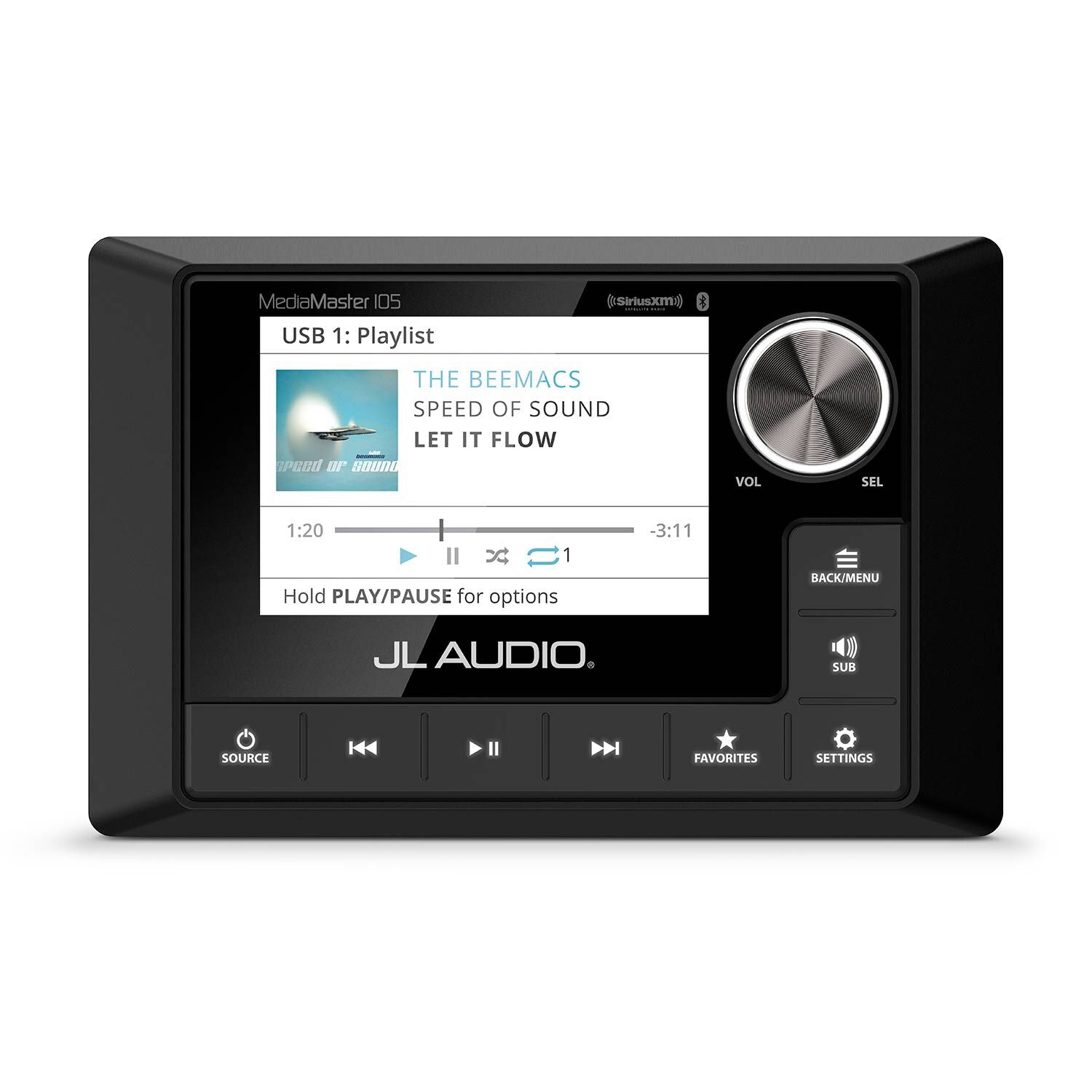

• Dual USB ports for media playback: USB 1 supports iPhone or USB storage with 2.1A charging, USB 2 supports USB storage with 500 mA output
• Two stereo RCA AUX inputs with selectable 2V or 1V RMS input sensitivity

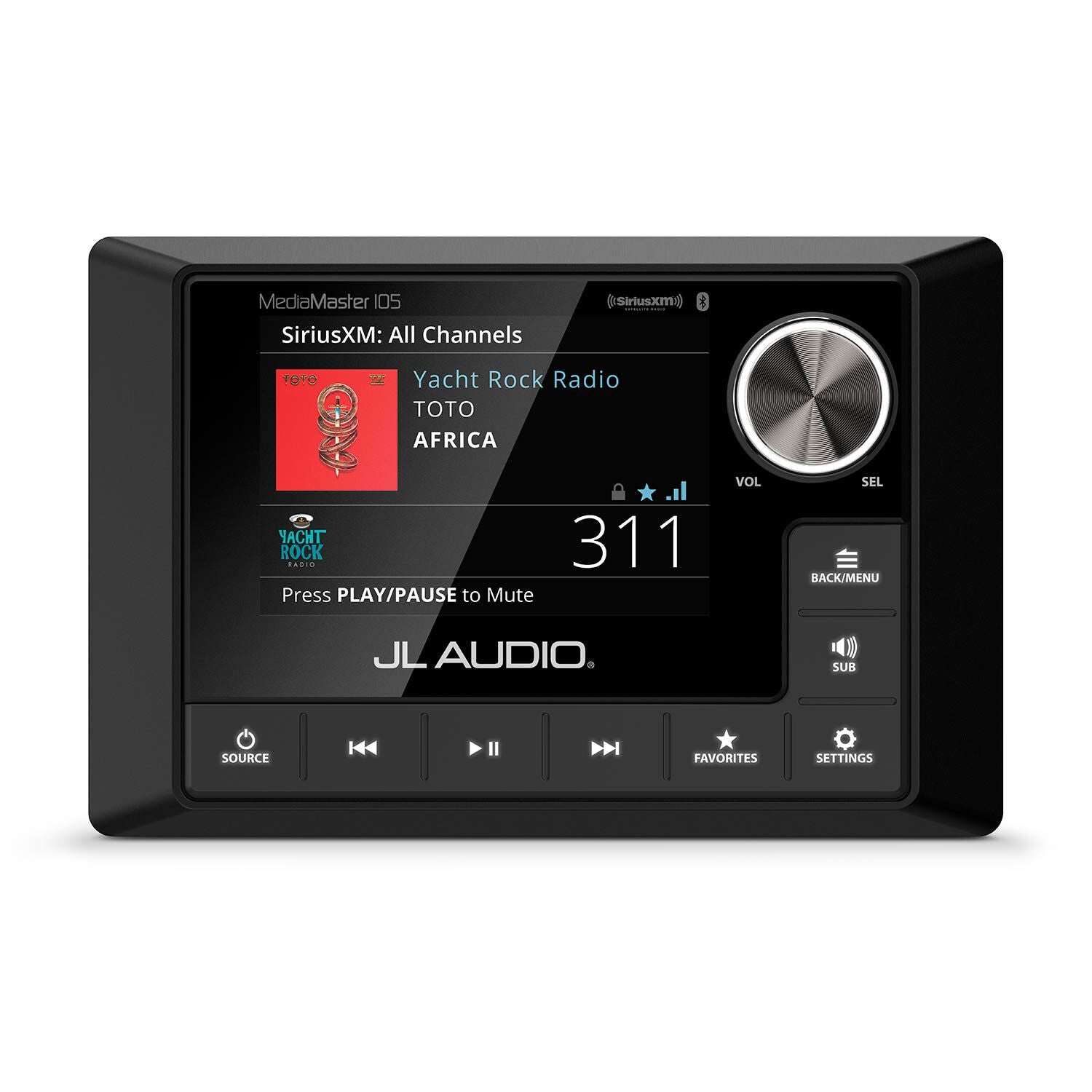

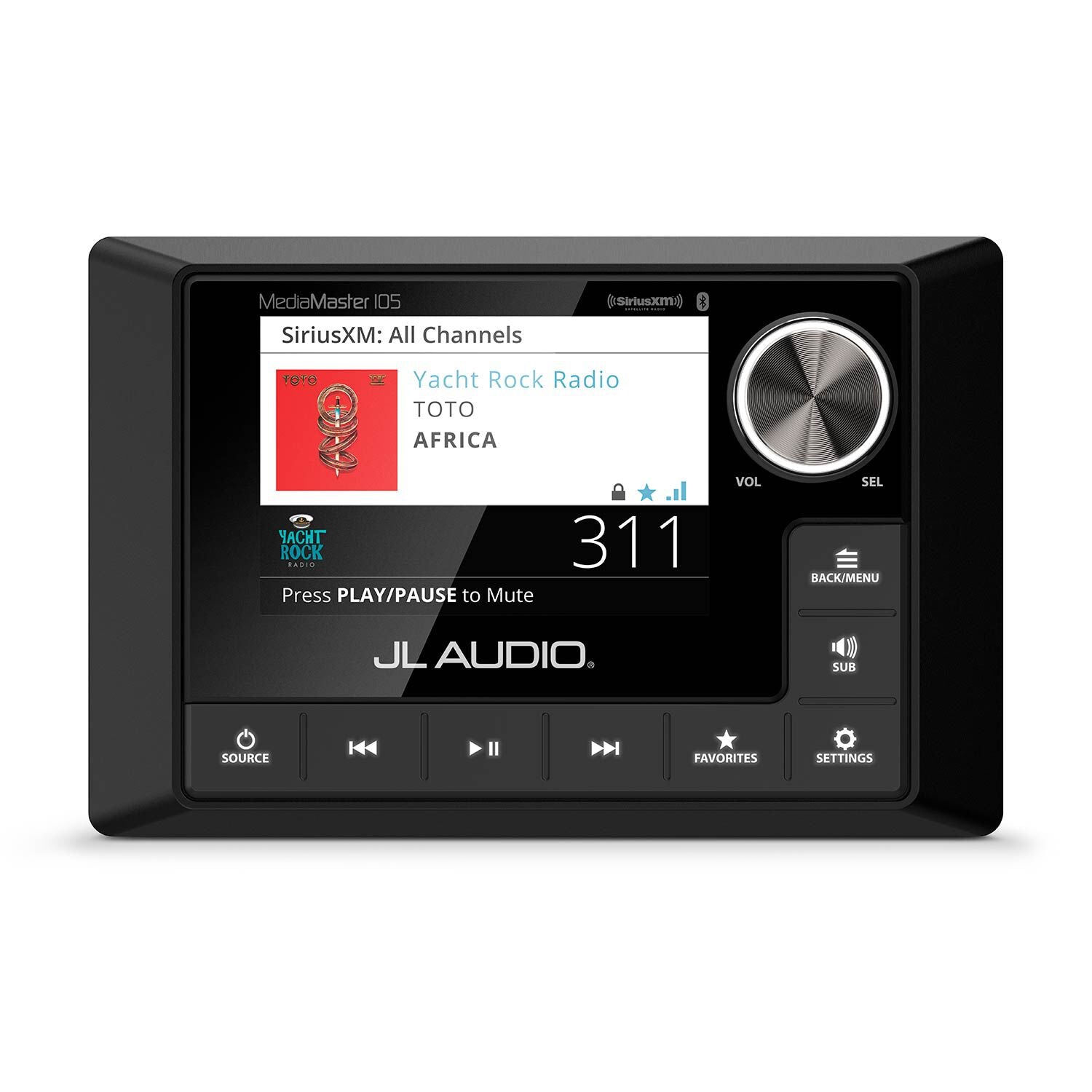

• AM/FM tuner with RDS support, plus DAB+ tuning capability; SiriusXM support with a SiriusXM Connect tuner (sold separately)

Installation and wiring

Mount it in a location that stays ventilated and protected from direct, heavy spray. Power is a switched +12V feed (red) and ground (black), with the 5A fuse placed at the power connection point. There is also a +12V illumination input (orange) for tying into your dash lighting, and an amplifier remote turn-on output (blue) for triggering external amps.

On 24V boats, plan on a proper DC-DC conversion to a stable 12V supply before this unit. If your boat sees voltage sag at start-up or when heavy loads kick on, the built-in low-voltage alert behavior is a useful reminder to check battery condition, cabling, and charging system health.

Audio system planning

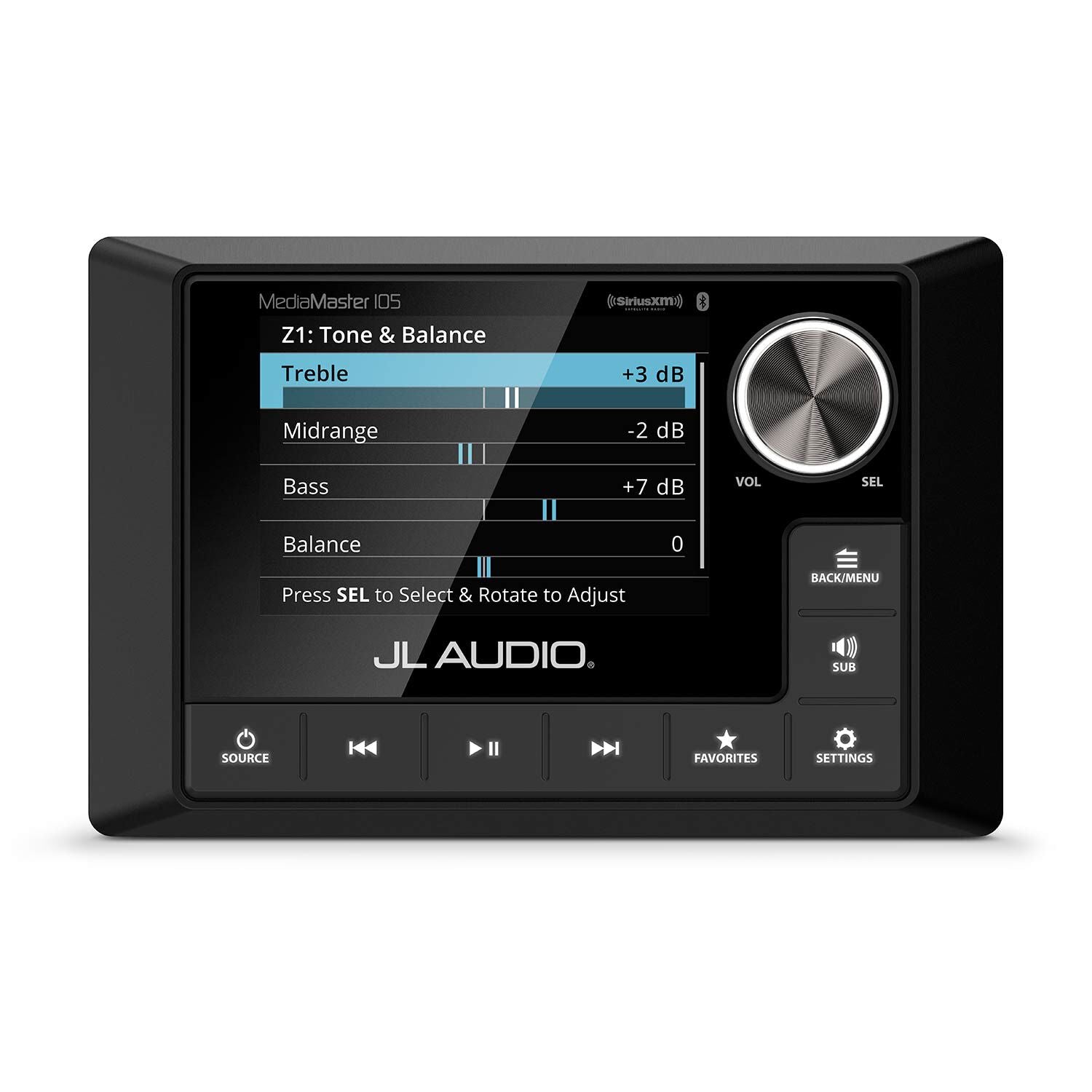

This layout works well when your boat has separate listening areas that need different volume levels, like cockpit and cabin, or a tower and the main deck. Since each zone has its own RCA outputs, you can route signals cleanly to multiple amplifiers and keep wiring tidy in the helm and electronics bay. Zone naming and per-zone settings help keep control straightforward once the system is tuned.

Connections and day-to-day use

Bluetooth is handy for quick playback from phones and tablets, while USB ports cover stored music and keep devices topped up. For hardwired sources, AUX 1 and AUX 2 accept standard stereo RCA inputs. If you run an NMEA 2000 backbone, the Micro-C connection makes it easy to place the stereo on the network so it can show up as a named device and integrate with compatible control options.

This unit is a good match for boaters building a multi-amp system where zone control matters, like cruisers with an interior cabin and an open cockpit, or fishing and tow boats that split speakers across helm, transom, and tower areas.
