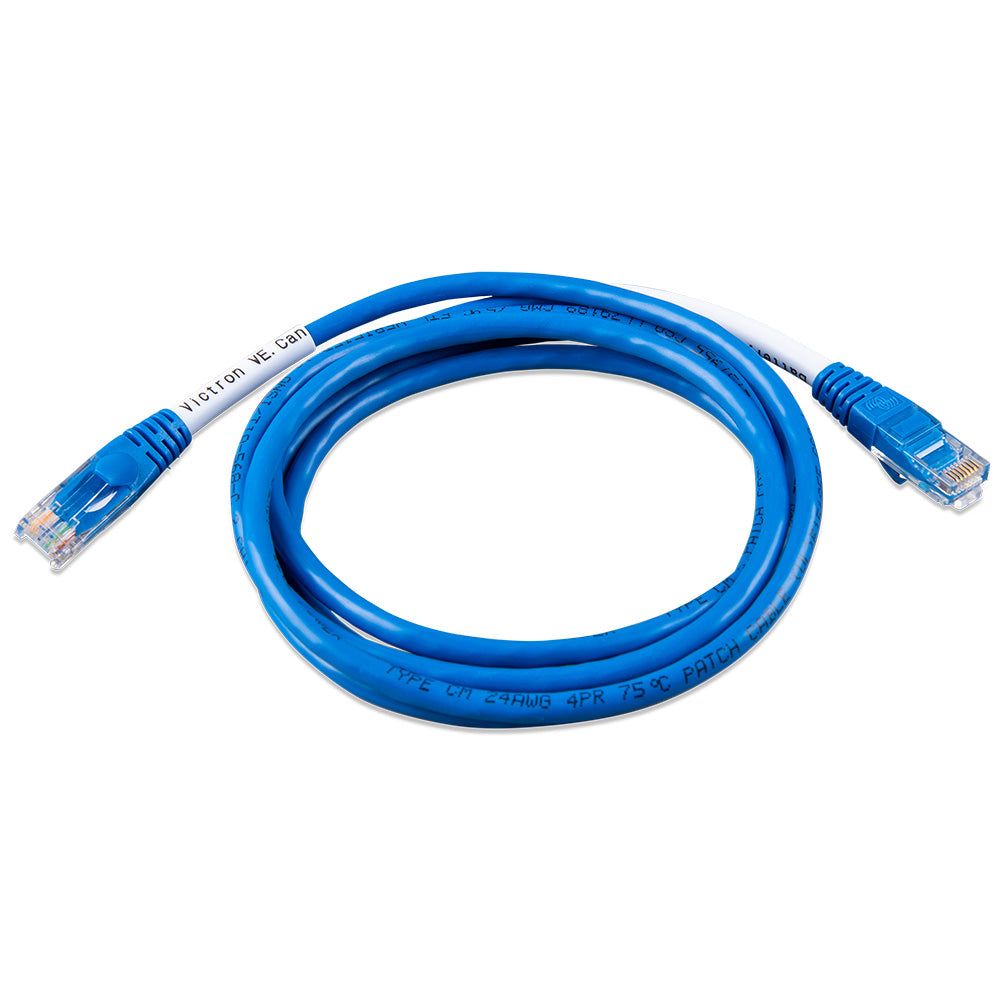

Victron Energy VE.Can to CAN-bus BMS Type B Cable, 1.8m

Overview

The Victron Energy ASS030720118 is a VE.Can to CAN-bus BMS Type B cable for linking a compatible CAN-bus enabled battery to a Victron system. It is a 1.8 m cable, about 5.9 ft, used where the battery installation calls for the Victron Type B CAN-bus BMS wiring layout.

This cable is commonly used in marine Victron installations where a GX device needs battery data from a supported third-party lithium battery. On a boat, that communication link matters for monitoring state of charge, alarms, and system behavior from the helm, nav station, or electrical locker.

One end is labeled for the CAN-bus BMS side at the battery, and the VE.Can end connects to a compatible Victron GX device through its VE.Can or BMS-Can port. Battery brand and model compatibility should be checked against the battery installation guidance before fitting, since Victron Type A and Type B CAN-bus BMS cables use different pin layouts.

Key features

• 1.8 m cable length gives practical reach for nearby battery-to-GX installations in compact marine electrical spaces.
• Type B CAN-bus BMS wiring for battery systems that require the Victron Type B cable layout.
• Connects a CAN-bus enabled non-Victron battery to a Victron GX-based monitoring and control system.
• VE.Can side connects to a compatible GX device through the VE.Can or BMS-Can port.
• Battery side is labeled for the CAN-bus BMS connection, helping reduce mix-ups during installation.
• Useful for lithium battery installations where battery communication is needed for system monitoring rather than only basic voltage sensing.

Installation and setup

Install the cable with the CAN-bus BMS end at the battery and the VE.Can end at the Victron GX device. The Type B pin-out is specific, so it should not be treated as a generic straight-through network patch lead unless the battery documentation explicitly allows that wiring.

After connection, configure the GX device for the battery system being used. In many installations, a VE.Can terminator may also be required in the remaining VE.Can socket on the GX device, depending on the full network layout.

Compatibility and fit

This cable is for CAN-bus enabled batteries that call for the Victron VE.Can to CAN-bus BMS Type B cable. Examples commonly associated with the Type B cable include AXIstorage 7S and 9S, BMZ, BSLBATT Lithium battery, LG Chem RESU, Pylontech US2000, US3000, and UP2500, Solar MD BMS EX, and Freedom Won eTower.

It is a good match for marine systems built around Victron monitoring hardware, especially cruisers, fishing boats, and off-grid vessels using lithium battery banks where the battery BMS needs to communicate with the onboard power system.
