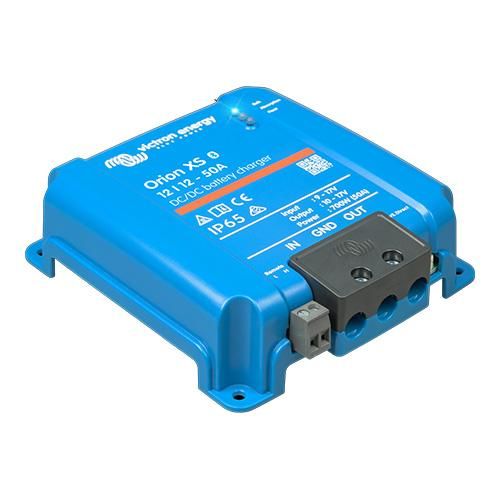

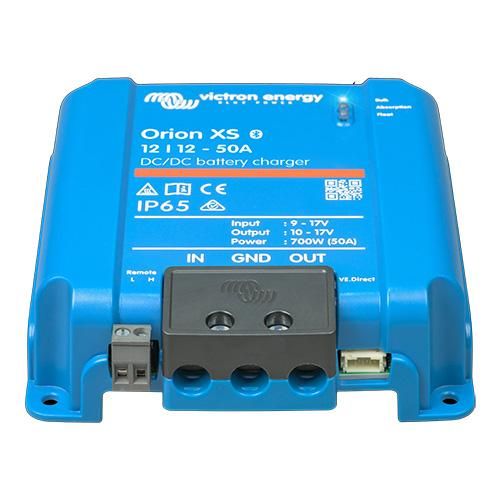

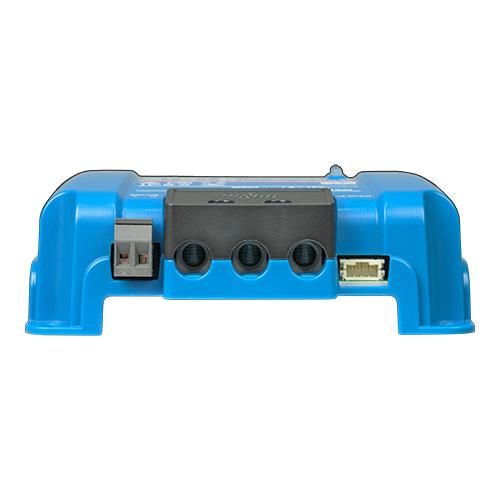

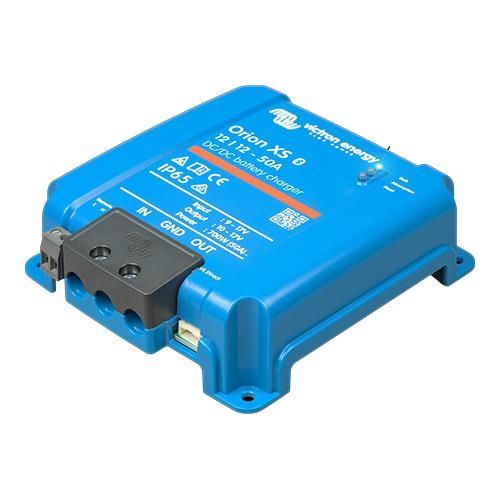

Victron Energy Orion XS 12/12-50A DC-DC Battery Charger, 700W

Overview

The Victron Energy ORI121217050 is an Orion XS 12/12-50A DC-DC battery charger for charging a 12V service battery from a 12V starter battery or alternator source. It is a good fit for boats that need controlled alternator charging for house batteries, especially where space is tight and the charger may be mounted near an engine room, battery compartment, or electrical panel.

This unit supports a 9-17V input range and an adjustable 10-17V output range, with input and output current settings from 1A to 50A. At a typical 14V charging voltage, it delivers up to 700W of continuous output power up to 40°C with proper cooling, so it can handle serious service-bank charging without taking over the installation space.

Bluetooth Smart and the VictronConnect app make setup and monitoring straightforward, while VE.Direct and VE.Smart Networking allow the charger to work as part of a broader Victron system. The IP65 housing, fanless construction, and compact 137.3 x 123.1 x 40mm size make it practical for marine electrical installations where dust, spray, heat, and vibration are part of daily use.

Key features

• 12/12-50A DC-DC battery charger for charging a 12V service bank from a 12V starter battery or alternator source.
• Adjustable 1-50A input and output current settings help match charging demand to the alternator and battery bank.
• Up to 700W continuous output at a typical 14V charge voltage, with up to 98.5% efficiency.
• Bluetooth Smart support allows setup, monitoring, and output voltage adjustment through the VictronConnect app.
• VE.Direct port supports integration with compatible Victron GX devices, including DVCC when firmware requirements are met.
• VE.Smart Networking can receive wireless voltage, temperature, and current sense data from compatible Victron devices.
• IP65 protection helps the housing cope with dust and water exposure in demanding onboard locations.
• Fanless cooling reduces noise and avoids the extra failure point of a cooling fan.

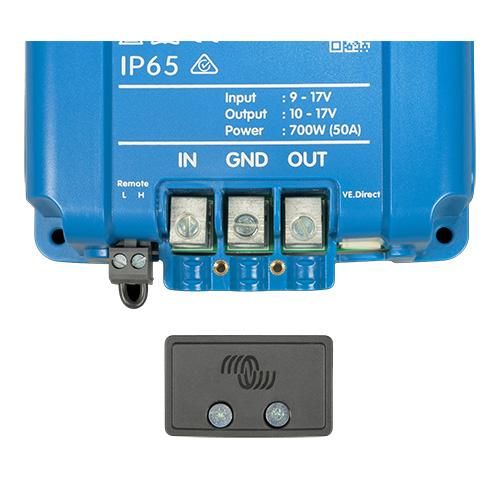

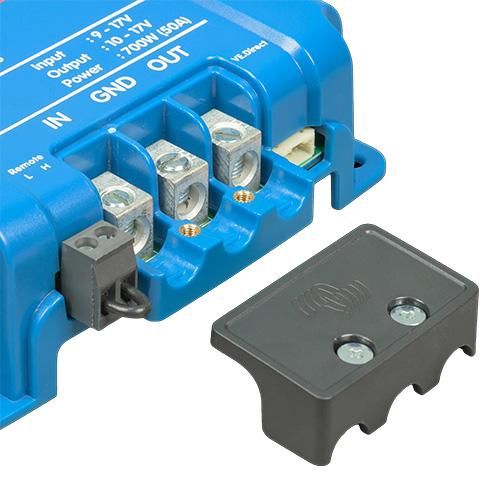

• Screw terminals accept cable up to 4AWG, giving installers room for properly sized conductors on higher-current DC runs.

Installation and setup

The charger should be mounted vertically on a non-flammable surface with the power terminals facing downward. Leave at least 10cm of free space around the unit so heat can move away from the housing, especially in lockers, engine spaces, or enclosed electrical compartments where airflow may be limited.

Mounting close to the battery helps reduce voltage drop, but it should not be installed directly above a battery where gassing could affect the electronics. Cable sizing, overcurrent protection, and routing should be planned for the current setting, cable length, and the layout of the boat’s DC system.

Electrical and system integration

The Orion XS can be configured for different battery charge profiles, including common lead-acid and lithium setups. The adjustable output voltage and current control make it useful when upgrading an older split-charge arrangement to a more controlled charging system for modern house batteries.

For Victron-based systems, Bluetooth setup is useful for standalone installations, while VE.Direct gives a clean path into a GX monitoring environment. VE.Smart Networking can also improve charging accuracy by using shared sensing data from compatible Victron battery monitors or sensors.

Use cases on board

This charger suits cruising boats, fishing boats, workboats, and compact refits where the alternator is used to replenish a service battery while underway. It is especially relevant for vessels with electronics, refrigeration, lighting, pumps, or navigation equipment drawing from a separate house bank.

The compact housing and quiet, fanless operation also make it easier to place in real boat spaces where access, airflow, and noise all matter. It gives the installer a controlled charging stage between the engine battery side and the service battery side rather than relying on a simple direct connection.
