Simrad NSX 3012UW Ultrawide Fishfinder/Chartplotter, No Transducer, 12in Display
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

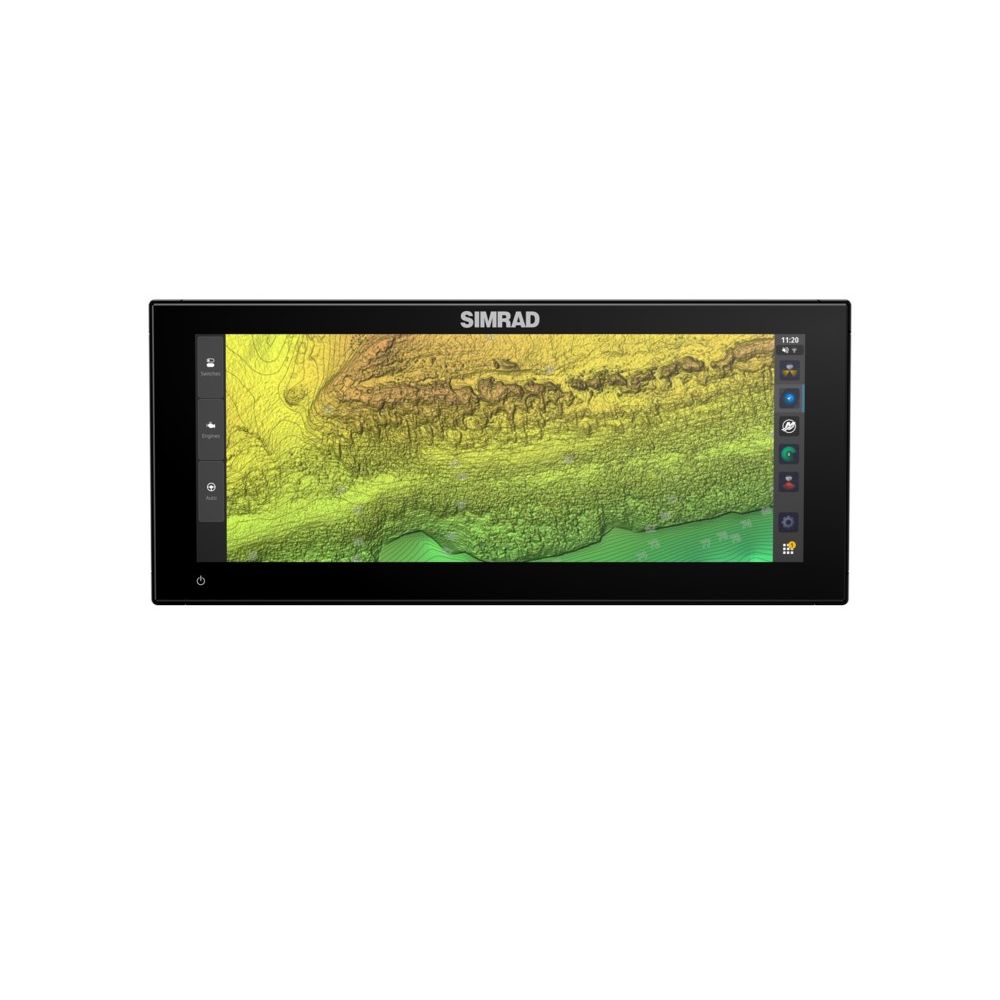

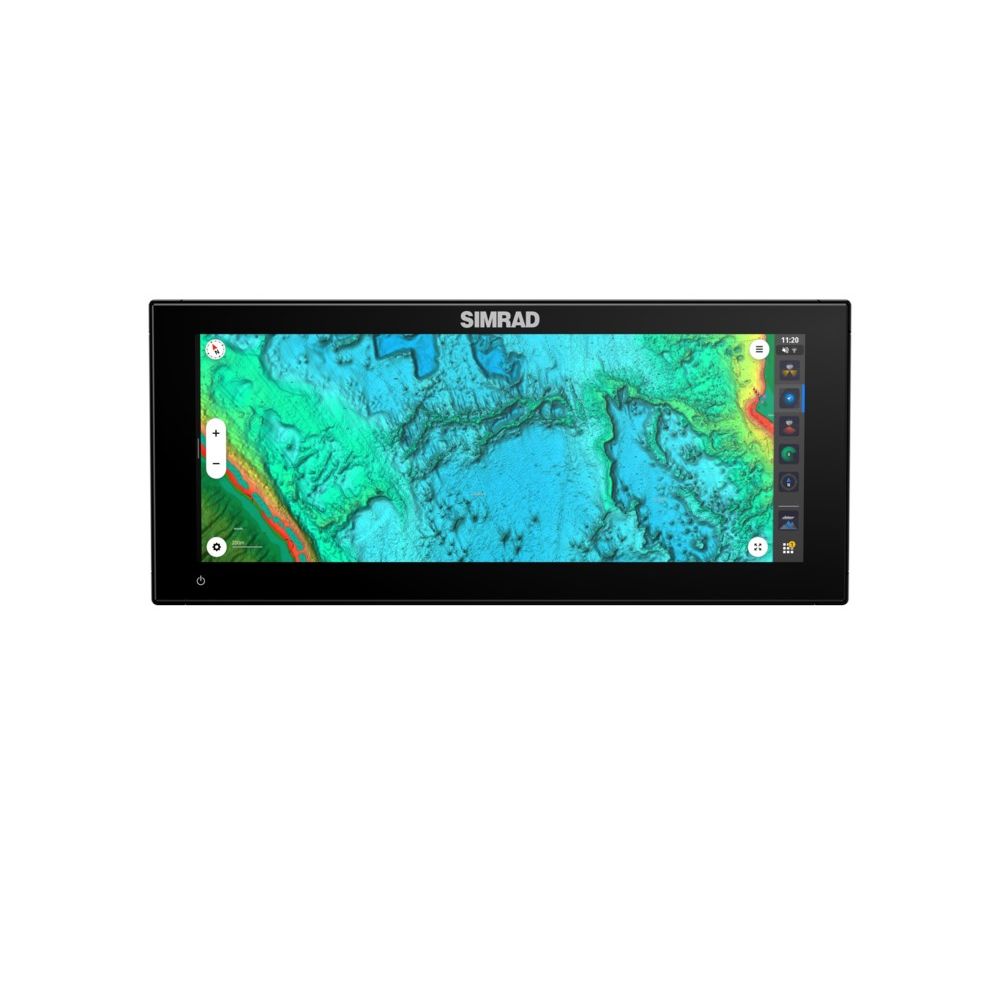

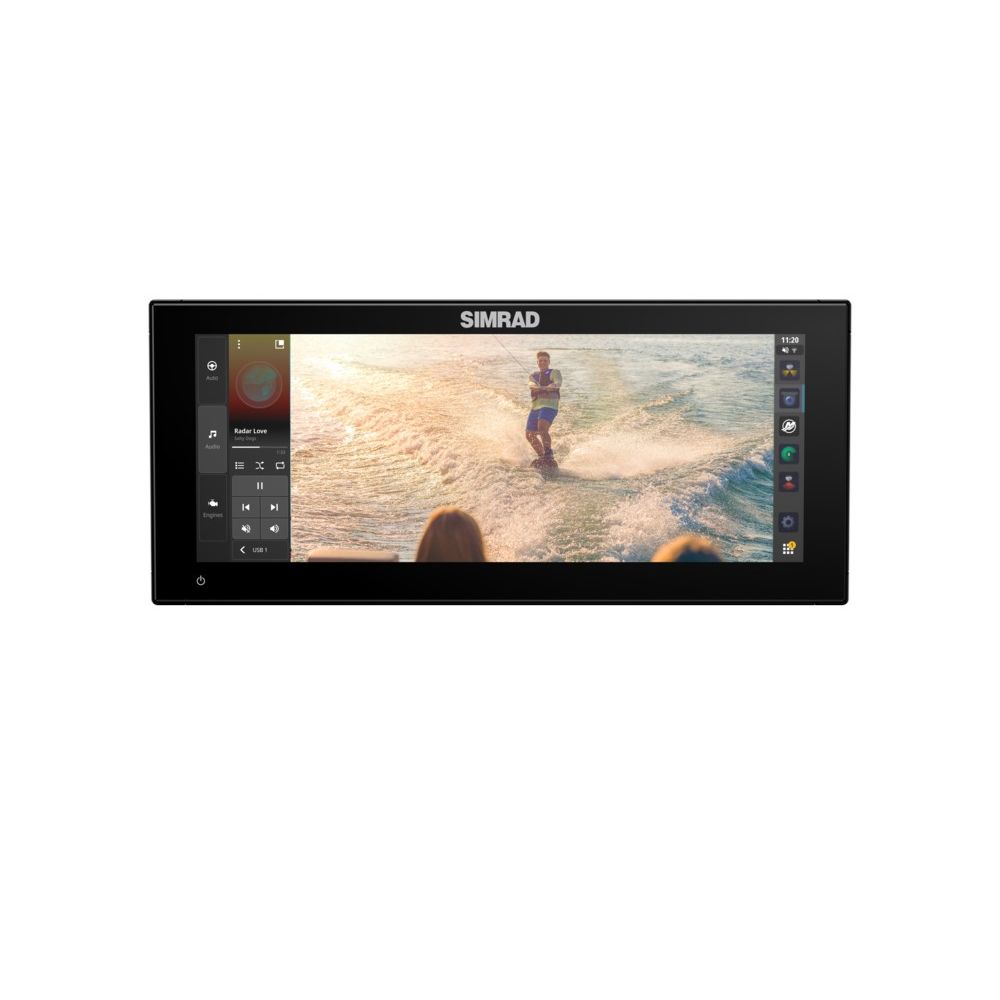

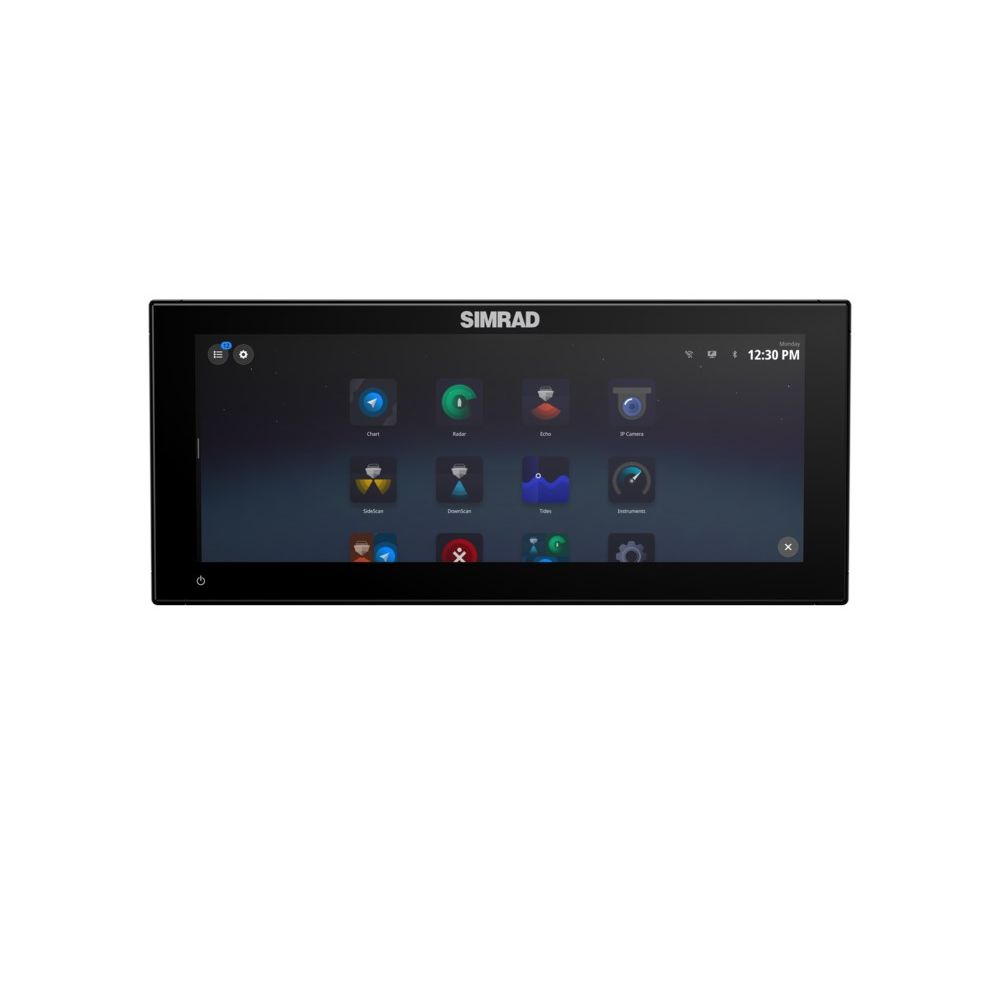

The Simrad 000-16299-001 is a 12-inch NSX 3012UW ultrawide chartplotter and fishfinder display with a 1920 x 720 touchscreen. It runs on 12 V DC (10 to 17 V) with a recommended 3A fuse, and it carries an IPX6 and IPX7 waterproof rating for open helms and washdowns.

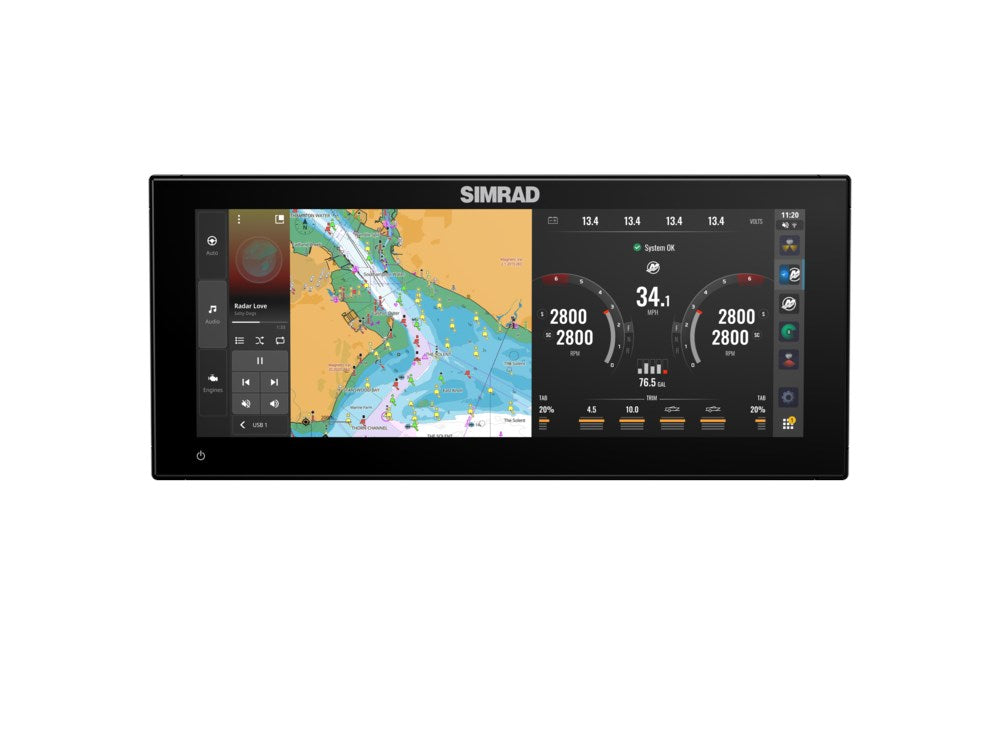

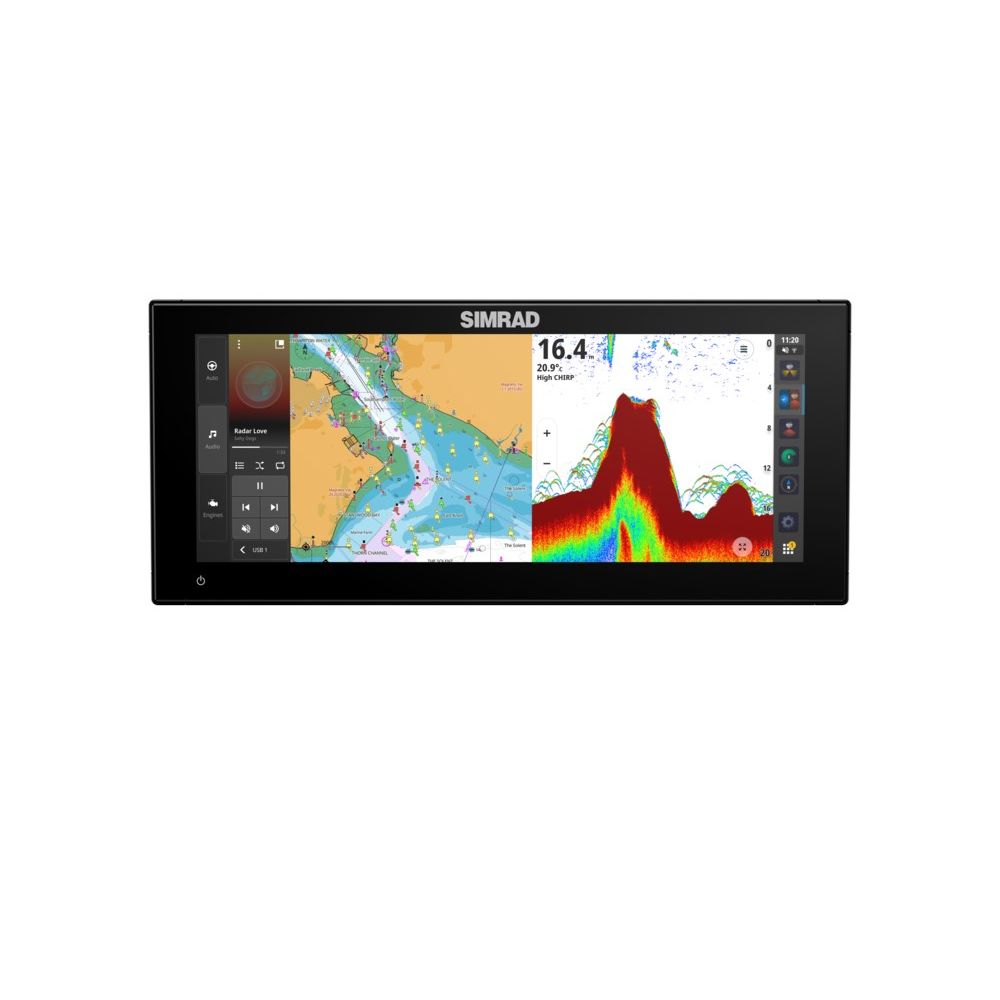

The widescreen format gives you room to keep charts, sonar, and instruments on screen without jumping between pages. Wireless connectivity, NMEA 2000, Ethernet, and USB make it easy to tie into the rest of your electronics at the helm.
This version is supplied without a transducer. The unit has an echosounder port for compatible transducers, so you can match the sonar element to your hull type and the water you fish.
Key features
- 12-inch ultrawide touchscreen with 1920 x 720 resolution, >1000 nits brightness, and 85 degree viewing angles
- 12 V DC power (10 to 17 V) with 3A recommended fuse; max power consumption 19.8 W (1434 mA at 13.8 V)
- IPX6 and IPX7 waterproof rating for wet consoles and regular washdowns
- Built-in GPS with 10 Hz update; supports WAAS, MSAS, EGNOS, and GLONASS
- Connectivity for a mixed helm: NMEA 2000 (Micro-C), single Ethernet/radar port, USB Type-A, Wi-Fi (802.11b/g/n), and Bluetooth 4.0
- microSD slot for chart cards, software updates, and storing user data; supports cards up to 256 GB
- Echosounder port for a compatible transducer; transducer is not included in this package
- Compass safe distance of 50 cm to help avoid interference with a nearby magnetic compass
Compatibility and fit
Plan for a dash location with room for the chassis and cabling behind the panel. The display footprint is 337.0 mm wide x 147.9 mm high x 88.5 mm deep (13.30 in x 5.82 in x 3.48 in) without bracket and without sun cover, and the display weight is 1.5 kg (3.3 lb).
Power is 12 V DC only (10 to 17 V input). On 24 V boats, use a regulated DC-DC converter that supplies a stable 12 V feed within the listed range.
Installation and setup
NSX ULTRAWIDE supports rear mounting in the dash, and the rear-mount hardware is intended for a clean helm finish. Leave practical access to the back of the unit for the power, NMEA 2000, Ethernet, USB, and echosounder connections, and give the unit breathing room so heat can leave the console area.
Good cable habits matter in a wet, vibrating environment. Route cables with drip loops, keep connectors out of bilge splash zones, and avoid running data cables tight alongside high-current engine harnesses or radio transmission cables.
Electrical and system integration
The NMEA 2000 port is the usual path for sharing engine data, heading sensors, autopilot information, and other network instruments across the boat. Ethernet supports higher-bandwidth accessories and network sharing between compatible devices, and Wi-Fi can handle wireless integration and syncing where it makes sense at the helm.
If you are adding sonar, pair the unit with a transducer that matches your hull style and your typical depths. Keep in mind this listing is the display only, so transducer selection and mounting are handled separately.
What's included
- NSX ULTRAWIDE display unit
- Dash gasket
- Sun cover
- Power cable
- Fuse holder and fuse
- Rear mount kit
- Documentation pack
