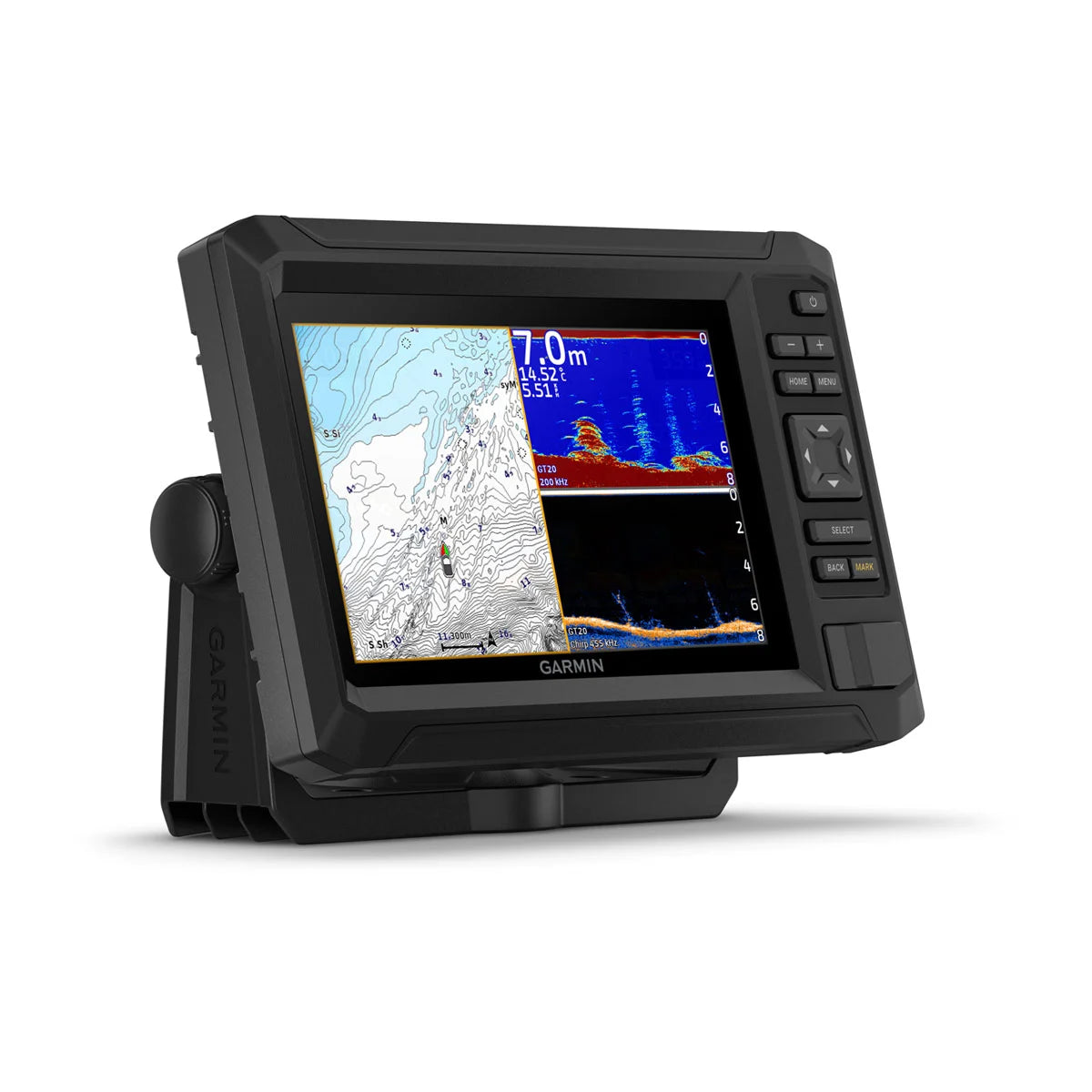

Garmin ECHOMAP UHD2 72cv Chartplotter Fishfinder, Keyed Control, Without Transducer, 7 in Display, Traditional CHIRP, ClearVü, 500 W, IPX7, Worldwide Basemap

Overview

The Garmin 010-02593-00 is an ECHOMAP UHD2 72cv 7-inch keyed chartplotter and fishfinder that ships without a transducer, so you can match it with the Garmin 4-pin transducer that fits your hull and the kind of water you run.

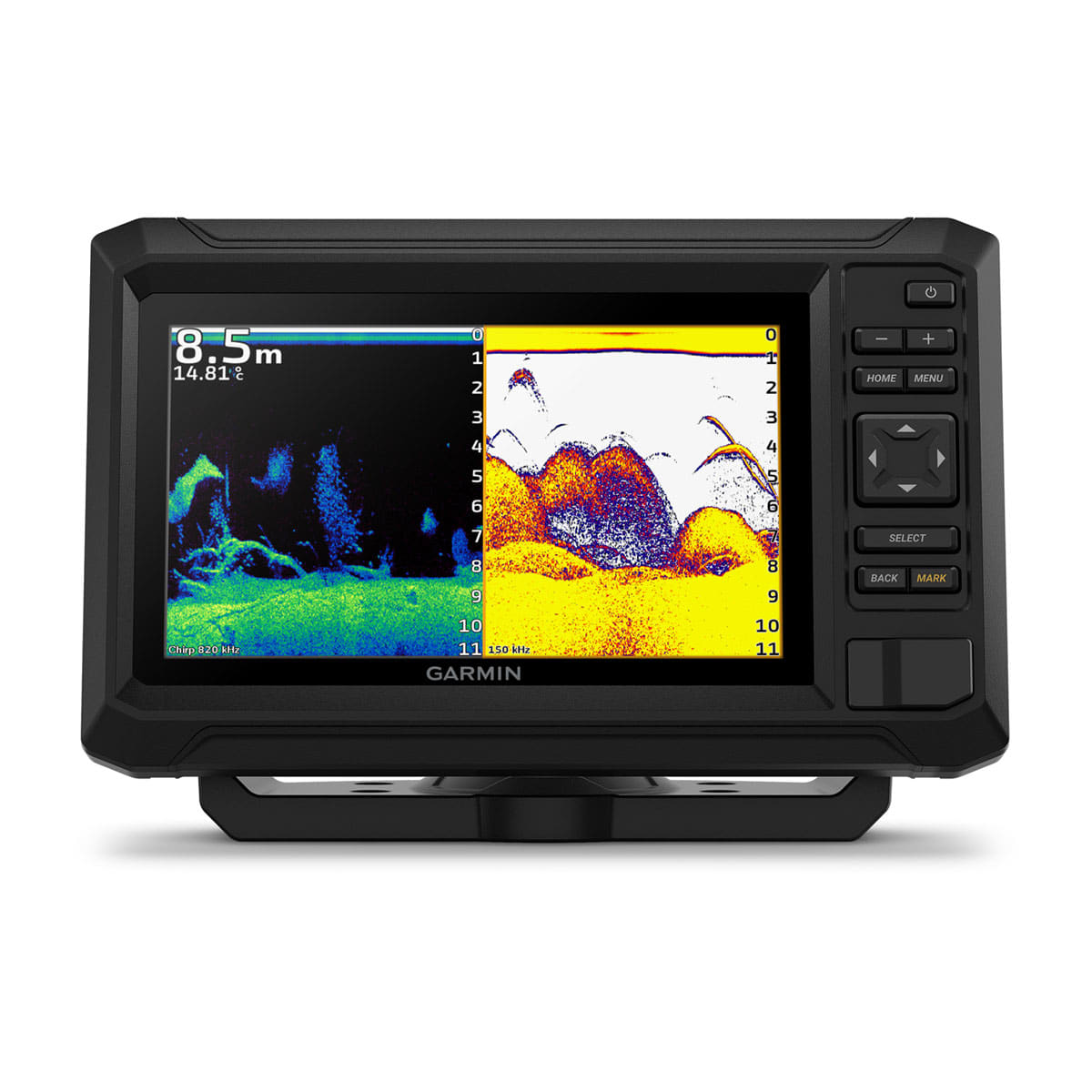

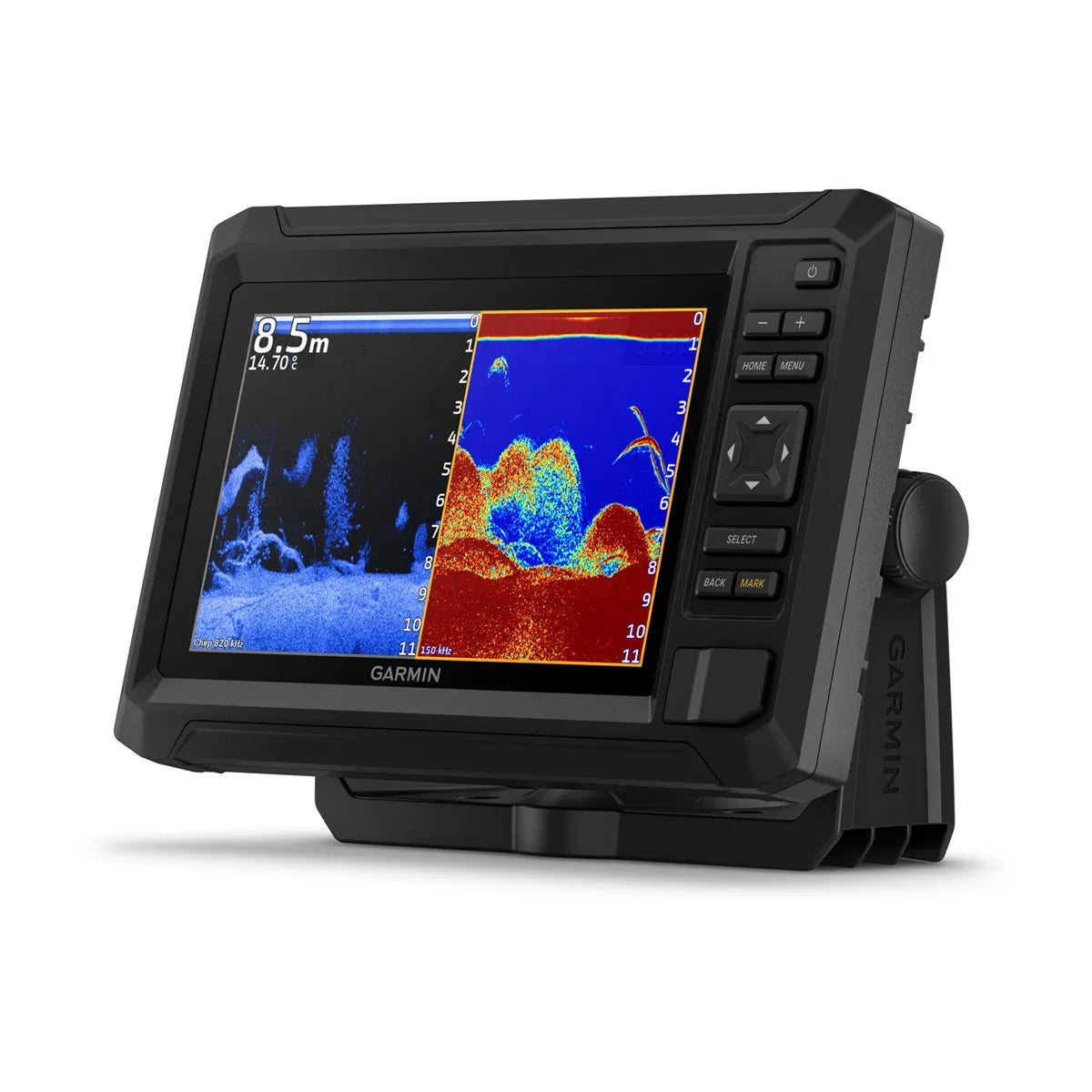

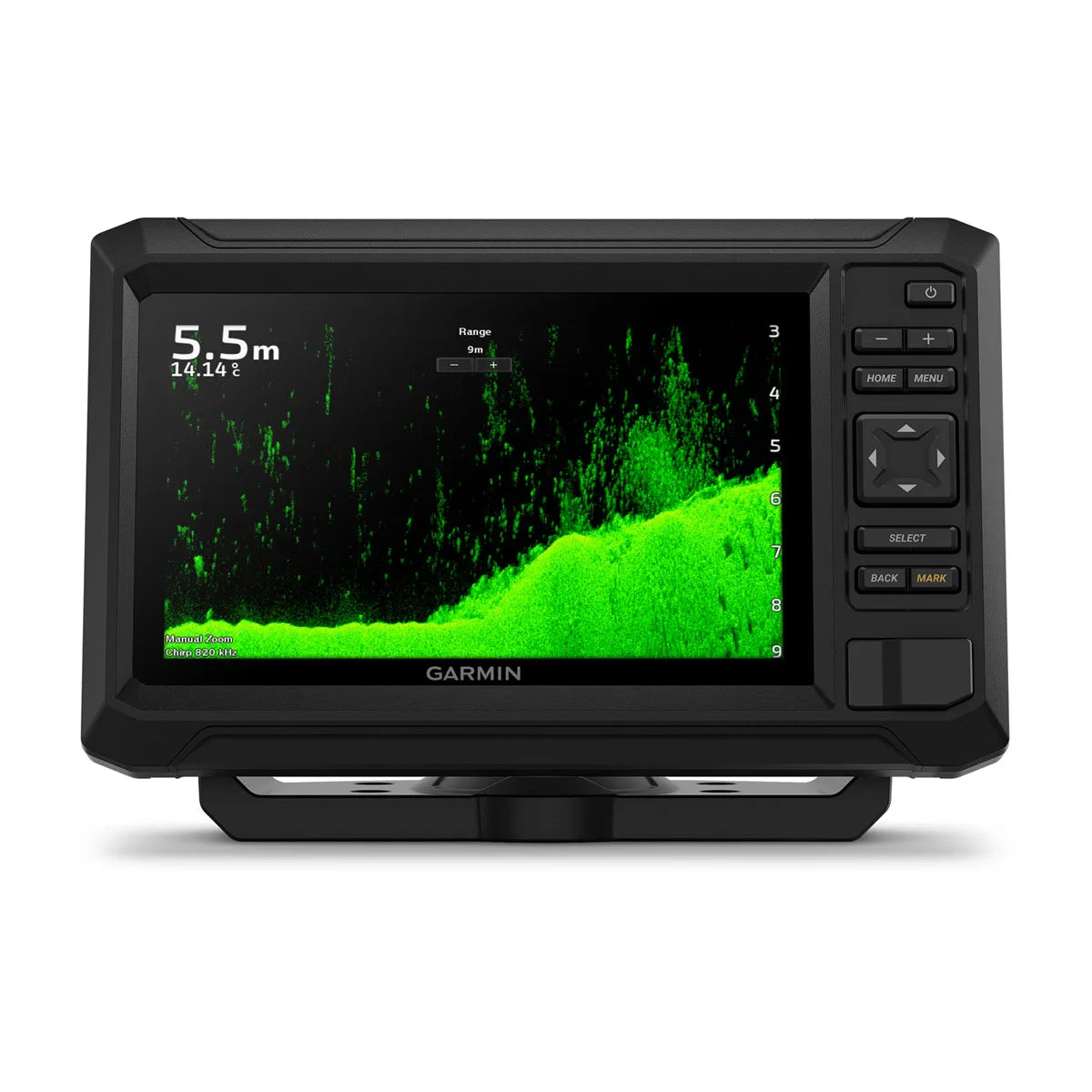

At the helm, it gives you a WVGA 800 x 480 display in an IPX7-rated housing for spray and routine washdowns, plus a 9 to 18 VDC power range that works well on most 12V boats. Sonar is built in with 500 W output, supporting single-channel CHIRP traditional (50/77/83/200 kHz plus L/M/H CHIRP) and ClearVü scanning (260/455/800/1000/1200 kHz) once a transducer is connected.

For navigation, it includes Garmin Navionics+ cartography and accepts one microSD card (up to 32 GB) for charts and data. A 5 Hz GPS and Galileo receiver keeps position updates smooth when you are running channels, setting up drifts, or tracking back to structure.

Key features

• 7-inch keyed WVGA display (800 x 480) in a 9.1 x 5.6 x 2.6 in housing
• IPX7 water rating for open-helm installs and rinse-down conditions
• 9 to 18 VDC power input; typical draw 1.0 A at 12 V (1.5 A max)
• Built-in 500 W sonar: single-channel CHIRP traditional plus ClearVü scanning (transducer required)

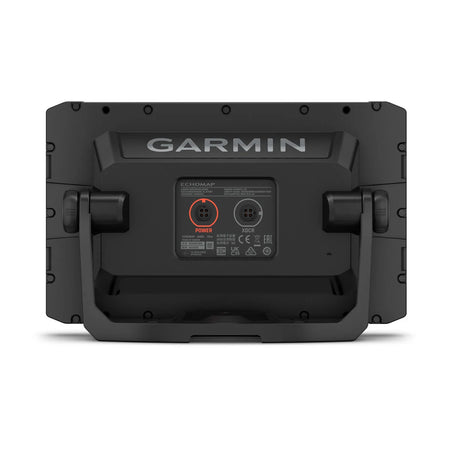

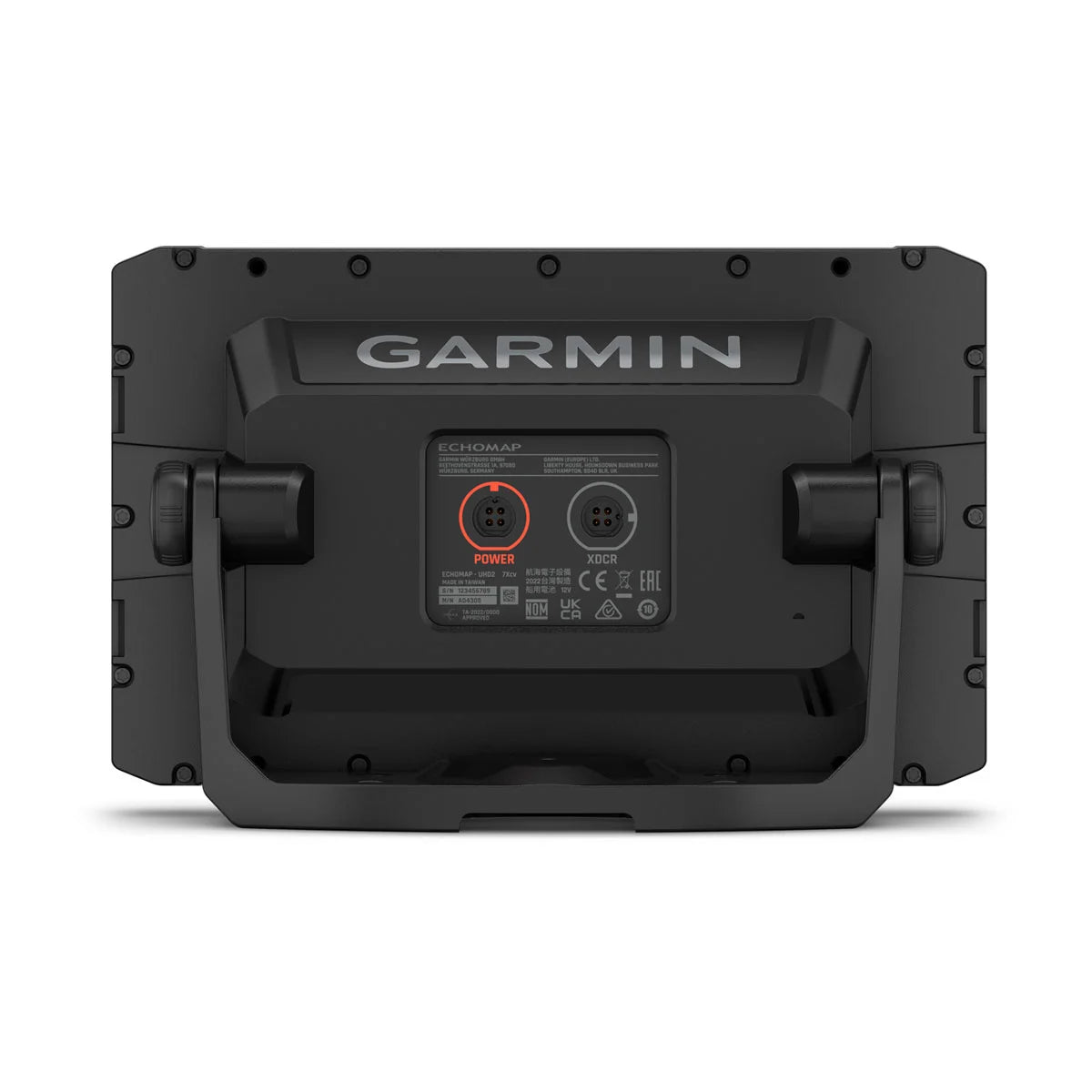

• One 4-pin transducer port and built-in Wi-Fi for local networking and app pairing
• Built-in Garmin Navionics+ Inland and Coastal mapping with a 1-year subscription to downloadable daily updates (coverage varies by region)
• Stores up to 5,000 waypoints, 50,000 track points, and 100 routes

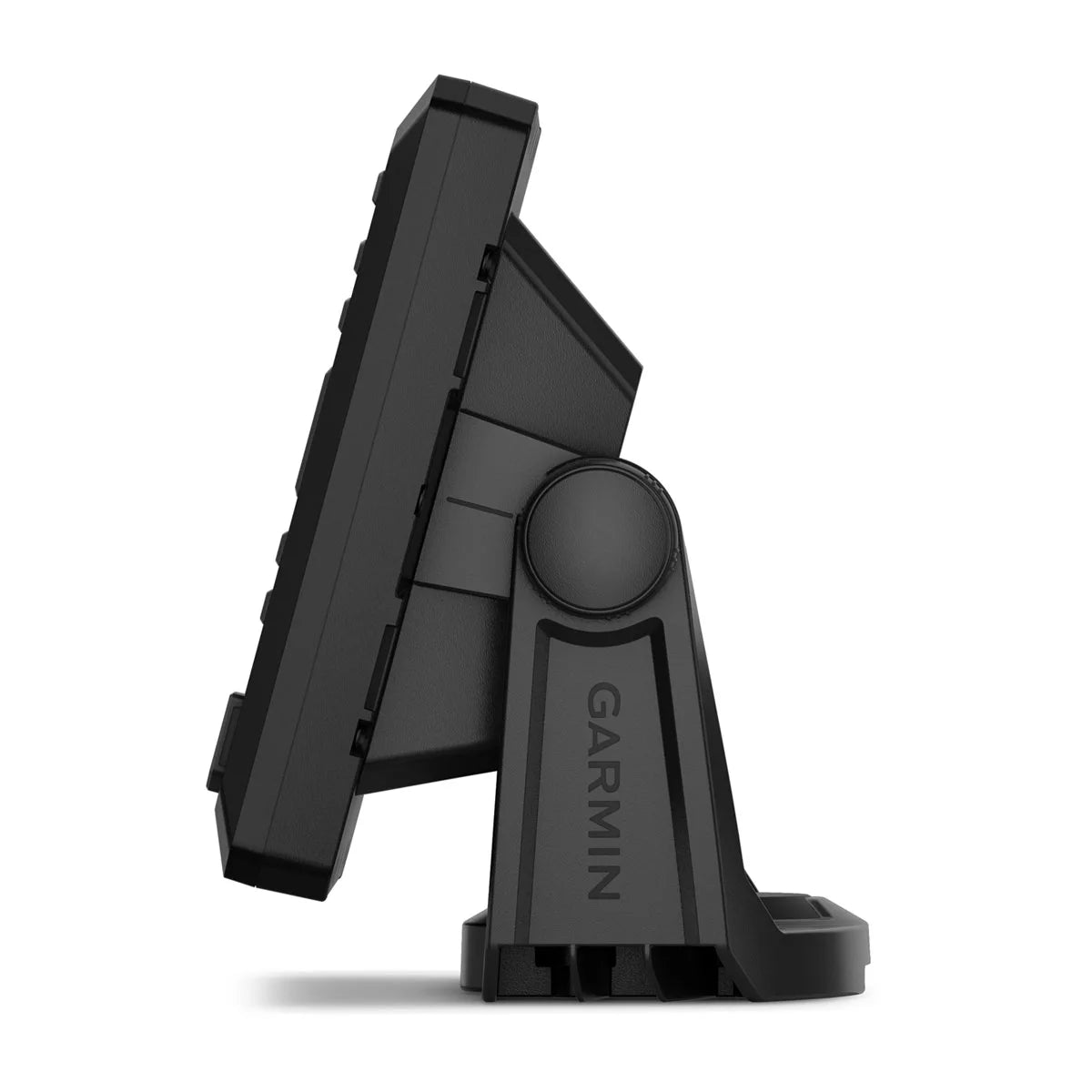

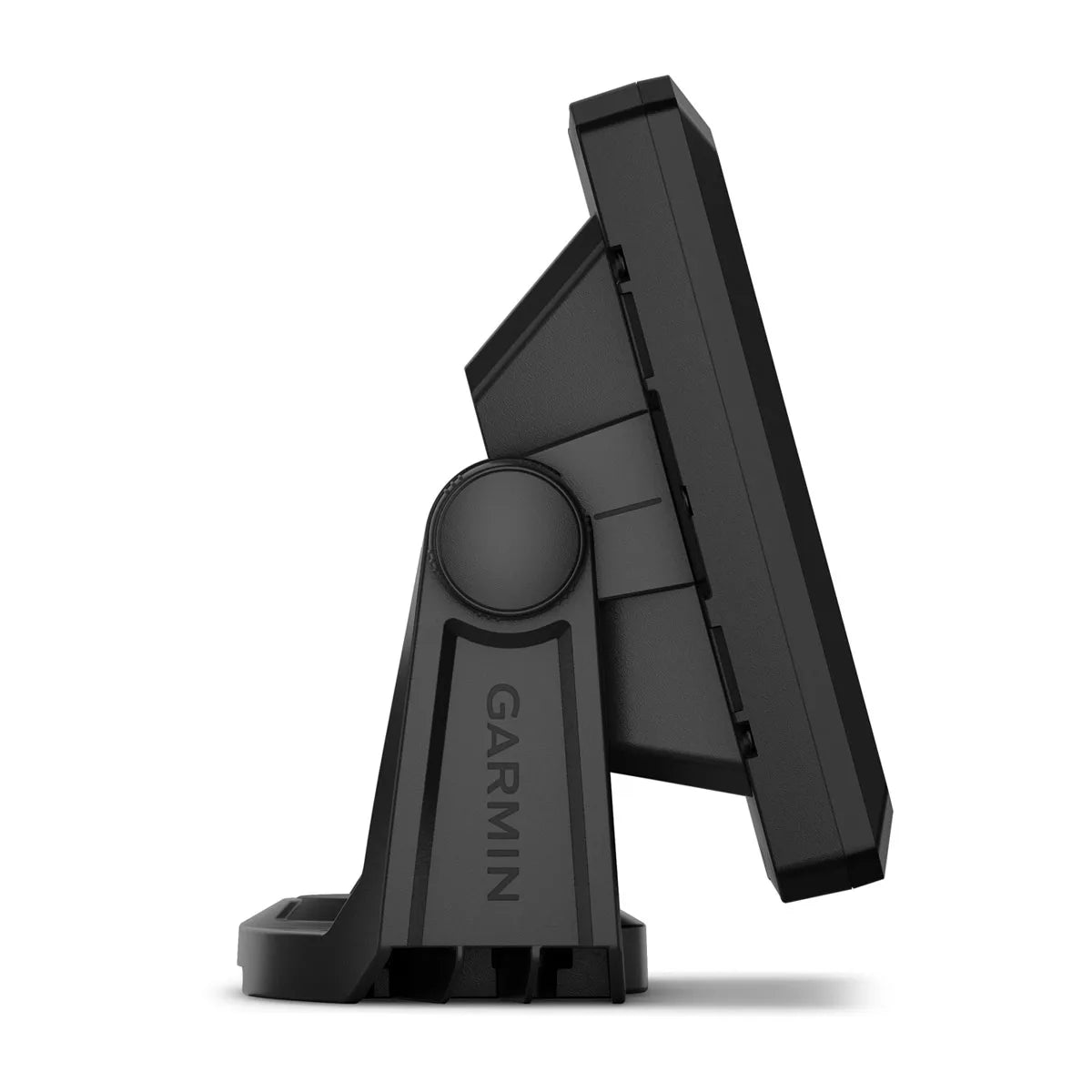

• Bail (tilt) or flush mounting options to suit a dash, console, or electronics box

Installation and setup

You can install it on the included tilt mount when you want a fast, service-friendly setup, or flush mount it for a cleaner dash. Leave enough room behind the unit for the power/data cable and the transducer lead to bend without kinking, and seal any cut edges if you are mounting in a fiberglass console.

Power is 9 to 18 VDC, so it fits typical marine DC systems. This model does not include a transducer, so plan your install around a Garmin 4-pin transducer choice and the cable routing from transom, trolling motor, or in-hull location to the helm.

Compatibility and system notes

Wi-Fi supports local networking with compatible chartplotters for sharing information such as sonar, waypoints, and routes. It can also pair with the ActiveCaptain mobile app for items like software updates, OneChart access, and Quickdraw Community data when your phone is on board.

For charts and file transfer, the unit accepts one microSD card up to 32 GB. If you are moving waypoints and routes from another system, a card is the simplest way to shuttle data between devices.

Use on board

This is a good fit when you want a 7-inch combo unit but already have a transducer in mind, or you are replacing an older display and plan to reuse an existing Garmin 4-pin transducer. The keyed interface also works well on smaller center consoles, bay boats, and runabouts where wet hands and a bouncing ride make buttons easier than a touchscreen.

What’s included

• ECHOMAP UHD2 72cv display unit
• Power/data cable
• Tilt mount
• Flush mount kit
• Mounting hardware
• Documentation
