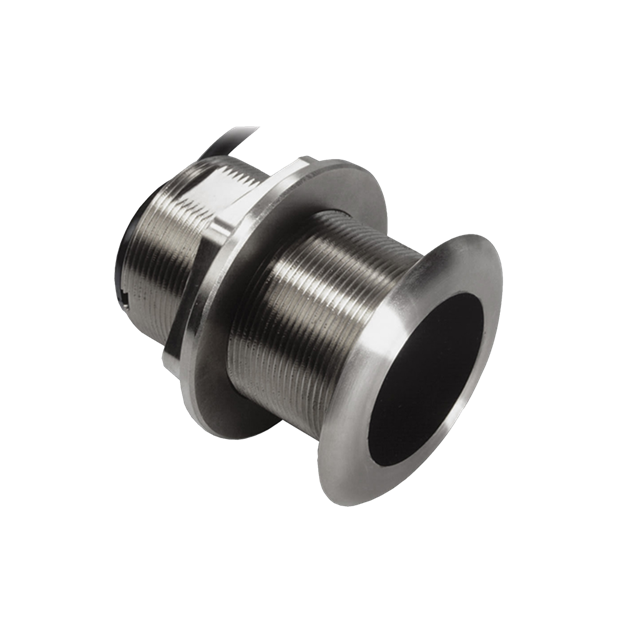

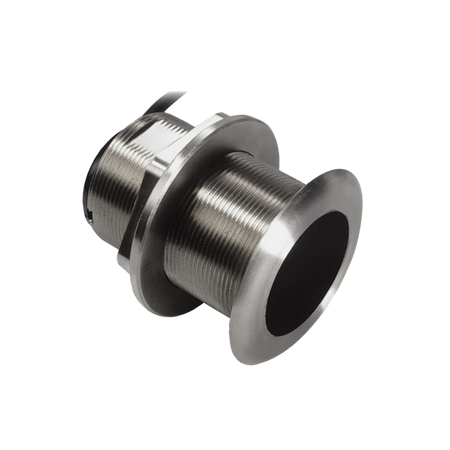

Simrad xSonic SS60 Thru-Hull Depth/Temp Transducer, 50/200 kHz, 600W, 12 Degree Tilt, 9-Pin

Overview

The Simrad 000-13785-001 is a stainless steel thru-hull transducer that reads depth and water temperature using a conventional 50/200 kHz element with a 12° tilted insert. It is rated at 600 W and uses a 10 m (33 ft) cable with a Navico 9-pin xSonic-style connector.

The tilt is meant for hull deadrise angles from 8° to 15° at the mounting location, helping keep the beam aimed straight down without a fairing block. The low-profile housing sits close to the hull and extends about 5 mm (3/16 in) outside the boat, and the body measures 84 mm in diameter by 95 mm overall height.

Key features

• Conventional dual-frequency sonar: 50 kHz with a 45° beam and 200 kHz with a 12° beam
• 600 W power rating for traditional 50/200 kHz sounders
• 12° tilted element for 8° to 15° hull deadrise at the install point
• Depth and water temperature sensing
• 10 m (33 ft) attached cable with Navico 9-pin xSonic-style connector
• Low-profile thru-hull body that extends about 5 mm (3/16 in) below the hull
• Stainless steel housing; compatible with all hull materials when installed correctly
• Hull cutout guidance: 60 mm (2-3/8 in) hole for fiberglass or wood; 70 mm (2-13/16 in) for metal hulls

Installation and setup

This is a below-the-waterline thru-hull install, so placement matters as much as the transducer itself. Plan for smooth water flow under the hull, keep it clear of strakes and intakes, and aim for a location that stays submerged across your normal running trim.

For the 12° model, align the arrow on the top of the housing toward the keel or centerline so the internal tilt matches the hull angle. Use marine sealant suitable for below-waterline fittings, route the cable away from ignition wiring and high-current runs when possible, and check for leaks shortly after launch.

Compatibility and fit

The connector is a Navico 9-pin xSonic-style plug used on many Simrad and related sonar-capable displays and sounder modules. Confirm your unit has a matching 9-pin transducer port, or plan for an adapter if your sounder uses a different connector style.

Check hull thickness at the mounting point before drilling. The usable shaft length is 68.5 mm (2.70 in), and metal-housed thru-hulls must be installed with proper isolation practices in metal hulls to reduce the risk of electrolytic corrosion.

Use cases on board

This transducer is a good match for boats that want a traditional 50/200 kHz depth sounder and dependable temperature readings without adding a fairing block. It is commonly used on smaller fishing and cruising boats where a low-profile thru-hull helps keep drag and spray down.

Maintenance and care

Keep the face clean for consistent sonar returns and avoid harsh solvents when washing around the transducer. In saltwater, a water-based antifouling coating on the transducer face is commonly used to slow marine growth, and the cable should not be used as a lifting or pulling point during service.
