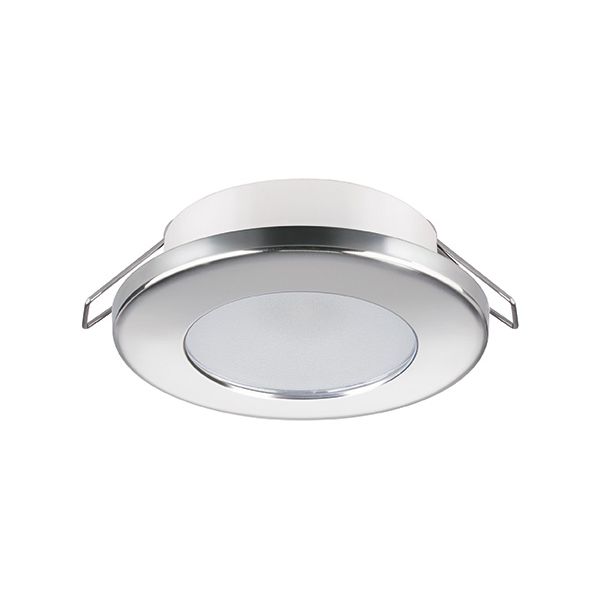

Quick Marine - Ted C LED Downlight - 2W, 10/30V

Introducing the Ted C - 2W - 100° Downlight

The Ted C - 2W - 100° is a meticulously crafted downlight designed for both ceiling and wall installations, offering a perfect blend of design and durability. Made from 316 AISI stainless steel, this downlight ensures unparalleled resilience, making it suitable for marine environments. Its anti-shock diffuser, constructed from satinized material, provides even light distribution while protecting against impact damage.

This modern downlight features a circular frame and offers a BI-COLOUR version, combining a 2W white light with a colored courtesy light. This versatile lighting arrangement allows you to create a personalized ambiance in your space.

The Ted C downlight comes with spike protection of ± 500V, safeguarding the LED's longevity against voltage fluctuations. It is also polarity-sensitive, emphasizing the importance of correct wiring for optimal performance. With a modest power consumption of 2W and a current consumption of 0.08A at 24V, this downlight is energy-efficient. It has a long life expectancy of 50,000 hours and is dimmable for brightness adjustment.

This compact and versatile downlight is ideal for various spaces. It has dimensions including a frame diameter of Ø 2 53/74", a recess of 5/8", and a hole diameter of Ø 2 1/8".

The Ted C - 2W - 100° is available in a range of light colors, including daylight, warm white, blue, and red. It also offers dual-color options such as daylight-blue, warm white-blue, daylight-red, and warm white-red. You can choose from finishes including Mirror Polished, Satin, and White 9010, with additional options of Black PVD and Gold PVD upon request. This wide selection of aesthetics allows you to match your style preferences.

For more demanding environments, the Ted C series extends to an IP66 version, providing enhanced resistance against dust and water ingress. Variations include the daylight light color with white, gold, satin, and stainless steel finishes. The warm white light color version is available in white, satin, gold, and stainless steel finishes. You can also find the red and blue light color variations with satin and stainless steel finishes. Combinations of warm white/blue light and warm white/red light with satin and stainless steel finishes are also available under the IP66 category. For a gentle warmth in your marine environment, the soft white light color with a gold finish is a perfect choice.

Whether you desire a simple white light, a warm white glow, a captivating red ambiance, or a tranquil blue tone, the Ted C - 2W - 100° downlight series has a variation to suit your preferences. With a multitude of finishes available, there is an option to complement every style. In essence, the Ted C - 2W - 100° downlight embodies versatility and durability, making it the perfect choice for marine environments.

Highlights:

• Meticulously crafted downlight for ceiling and wall installations
• Durable 316 AISI stainless steel construction
• Anti-shock diffuser for even light spread and impact protection
• BI-COLOUR version with 2W white light and colored courtesy light
• Spike protection of ± 500V for LED longevity
• Polarity -sensitive design for optimal performance
• Low power consumption of 2W
• Dimmable for brightness adjustment
• Compact and versatile with IP40/ IP66 security degree
• Available in various light colors and finishes
• IP66 version with enhanced resistance for demanding environments
• Wide range of options for aesthetics and style preferences

• 1257782_qbp035359.pdf
