Lumitec Composite Surface-Mount Starboard Green Nav Light, 10-30V, 2NM
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

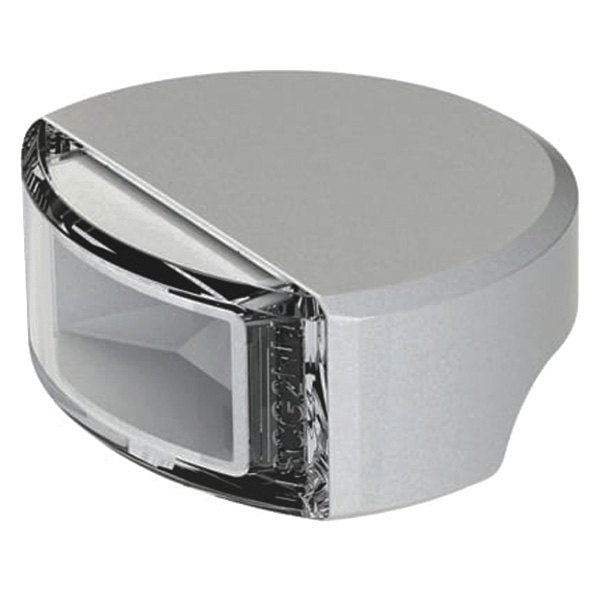

The Lumitec 101597 is a navigation light with starboard (green) output that runs on 10 to 30 VDC and meets USCG requirements for 2 nautical mile visibility. It also meets ABYC A-16 navigation lighting standards.

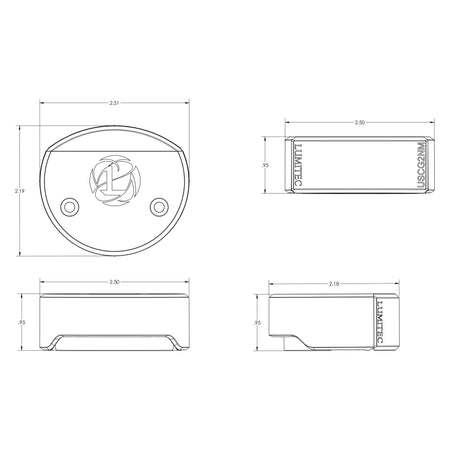

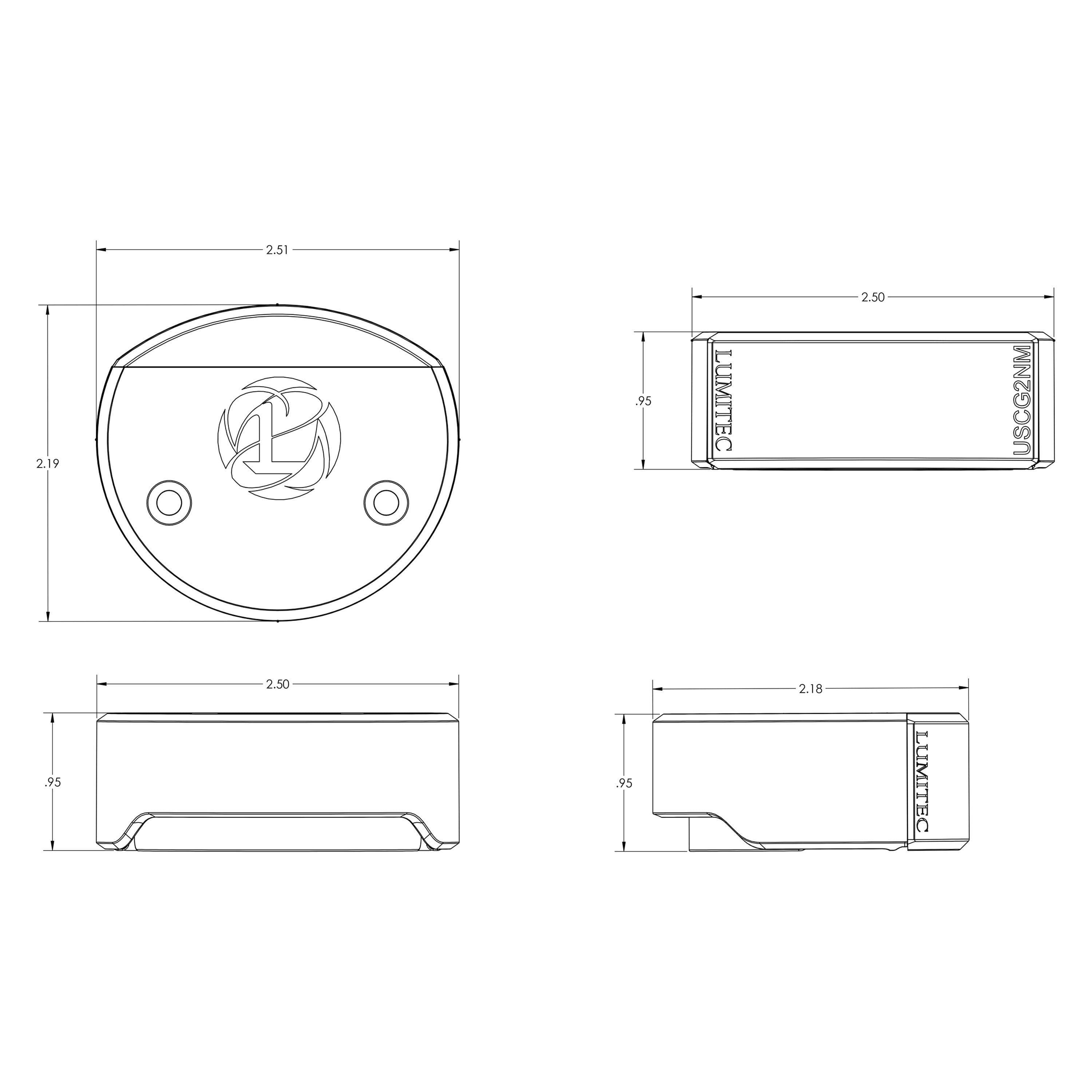

This is the composite, surface-mount style meant for horizontal mounting surfaces when you do not have a molded-in recess. It measures about 2.51 in wide by 2.19 in tall and stands about 0.95 in off the surface, which helps it fit cleanly on a bow cap, gunwale, or hardtop edge.
Install it on the starboard side near the bow and keep the lens clear of obstructions so the required sector is not blocked by rails, the hull, deck structures, or onboard hardware under normal running trim.
Key features
- Starboard green sidelight output for a standard running-light setup
- Meets USCG requirements for 2 nautical mile visibility
- Accepts 10 to 30 VDC for 12 V and 24 V electrical systems
- Composite, surface-mount body suited to horizontal mounting locations
- Compact size: about 2.51 in x 2.19 in overall, about 0.95 in tall
- Meets ABYC A-16 navigation lighting standards
Installation and setup
Use the orientation template to keep the starboard unit aligned correctly on the vessel, then pre-drill for #6 tapping screws. Route the power wire through the wire exit hole and seal around the cable with a marine sealant to help keep spray out.
Feed the light from a fused navigation-light circuit and verify the light is not shaded by fixed structures or gear once the boat is loaded and trimmed the way you normally run.
Who it fits
This light is a practical choice for boats that need a low-profile sidelight on a flat mounting surface and operate on a 12 V or 24 V DC system.
