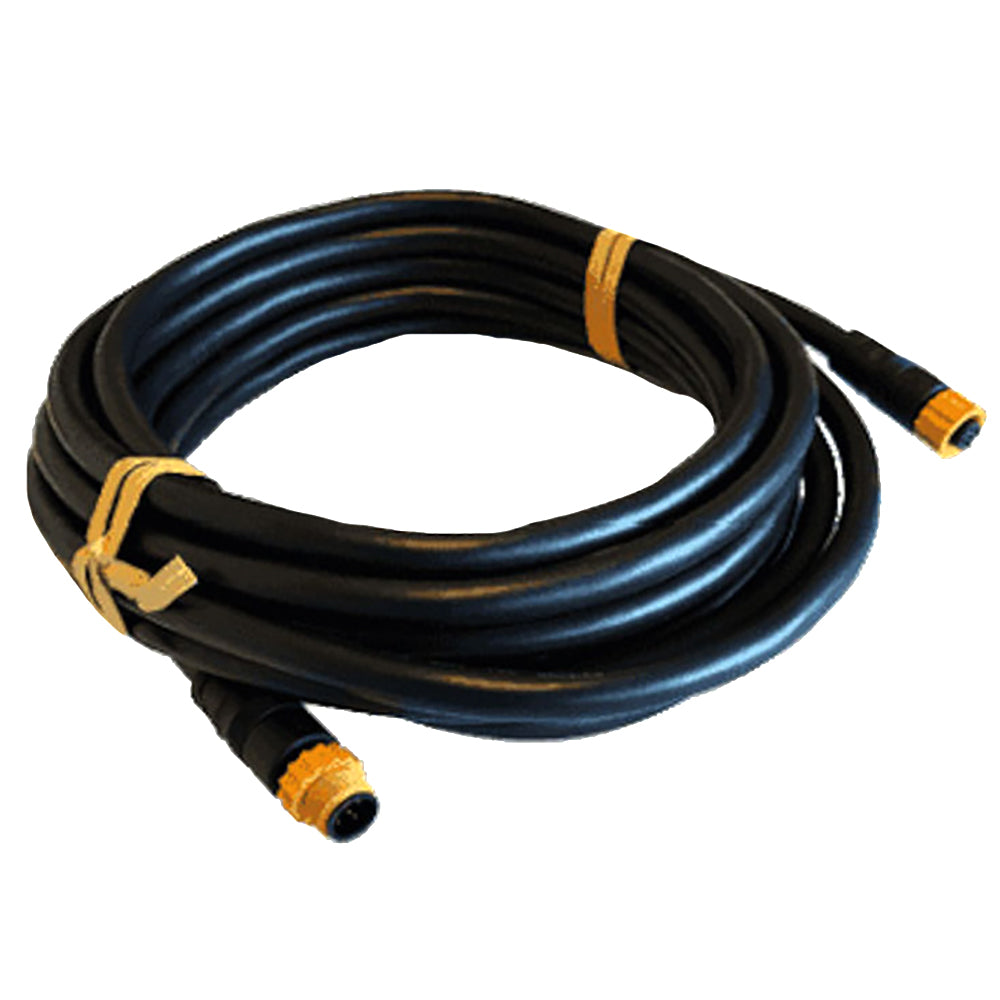

Simrad N2KEXT NMEA 2000 Micro-C Medium Duty Cable, 20 m, 18 AWG
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Simrad 000-14379-001 is a 20 m (65.6 ft) NMEA 2000 Micro-C medium duty network cable with low-loss 18-gauge conductors for backbone runs.
It is used to link sections of an NMEA 2000 backbone between T-connectors or other backbone components when you need the reach for a longer run across the boat. The orange locking collars make the cable easy to spot during installation and help keep connections secure when the boat is vibrating underway.
This cable is a good match for larger center consoles, cruisers, and sailboats where the network needs to run from a helm station to an engine room, flybridge, or other remote electronics location without piecing together multiple shorter cables.
Key features
- 20 m (65.6 ft) length for long NMEA 2000 backbone spans
- Low-loss 18-gauge conductors suited to backbone runs where cable losses matter
- Micro-C NMEA 2000 connectors for standard Micro-C network hardware
- Orange locking collars for quick identification and secure hand-tight connections
- Useful for extending an existing backbone between network junctions across the vessel
Compatibility and fit
Fits NMEA 2000 networks that use Micro-C connectors. If your boat has a different connector style on the backbone, plan on the correct adapter or matching hardware so the connection stays standard end to end.
Because this is a long cable, it is typically used as part of the backbone rather than as a device lead. Keep the rest of the network layout consistent with normal NMEA 2000 practice, including proper network power and termination at the ends of the backbone.
Installation and setup
Route the cable with gentle bends and add strain relief near connectors so the plug is not carrying the weight of the run. Leave enough slack at each end to service T-connectors or backbone fittings later without pulling on the connection.
When mating Micro-C connectors, align the pins carefully and tighten the collars by hand until snug. After the network is assembled, power up and confirm that every device appears on the NMEA 2000 bus before closing up panels and tying off the final cable runs.
Use on board
Common installs include running the NMEA 2000 backbone from helm electronics to the engine room for engine gateways, to a flybridge, or to a nav station on a sailboat. It also helps when adding a new group of instruments or sensors a long distance from the existing backbone without reworking the whole network.
