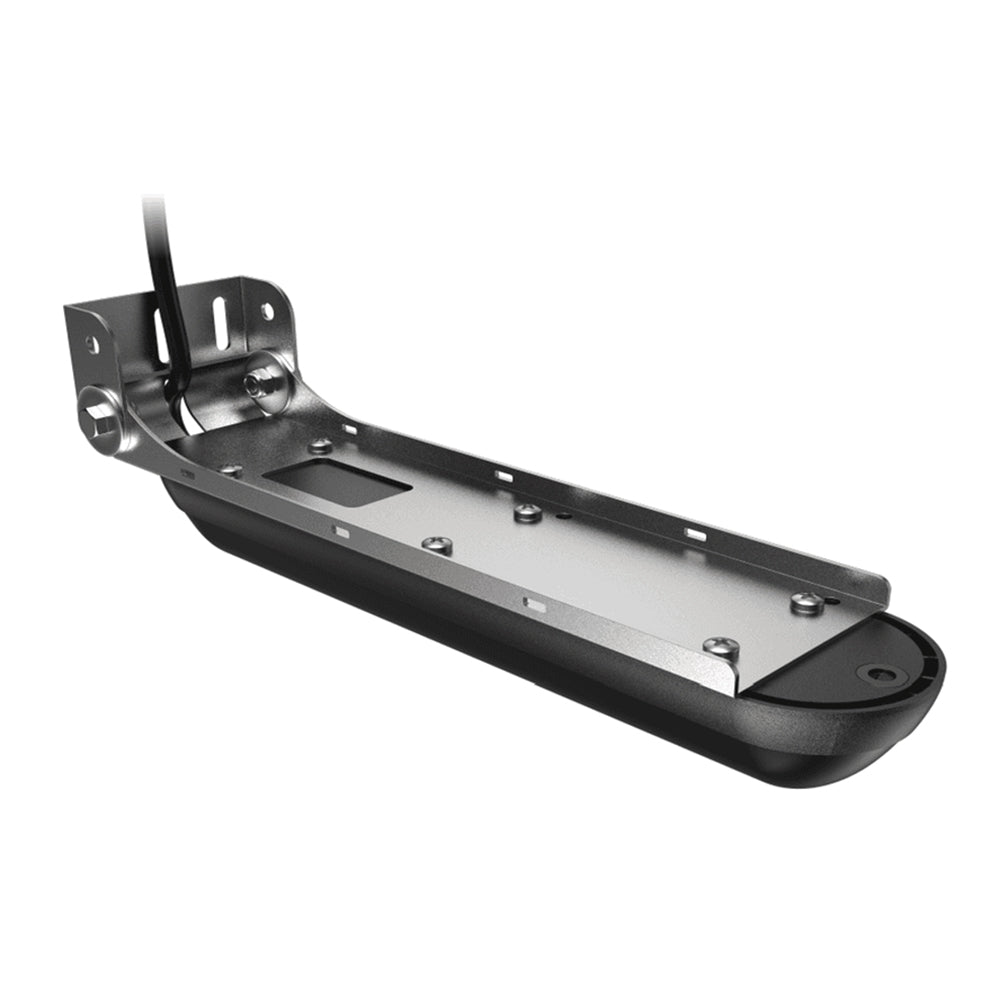

Lowrance - Active Imaging 3-in-1 Transom Mount Transducer

Delve Deeper into the Abyss with Active Imaging 3-in-1 Transom Mount Transducer

Uncover the mysteries beneath your boat with the superior technology of Active Imaging™ 3-in-1 sonar. Witness the marvels of the deep with unparalleled CHIRP, SideScan and DownScan capabilities featured in this Transom Mount Transducer. The extraordinary clarity, remarkable target separation and fine-tuned detail of Active Imaging ensures an enhanced fishing expedition by aiding in the swift identification of fish-inhabiting structures such as rock formations, timber stands, weedbeds, trenches and drop-offs, all from an impressive distance off your boat. The exclusive FishReveal™ Smart Target view synergizes the excellence of CHIRP sonar and DownScan on a single screen, simplifying fish recognition amidst structure and cover on highly detailed DownScan images.

Unfold the Technical Marvels

Indulge in a blend of innovation and performance as you explore the key features of this Transom Mount Transducer:

• Experience a zenith of refined detail and superior range unprecedented in imaging technology.
• Active Imaging 3-in-1 transducer embodies Lowrance CHIRP, SideScan and DownScan.
• Unveil FishReveal™ Smart Target View for effortless target identification.
• Supports Medium and High CHIRP (83/200kHz) plus 455/800kHz frequencies.
• Compatibility stretches across Lowrance HDS LIVE, HDS Carbon, Elite Ti2 and Simrad NSS evo3 and GO series displays.

Embrace the Environmental Robustness

Thrive in extreme conditions with a hearty operating temperature range of -15°C to +55°C (+5°F to +131°F) and a storage temperature stretch of -30°C to +70°C (-22°F to +158°F).

Experience the Physical Virtuosity

Featuring a cable length of 7.6 m (25 ft), this Transom Mount Transducer offers versatile mounting options including transom, flush step, and jackplate mounting, all connected through a 9-pin connector.

Dive into Transducer Proficiency

The transducer’s prowess shines through with outputs for Traditional, SideScan imaging, DownScan imaging and temperature monitoring. Frequencies span across Traditional: 200 kHz/High Chirp, 83 kHz/Medium Chirp, SideScan: 455 kHz, and 800 kHz. The maximum depth reaches 305 m (1000 ft) at 200 kHz/High Chirp and 83 kHz/Medium Chirp; DownScan: 91 m (300 ft); SideScan: 91 m (300 ft) side range at 455 kHz, and 46 m (150 ft). Navigate at a cruising speed of 48 knots (55 mph) with Traditional mode and 9 knots (10 mph) for DownScan and SideScan.

Captivating Highlights

• Outstanding clarity, target separation and intricate detail.
• Exclusive FishReveal™ Smart Target View eases fish recognition.
• Wide compatibility across multiple display series.
• Resilience in challenging environmental conditions.
• Versatile mounting options.
